Запчасти John Deere 90 11 - SEAT COUNTERBALANCE REEL 70 - GRILLE, HOOD, FENDERS, BUMPER AND SEAT

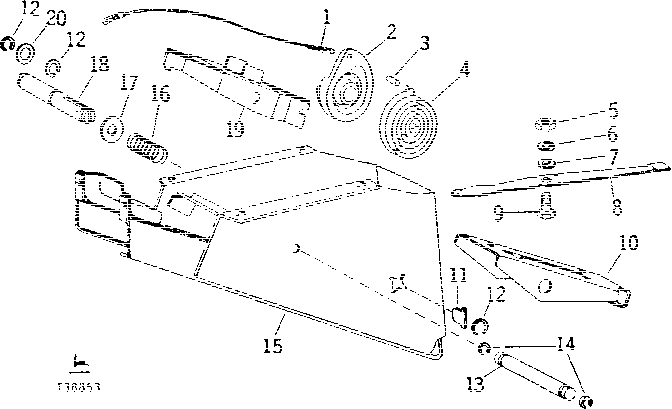

Схема запчастей John Deere 90 - 11 - SEAT COUNTERBALANCE REEL 70 - GRILLE, HOOD, FENDERS, BUMPER AND SEAT

Артикул

Название

Примечание

Количество

1

AR26403

CABLE

1шт.

2

R26432

REEL

1шт.

3

34H282

SPRING PIN

3/16" X 1"

1шт.

4

R26433

SPRING

1шт.

5

14H786

NUT

1/4"

1шт.

6

12H302

LOCK WASHER

1/4"

1шт.

7

24H1287

WASHER

9/32" X 5/8" X 0.065"

1шт.

8

R27439

LEVER

SEAT POSITIONING SELECTOR

1шт.

9

KV14483

SCREW

(SUB FOR R26431)

1шт.

10

R26830

HANDLE

1шт.

11

R26434

LATCH

1шт.

12

R73380

SNAP RING

(SUB FOR A369R)

3шт.

13

R26829

PIN FASTENER

1шт.

14

R26871

SNAP RING

(SUB FOR P44982)

2шт.

15

AR68728

SUPPORT

WITH RAILS, (SUB FOR AR65883 AND AR36047) (ALSO ORDER R73380, R57572, (2) 19H2705, (2) 24H1384 AND (2) 28H90)

1шт.

16

A4744R

SPRING

1шт.

17

24H1395

WASHER

25/32" X 1-7/16" X 0.060"

1шт.

18

R57572

PIN FASTENER

(SUB FOR R26874, THIS APPLICATION) (ALSO ORDER R73380 AND (2) 24H1384) (SUB R56064)

1шт.

19

R26828

LATCH

1шт.

20

24H1384

WASHER

49/64" X 1-1/16" X 0.036"

2шт.

Выбрано товаров: 20
