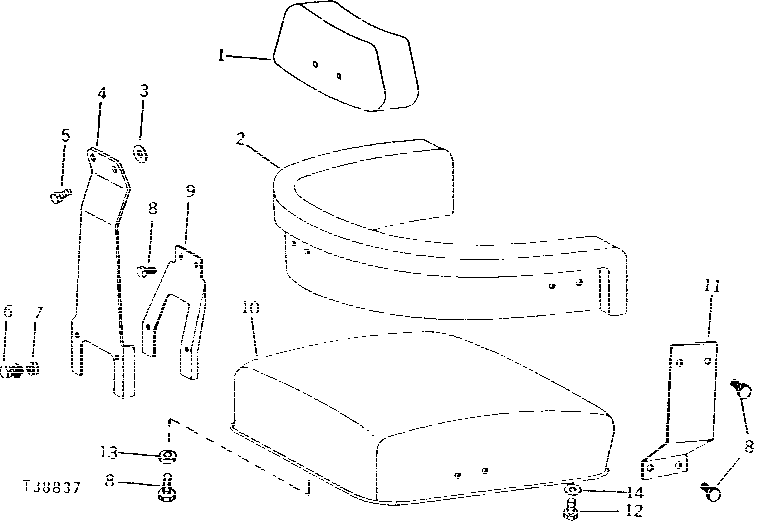

Запчасти John Deere 90 9 - SEAT CUSHION 70 - GRILLE, HOOD, FENDERS, BUMPER AND SEAT

1

T55118

SEAT BACK

(SUB FOR R34271) BACK, SEAT, UPPER

1шт.

2

T55117

SEAT BACK

(SUB FOR R34270)

1шт.

3

24H448

WASHER

25/32" X 1-1/8" X 0.090", (SUB FOR R27627, THIS APPLICATION)

2шт.

4

R34272

SUPPORT

UPPER, BACK, SEAT

1шт.

5

19H1813

CAP SCREW

5/16" X 5/8"

2шт.

6

19H2705

CAP SCREW

5/16" X 1"

2шт.

12H303

LOCK WASHER

5/16"

2шт.

7

14H785

NUT

5/16"

2шт.

8

19H1813

CAP SCREW

5/16" X 5/8"

12шт.

9

R27785

SUPPORT

REAR, BACK, SEAT

1шт.

10

T55116

CUSHION

(SUB FOR R34269) SEAT

1шт.

11

R31512

SUPPORT

SEAT BACK, FRONT, R.H

1шт.

R31513

SUPPORT

SEAT BACK, FRONT, L.H

1шт.

12

19H1905

CAP SCREW

5/16" X 1"

2шт.

13

24H1621

WASHER

11/32" X 1" X 0.220"

2шт.

14

28H90

BUSHING

1/4" X 7/16"

2шт.
