Заказать запчасти

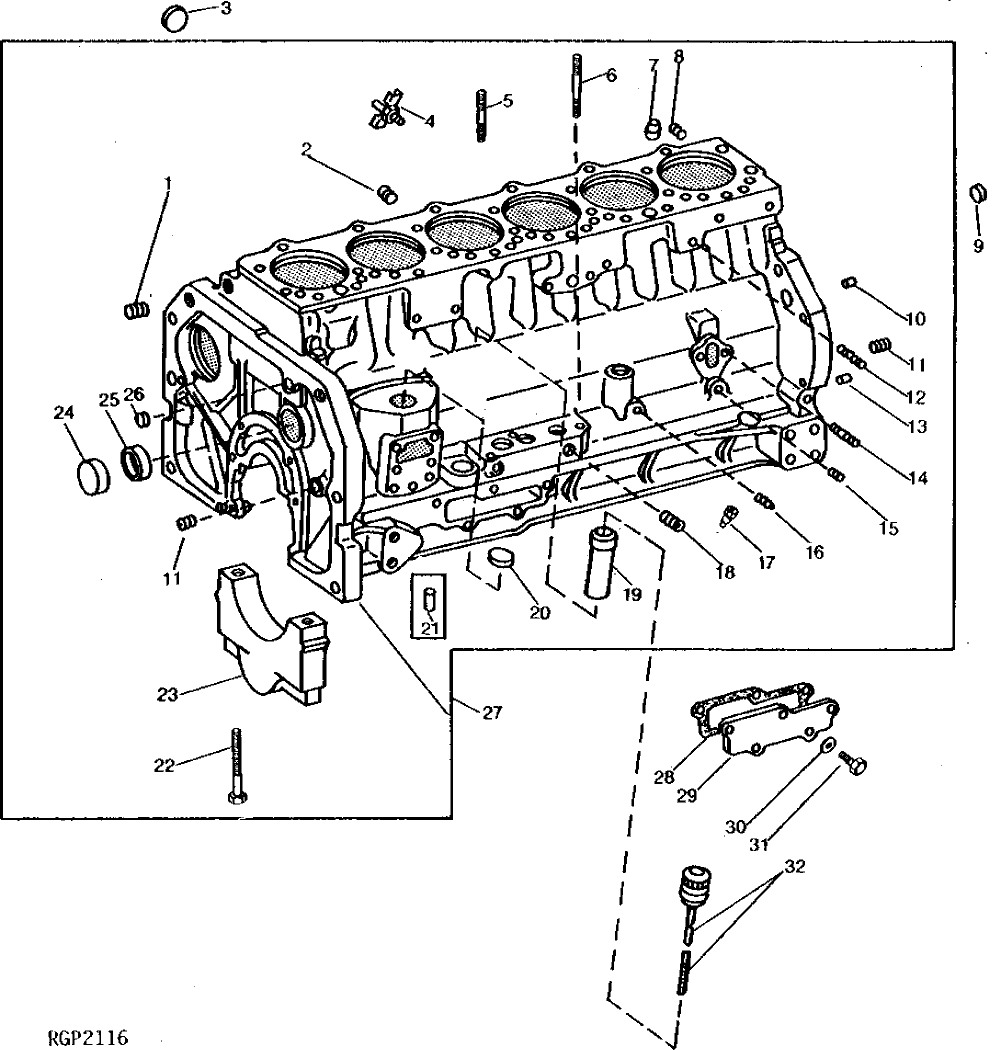

Запчасти John Deere 90 1A - CYLINDER BLOCK AND DIPSTICK 10 - ENGINE
№
Артикул
Название
Примечание
Количество
1
15H665
PIPE PLUG
3/4", (SUB FOR AR72318)
1шт.
15H562
PIPE PLUG
1", (SUB FOR AR78522)
1шт.
2
15H690
PIPE PLUG
3/4", (SUB FOR AR78522)
2шт.
3
AR80294
PLUG
(WITHOUT ENGINE COOLANT HEATER) (SUB FOR R47092)
1шт.
4
AR44382
DRAIN VALVE
3/8"
1шт.
AT13740
DRAIN VALVE
1/4"
1шт.
5
R32042
STUD
1шт.
6
R106859
STUD
(SUB FOR F3646R OR R26622, THIS APPLICATION)
1шт.
7
R42340
BUSHING
2шт.
8
15H666
PIPE PLUG
1шт.
9
R45740
PLUG
1шт.
10
R1612R
DOWEL PIN
2шт.
11
RE57836
PIPE PLUG
1/2", (SUB FOR AR72319 OR 15H624)
2шт.
12
K3083R
STUD
7/16" X 1-3/4"
2шт.
13
F1743R
DOWEL PIN
2шт.
14
R48755
STUD
5/16" X 1-1/2", (SUB FOR R26934)
2шт.
15
R104592
PIPE PLUG
(SUB FOR R21630, THIS APPLICATION)
4шт.
16
R104592
PIPE PLUG
1шт.
17
R43621
ORIFICE
6шт.
18
15H666
PIPE PLUG
3/8"
1шт.
19
R41070
TUBE
1шт.
20
30H25
PLUG
2"
1шт.
21
DOWEL PIN
(NO LONGER REQUIRED)
1шт.
22
T15539
BOLT
14шт.
23
R57158
BEARING CAP
(MAIN)
6шт.
R57159
BEARING CAP
(MAIN THRUST)
1шт.
25
R46903
BUSHING
4шт.
26
R43634
DOWEL PIN
1шт.
27
AR43496
CYLINDER BLOCK
(MARKED R43310) (NO LONGER AVAILABLE)
1шт.
AR50297
CYLINDER BLOCK
(MARKED R45980) (NO LONGER AVAILABLE)
1шт.
AR52061
CYLINDER BLOCK
(MARKED R47020)
1шт.
28
R520530
GASKET
(SUB FOR R43442 OR R45968)
1шт.
29
R43441
COVER
1шт.
30
12H304
LOCK WASHER
3/8"
5шт.
31
19H2284
CAP SCREW
3/8" X 7/8"
5шт.
32
AR52563
DIPSTICK
(SUB FOR AR52624)
1шт.
AR53998
DIPSTICK
(SUB FOR AR53997)
1шт.
RE13551
SHORT BLOCK ASSEMBLY
(A) (MARKED R43310 OR R45890) (SUB FOR AR50292 OR AR46061) (SUB SE500609, THIS APPLICATION)
1шт.
SE500609
SHORT BLOCK ASSEMBLY
(REMANUFACTURED FOR RE13551)(1-800-537-3626)
1шт.
RE13552
SHORT BLOCK ASSEMBLY
(A) (MARKED R47020) (SUB FOR AR53092) (SUB SE500608, THIS APPLICATION)
1шт.
SE500608
SHORT BLOCK ASSEMBLY
(SUB FOR RE13552, RE53476 OR RE70108) (REMANUFACTURED FOR RE13552)(1-800-537-3626)
1шт.
Выбрано товаров: 42
