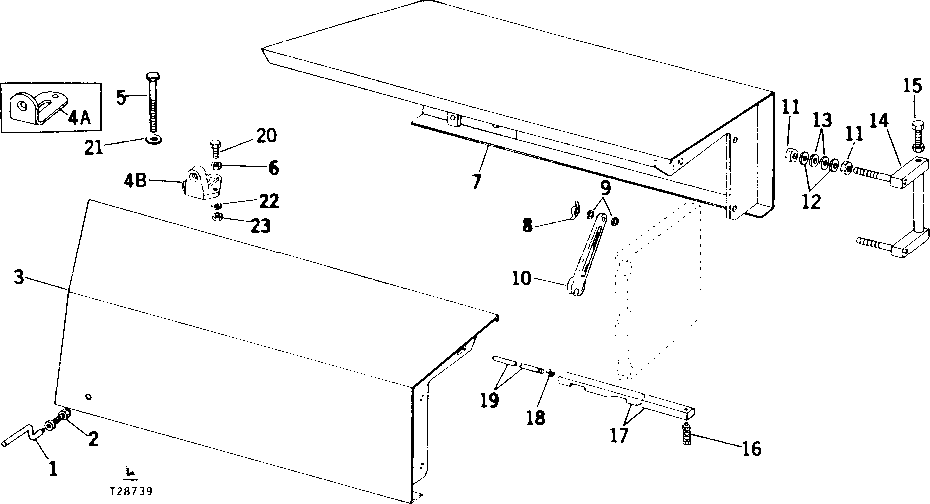

Запчасти John Deere 90 5 - FENDERS 70 - GRILLE, HOOD, FENDERS, BUMPER AND SEAT

1

U45184

HANDLE

BACK, SEAT,UPPER

1шт.

2

19H3276

SCREW

SOCKET-HEAD 5/8" X 3-1/2"

2шт.

14H821

NUT

5/8"

4шт.

3

AU43164

FENDER

R.H

1шт.

4A

AU43950

ANGLE

(SUB T40490)

1шт.

4B

T40490

ANGLE

2шт.

5

08H4086

CAP SCREW

5/8" X 6-3/4"

2шт.

14H1039

NUT

5/8"

2шт.

6

14H732

NUT

3/8"

6шт.

7

AU43165

FENDER

L.H

1шт.

8

14H1029

WING NUT

1/2"

1шт.

9

24H1788

WASHER

17/32" X 1-1/8" X 0.060"

2шт.

10

U46524

WRENCH

TRACK-ADJUSTING

1шт.

11

14H836

NUT

7/8"

8шт.

12

12H245

LOCK WASHER

7/8"

8шт.

13

24H1436

WASHER

15/16" X 1-3/4" X 0.134"

8шт.

14

AU43166

HINGE

2шт.

15

19H1861

CAP SCREW

7/8" X 2-1/2"

4шт.

14H830

NUT

7/8"

4шт.

16

19H3057

CAP SCREW

1/2" X 2-3/4"

2шт.

T22381

WASHER

RUBBER

2шт.

24H1226

WASHER

1/2" X 1-1/4" X 0.083"

2шт.

14H826

NUT

1/2"

2шт.

17

U45182

STOP

2шт.

18

14H732

NUT

3/8"

2шт.

19

U45185

STUD

1шт.

20

19H2471

CAP SCREW

3/8" X 1-1/2"

6шт.

21

24H1698

WASHER

21/32" X 1-5/8" X 1/4"

4шт.

22

12H294

LOCK WASHER

5/8"

2шт.

23

14H1039

NUT

5/8"

2шт.
