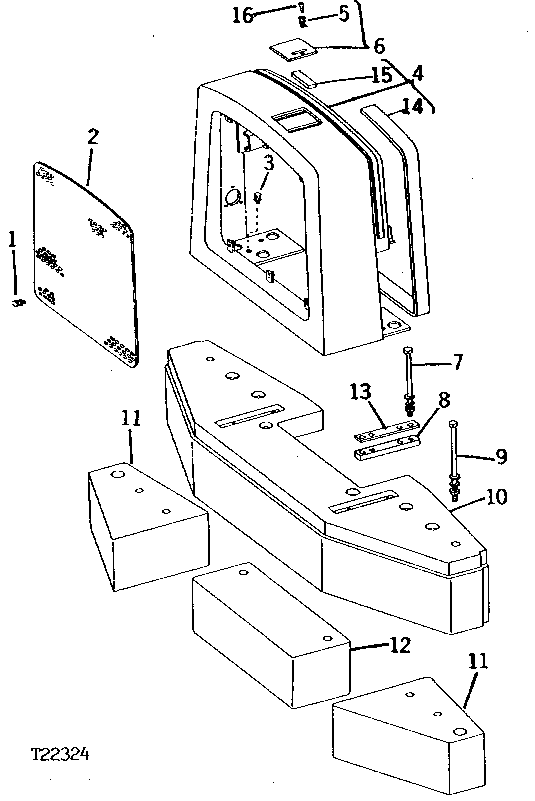

Запчасти John Deere 90 1 - GRILLE AND REAR BUMPER 70 - GRILLE, HOOD, FENDERS, BUMPER AND SEAT

1

19H1648

CAP SCREW

3/8" X 3/4"

6шт.

24H1307

WASHER

13/32" X 1" X 1/16"

3шт.

2

U45337

GRILLE

(SUB T35826)

1шт.

GRILLE

( T35826 NO LONGER AVAILABLE)

1шт.

3

19H1833

CAP SCREW

5/8" X 1-1/4"

4шт.

24H1368

WASHER

21/32" X 1-5/16" X 0.090"

4шт.

4

HOUSING

( AU43201 NO LONGER AVAILABLE)

1шт.

HOUSING

( AT34799 NO LONGER AVAILABLE)

1шт.

5

AU43731

LOCK

(WITHOUT KEY)

1шт.

6

AT38818

COVER

RADIATOR CAP WITH LOCK, (SUB FOR AU43205, THIS APPLICATION)

1шт.

7

08H4645

CAP SCREW

3/4" X 12-1/2"

4шт.

12H236

LOCK WASHER

3/4"

4шт.

24H1400

WASHER

25/32" X 1-5/8" X 1/4"

8шт.

14H794

NUT

3/4"

4шт.

8

U45290

STRAP

4шт.

9

08H4492

CAP SCREW

3/4" X 15-1/2", ( K33506 AND 08H4492 NO LONGER AVAILABLE) (SUB FOR K33506)

9шт.

U10104

BUSHING

18шт.

12H236

LOCK WASHER

3/4"

9шт.

14H794

NUT

3/4"

9шт.

10

U45246

BUMPER

(SUB T39538, T39539 AND T39540)

1шт.

11

U45248

COUNTERWEIGHT

(SUB T39538, T39539 AND T39540)

2шт.

12

U45247

COUNTERWEIGHT

(SUB T39538, T39539 AND T39540)

1шт.

13

T34532

STRAP

2шт.

14

ISOLATOR

( T35825 NO LONGER AVAILABLE)

2шт.

15

T45759

ISOLATOR

(SUB FOR T35942)

2шт.

16

T33802

SHAFT KEY

(USED WITH ALL LOCKS)

1шт.
