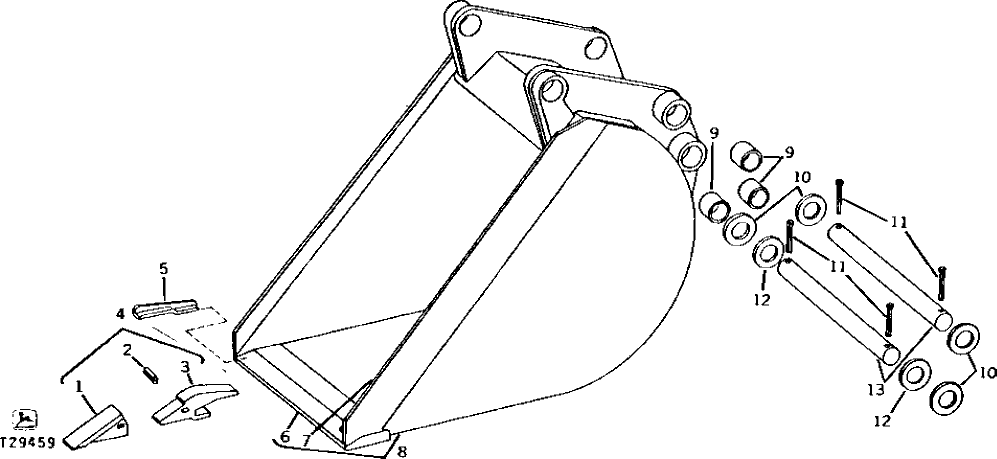

Запчасти John Deere 90 19 - BUCKETS 65 - BOOM, DIPPERSTICK, BUCKETS AND CYLINDERS

1

T252

TOOTH

(USE WITH 24" AND 30" BUCKETS, 5 USED WITH 36" BUCKET) (SUB FOR AT33513 AND T72583)

4шт.

2

U45574

PIN

(WITH 24" AND 30" BUCKETS, 5 USED WITH 36" BUCKET)

4шт.

3

T440X252

BUCKET TOOTH ADAPTER

(SUB FOR U45349)

1шт.

4

KIT

(WITH 24" BUCKETS, 5 USED WITH 36" BUCKET) ( AT33512 NO LONGER AVAILABLE) (FURNISH COMPONENTS)

4шт.

5

T34533

CORNER

R.H

1шт.

T34534

CORNER

L.H

1шт.

6

U45371

CUTTING EDGE

24" BUCKET

1шт.

U45368

CUTTING EDGE

30" BUCKET

1шт.

U45363

CUTTING EDGE

36" BUCKET

1шт.

7

U45364

CUTTING EDGE

SIDE, R.H

1шт.

U45365

CUTTING EDGE

SIDE, L.H

1шт.

8

EXCAVATOR BUCKET

24", WITH PINS, COTTER PINS AND WASHER ( BU40559 NO LONGER AVAILABLE) (SUB AT34745)

1шт.

EXCAVATOR BUCKET

24", WITH PINS, COTTER PINS AND WASHERS ( AT34745 NO LONGER AVAILABLE) (SUB FOR AT34771)

1шт.

EXCAVATOR BUCKET

30", WITH PINS, COTTER PINS AND WASHERS ( BU40560 NO LONGER AVAILABLE) (SUB AT34746)

1шт.

EXCAVATOR BUCKET

30", WITH PINS, COTTER PINS AND WASHERS ( AT34746 NO LONGER AVAILABLE) (SUB FOR AT34772)

1шт.

EXCAVATOR BUCKET

36", WITH PINS, COTTER PINS AND WASHERS ( BU40561 NO LONGER AVAILABLE) (SUB AT34747)

1шт.

EXCAVATOR BUCKET

36", WITH PINS, COTTER PINS AND WASHERS ( AT34747 NO LONGER AVAILABLE) (SUB FOR AT34773)

1шт.

9

U45351

BUSHING

6шт.

10

U43779

WASHER

4шт.

11

11H277

COTTER PIN

1/2" X 4"

4шт.

12

T67205

THRUST WASHER

(SUB FOR U41077)

2шт.

13

U45205

PIN FASTENER

2шт.

14

T250F

TOOTH

(WITH 24" AND 30" BUCKETS, 5 USED WITH 36" BUCKETS) (SUB FOR AT135911)

4шт.

15

T252

TOOTH

(WITH 24" AND 30" BUCKETS, 5 USED WITH 36" BUCKETS) (SUB FOR T72583)

4шт.

16

T252ST

TOOTH

(WITH 24" AND 30" BUCKETS, 5 USED WITH 36" BUCKETS) (SUB FOR T72581)

6шт.

17

T252ST

TOOTH

(WITH 24" AND 30" BUCKETS, 5 USED WITH 36" BUCKETS) (SUB FOR T72582 AND T72581)

4шт.
