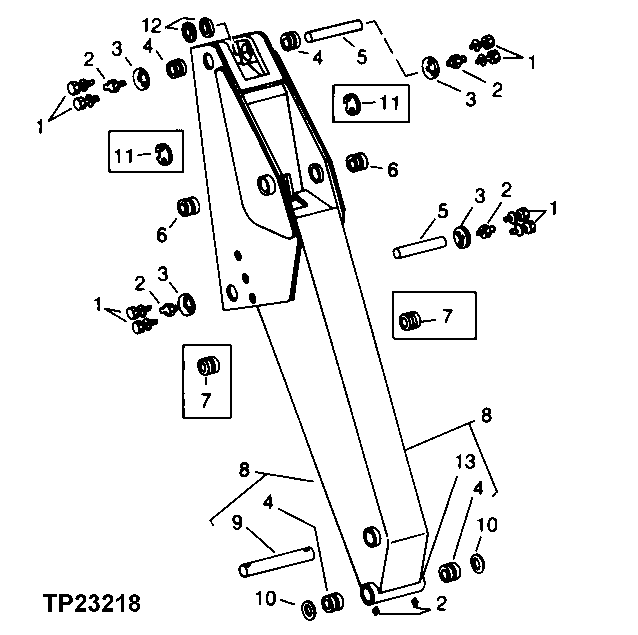

Запчасти John Deere 90 17 - DIPPERSTICK 65 - BOOM, DIPPERSTICK, BUCKETS AND CYLINDERS

1

19H2898

CAP SCREW

1/2" X 1-1/4", HIGH-STRENGTH, 1/2" X 1-1/4"

8шт.

12H301

LOCK WASHER

1/2"

8шт.

2

JD7759

LUBRICATION FITTING

STRAIGHT, 1/8"

6шт.

3

U45879

SPACER

4шт.

4

U43784

BUSHING

4шт.

5

U45876

PIN FASTENER

(SUB FOR U45877) (SUB T43090)

1шт.

T43090

PIN

1шт.

6

U45284

BUSHING

2шт.

T34789

BUSHING

(SUB FOR T34595)

2шт.

7

U43784

BUSHING

(NOT REQUIRED WHEN T43090 HAS BEEN INSTALLED AS A REPLACEMENT PART)

2шт.

8

AU43233

DIPPERSTICK

WITH BUSHINGS AND PIN, (SUB AT65400)

1шт.

AT65400

ARM

WITH BUSHING AND PIN, (SUB FOR AT33680)

1шт.

9

U46074

PIN FASTENER

1шт.

10

T67205

THRUST WASHER

(SUB FOR U41077)

2шт.

11

SPACER

(NOT REQUIRED WHEN T43090 HAS BEEN INSTALLED AS A REPLACEMENT PART) ( T33810 NO LONGER AVAILABLE)

2шт.

12

U43779

WASHER

2шт.

13

T61938

PIVOT

CASTING MARKED U46658, (REQUIRES WELDING AND MACHINING)

1шт.
