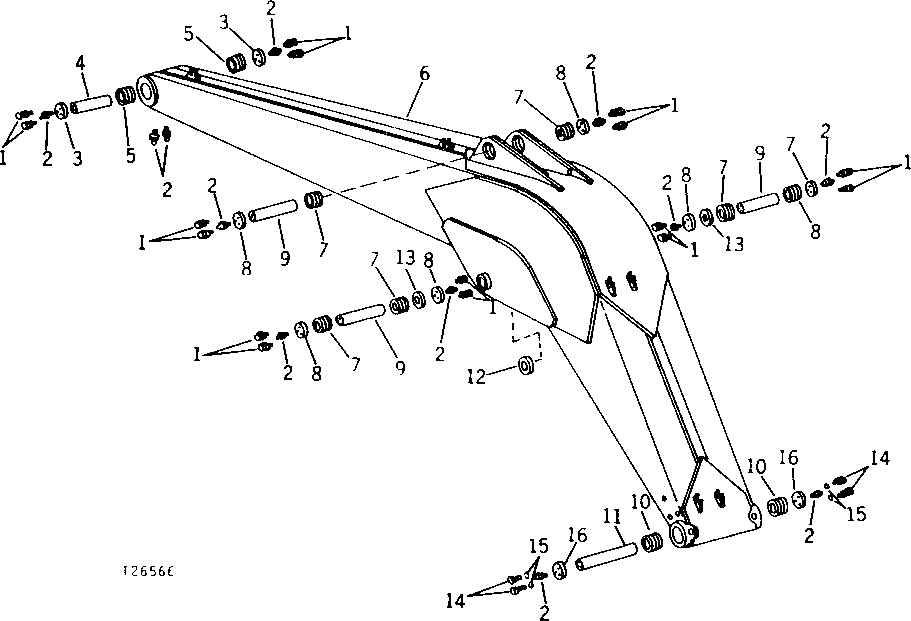

Запчасти John Deere 90 16 - BOOM 65 - BOOM, DIPPERSTICK, BUCKETS AND CYLINDERS

1

19H2898

CAP SCREW

HS, SAE 8, 1/2" X 1/4"

16шт.

12H301

LOCK WASHER

1/2"

16шт.

2

JD7759

LUBRICATION FITTING

STRAIGHT, 1/8"

12шт.

3

U45878

SPACER

2шт.

4

U45875

PIN

1шт.

5

U45284

BUSHING

2шт.

6

AU43265

EXCAVATOR BOOM

WITH BUSHINGS

1шт.

AT34776

EXCAVATOR BOOM

WITH BUSHINGS

1шт.

7

U43784

BUSHING

6шт.

8

U45879

SPACER

6шт.

9

U45872

PIN

3шт.

10

U44043

BUSHING

2шт.

11

U45873

PIN FASTENER

(SUB T38805, (2) T38806, (4) R78019, (4) 19H3158)

1шт.

T38805

PIN FASTENER

1шт.

12

U43779

WASHER

(SUB FOR U45881)

6шт.

13

U43779

WASHER

2шт.

14

19H2898

CAP SCREW

HS, SAE 8, 1/2" X 1-1/4"

4шт.

19H3158

CAP SCREW

HS, SAE 8, 3/4" X 2"

4шт.

15

12H301

LOCK WASHER

1/2"

4шт.

R78019

WASHER

(SUB FOR T21397)

4шт.

16

U45878

SPACER

2шт.

T38806

RETAINER

2шт.
