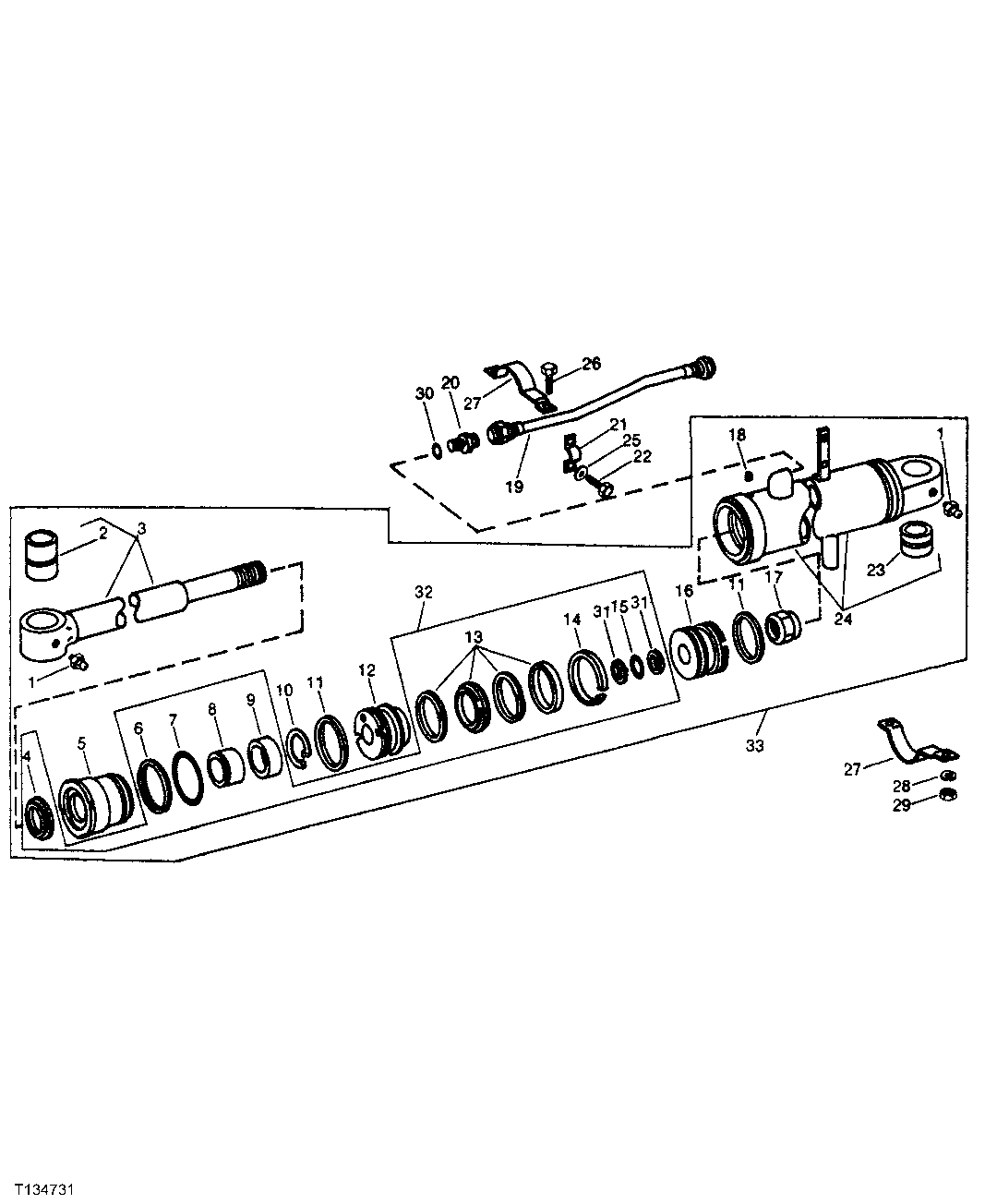

Запчасти John Deere 90 11A - REPLACEMENT CROWD CYLINDER 65 - BOOM, DIPPERSTICK, BUCKETS AND CYLINDERS

1

JD7759

LUBRICATION FITTING

1/8"

2шт.

2

U45171

BUSHING

1шт.

3

AU43246

ROD

(SUB RE21407)

1шт.

4

U45832

SEAL

1шт.

5

R69277

GUIDE

(SUB R82415) (ALSO ORDER RE21401, R78818, T38485 AND R82415)

1шт.

6

R78818

BACK-UP RING

(SUB FOR T38484, THIS APPLICATION)

1шт.

7

T38485

O-RING

1шт.

8

U45830

PISTON RING

1шт.

9

R76781

SEAL

1шт.

10

SNAP RING

( U45829 NO LONGER AVAILABLE)

1шт.

11

U46616

PISTON RING

2шт.

12

PISTON

( R77993 NO LONGER AVAILABLE)

1шт.

13

RE11920

SEAL

1шт.

14

T42985

WEAR RING

1шт.

15

P50631

O-RING

1шт.

16

T42984

PISTON

1шт.

17

U45223

LOCK NUT

1шт.

18

22H1077

SET SCREW

1/4" X 5/16"

1шт.

19

AU43249

LINE

1шт.

20

T26767

FITTING

1шт.

21

T34957

CLAMP

1шт.

22

19H1813

CAP SCREW

5/16" X 5/8"

2шт.

23

U43784

BUSHING

1шт.

24

AT41908

HYDRAULIC CYLINDER BARREL

(SUB RE19067)

1шт.

25

12H303

LOCK WASHER

5/16"

2шт.

26

19H3239

CAP SCREW

3/8" X 1-1/4"

2шт.

27

T35726

CLAMP

2шт.

28

12H304

LOCK WASHER

3/8"

2шт.

29

14H812

NUT

3/8"

2шт.

30

R29936

O-RING

1шт.

31

R81190

BACK-UP RING

(A) (SUB FOR A33953, THIS APPLICATION)

2шт.

32

RE12314

KIT

(SUB RE15906 AND RE15907)

1шт.

33

RE21406

HYDRAULIC CYLINDER

(SUB FOR RE12258)

1шт.
