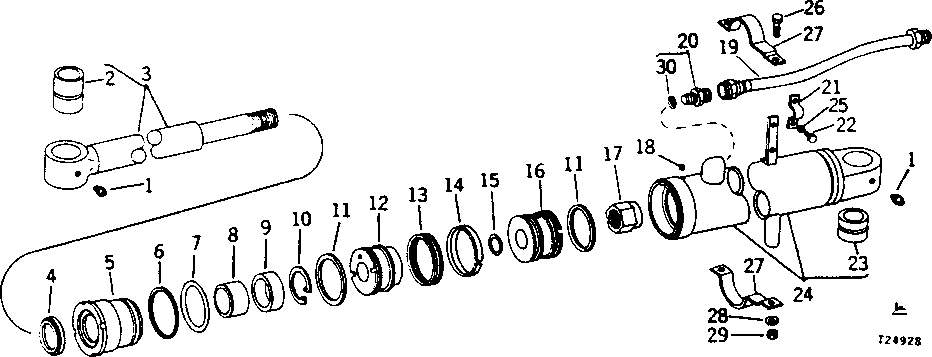

Запчасти John Deere 90 10 - CROWD CYLINDER 65 - BOOM, DIPPERSTICK, BUCKETS AND CYLINDERS

1

JD7759

LUBRICATION FITTING

STRAIGHT, 1/8"

2шт.

2

U45171

BUSHING

1шт.

3

AU43246

ROD

WITH BUSHING

1шт.

4

U45832

SEAL

(A) (B)

1шт.

5

U45219

GUIDE

(SUB R69277, T38485 AND R78818)

1шт.

R69277

GUIDE

(SUB FOR T38486)

1шт.

6

U44590

BACK-UP RING

(A) (B)

1шт.

R78818

BACK-UP RING

(A) (B) (SUB FOR T38484, THIS APPLICATION)

1шт.

7

T70176

O-RING

(A) (B)

1шт.

T38485

O-RING

(A) (B)

1шт.

8

U45830

PISTON RING

(A) (B)

1шт.

9

R76781

SEAL

(A) (B) (SUB FOR U45833 AND T36188)

1шт.

10

SNAP RING

( U45829 NO LONGER AVAILABLE)

1шт.

11

U46616

PISTON RING

2шт.

12

PISTON

(((((, (ALSO ORDER RE12314)

1шт.

13

T52425

PACKING

(A) (B) (SUB FOR U45178 AND T32937) (USED WITH AT32257)

1шт.

14

U45180

WEAR RING

(A)

1шт.

T42985

WEAR RING

(A) (B) (USED WHEN AT41907 HAS BEEN INSTALLED AS A REPLACEMENT PART)

1шт.

15

P50631

O-RING

(A) (B)

1шт.

16

PISTON

(USED WITH AT32257) ( U45222 NO LONGER AVAILABLE)

1шт.

T42984

PISTON

(USED WHEN AT41907 HAS BEEN INSTALLED AS A REPLACEMENT PART)

1шт.

17

U45223

LOCK NUT

1шт.

18

22H842

SET SCREW

1/4" X 5/16", SOCKET-HEAD, 1/4" X 5/16"

1шт.

19

AU43249

LINE

1шт.

20

AU43250

FITTING

1шт.

21

CLAMP

( U45224 NO LONGER AVAILABLE)

1шт.

T34957

CLAMP

1шт.

22

19H2020

CAP SCREW

5/16" X 1/2", HIGH-STRENGTH, 5/16" X 1/2"

1шт.

19H1813

CAP SCREW

5/16" X 5/8", HIGH-STRENGTH, 5/16" X 5/8"

2шт.

23

U43784

BUSHING

1шт.

24

HYDRAULIC CYLINDER BARREL

WITH BUSHINGS (USED WITH AT32257) (NO LONGER AVAILABLE)

1шт.

RE19067

HYDRAULIC CYLINDER BARREL

(SUB FOR AT41908) WITH BUSHING (USED WHEN AT41907 HAS BEEN INSTALLED AS REPLACEMENT PART)

1шт.

25

12H303

LOCK WASHER

5/16"

1шт.

12H303

LOCK WASHER

5/16"

2шт.

26

19H3239

CAP SCREW

3/8" X 1-1/4"

2шт.

27

T35726

CLAMP

2шт.

28

12H304

LOCK WASHER

3/8"

2шт.

29

14H812

NUT

3/8"

2шт.

30

R29936

O-RING

1шт.

AT41907

HYDRAULIC CYLINDER

(SUB FOR AU43243 AND AT32257) (SUB RE12258)

1шт.

AT32942

COUNTRY CODE

(SUB AR105312)

1шт.

AR105312

HYDRAULIC CYLINDER KIT

(CROWD CYLINDER) (USE WITH AU43243 OR AT32257) (SUB FOR AT37322)

1шт.

AR105313

HYDRAULIC CYLINDER KIT

(USE WHEN AT41907 HAS BEEN INSTALLED AS A REPLACEMENT PART) (SUB FOR AT43470)

1шт.
