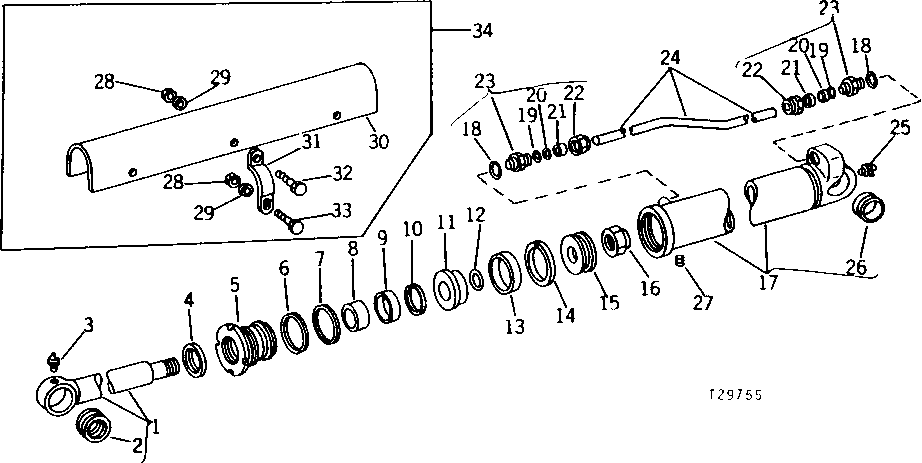

Запчасти John Deere 90 7 - BUCKET CYLINDER 65 - BOOM, DIPPERSTICK, BUCKETS AND CYLINDERS

1

AU43224

ROD

1шт.

2

U46436

BUSHING

1шт.

3

JD7759

LUBRICATION FITTING

STRAIGHT, 1/8"

1шт.

4

U45832

SEAL

(A)

1шт.

5

U45174

GUIDE

(SUB R78818, T38485 AND T38487)

1шт.

T38487

GUIDE

1шт.

6

U44590

BACK-UP RING

(A)

1шт.

R78818

BACK-UP RING

(SUB FOR T38484, THIS APPLICATION)

1шт.

7

T70176

O-RING

(A)

1шт.

T38485

O-RING

1шт.

8

U45830

PISTON RING

(A)

1шт.

9

R76781

SEAL

(A) (SUB FOR U45833 AND T36188)

1шт.

10

SNAP RING

( U45829 NO LONGER AVAILABLE)

1шт.

11

U45177

PISTON

1шт.

12

P50631

O-RING

(A)

1шт.

13

T52425

PACKING

(A) (SUB FOR U45178 AND T32937)

1шт.

14

U45180

WEAR RING

(A)

1шт.

15

U45179

PISTON

1шт.

16

U43399

LOCK NUT

1шт.

17

AU43221

HYDRAULIC CYLINDER BARREL

WITH BUSHING

1шт.
