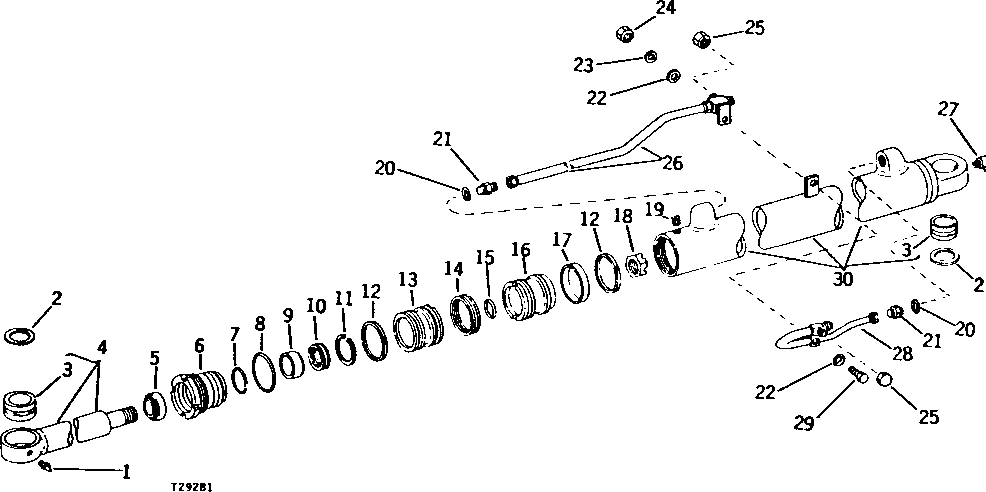

Запчасти John Deere 90 6 - BOOM CYLINDER 65 - BOOM, DIPPERSTICK, BUCKETS AND CYLINDERS

1

JD7759

LUBRICATION FITTING

STRAIGHT, 1/8"

1шт.

2

U43779

WASHER

6шт.

3

U43784

BUSHING

2шт.

4

AR89436

ROD

(SUB FOR AT34767)

1шт.

5

U43388

SEAL

(A)

1шт.

6

R69278

GUIDE

(SUB FOR T38488) (SUB R82411, RE21395, R79177 AND T38489)

1шт.

7

R79177

BACK-UP RING

(A) (SUB FOR T38490, THIS APPLICATION)

1шт.

8

T38489

O-RING

(A)

1шт.

9

U43389

WEAR RING

(A)

1шт.

10

R76782

SEAL

(A) (SUB FOR T36189)

1шт.

11

U43391

SNAP RING

1шт.

12

T34515

PISTON RING

2шт.

13

R68638

PISTON

(SUB FOR T34513)

1шт.

14

T37380

PACKING

(A) (SUB FOR R72829)

1шт.

15

U10289

O-RING

(A)

1шт.

16

T34514

PISTON

1шт.

17

U44508

WEAR RING

(A)

1шт.

18

U10750

LOCK NUT

1шт.

19

22H842

SET SCREW

1/4" X 5/16"

1шт.

20

R29936

O-RING

2шт.

21

T27603

FITTING

2шт.

22

24H1305

WASHER

13/32" X 13/16" X 0.065"

2шт.

23

12H304

LOCK WASHER

3/8"

1шт.

24

14H812

NUT

3/8"

1шт.

25

T29439

FITTING

2шт.

26

AT38633

LINE

1шт.

27

JD7781

LUBRICATION FITTING

90°, 1/8"

1шт.

28

AT38632

LINE

1шт.

29

19H2732

CAP SCREW

3/8" X 2-3/4"

1шт.

30

AT38630

HYDRAULIC CYLINDER BARREL

1шт.

AR89435

CYLINDER

LESS RETURN TUBES AND FITTINGS, (SUB FOR AT38629) (SUB RE21394, AT84147, AT84148, (2) 38H1194, (2) T77858 AND (2) R29936)

1шт.

AR105309

HYDRAULIC CYLINDER KIT

(SUB FOR AT37323 AND AR96524)

1шт.
