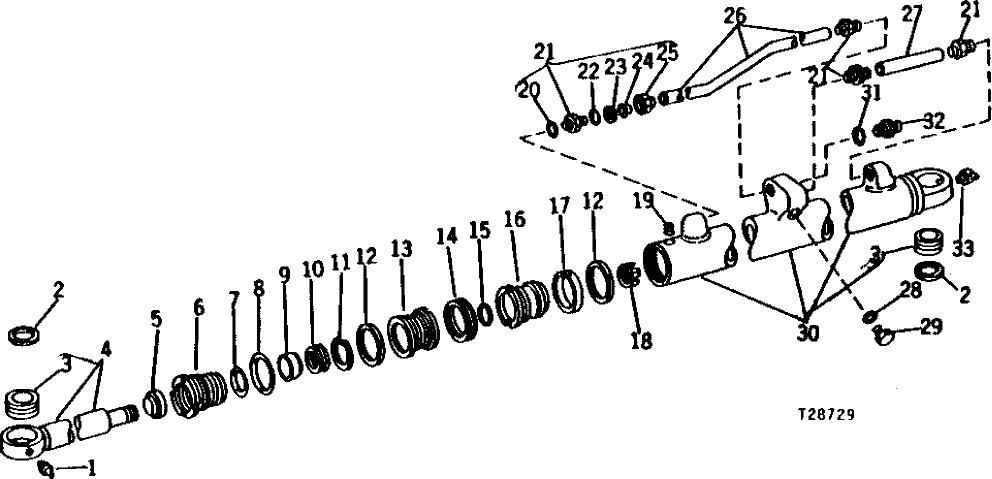

Запчасти John Deere 90 4 - BOOM CYLINDER 65 - BOOM, DIPPERSTICK, BUCKETS AND CYLINDERS

1

JD7759

LUBRICATION FITTING

STRAIGHT, 1/8"

1шт.

2

U43779

WASHER

6шт.

3

U43784

BUSHING

2шт.

4

AR89436

ROD

(SUB FOR AT34767)

1шт.

5

U43388

SEAL

(A)

1шт.

6

T34516

GUIDE

(SUB R69278, T38489 AND R79177)

1шт.

R69278

GUIDE

(SUB FOR T38488) (SUB R82411, RE21395, R79177 AND T38489)

1шт.

7

R79002

BACK-UP RING

(A) (SUB FOR T56525, THIS APPLICATION)

1шт.

R79177

BACK-UP RING

(A) (SUB FOR T38490, THIS APPLICATION)

1шт.

8

C11884

O-RING

(A)

1шт.

T38489

O-RING

(A)

1шт.

9

U43389

WEAR RING

(A)

1шт.

10

R76782

SEAL

(A) (SUB FOR T36189)

1шт.

11

U43391

SNAP RING

1шт.

12

T34515

PISTON RING

2шт.

13

R68638

PISTON

(SUB FOR T34513)

1шт.

14

T37380

PACKING

(A) (SUB FOR R72829)

1шт.

15

U10289

O-RING

(A)

1шт.

16

T34514

PISTON

1шт.

17

U44508

WEAR RING

(A)

1шт.

18

U10750

LOCK NUT

1шт.

19

22H842

SET SCREW

1/4" X 5/16"

1шт.

20

R29936

O-RING

1шт.

21

AU43257

FITTING

4шт.

22

T13119

O-RING

1шт.

23

U46226

SHIM

1шт.

24

U46225

SLEEVE FITTING

1шт.

25

NUT

(SUB AU43257)

1шт.

26

U45232

LINE

1шт.

27

U45236

BUSHING

1шт.

28

R26448

O-RING

1шт.

29

R27218

FITTING PLUG

1шт.

30

AT33530

HYDRAULIC CYLINDER BARREL

(SUB AT38630, AT38632, AT38633, (2) R29936, (2) T27603, (2) T29439, 12H304, 14H812, 19H2732 AND (2) 24H1305)

1шт.

31

U12547

O-RING

(SUB FOR (2) F3171R)

2шт.

32

R27267

FITTING

2шт.

33

JD7763

LUBRICATION FITTING

45°, 1/8", (SUB FOR JD7759 AND JD7781, THIS APPLICATION)

1шт.

AT33529

CYLINDER

(SUB AT38629, AT38632, AT38633, (2) R29936, (2) T27603, (2) T29439, 12H304, 14H812, 19H1944 AND (2) 24H1305)

1шт.

AT35126

COUNTRY CODE

(SUB AR105309)

1шт.

AR105309

HYDRAULIC CYLINDER KIT

(SUB FOR AT37323 AND AR96524)

1шт.
