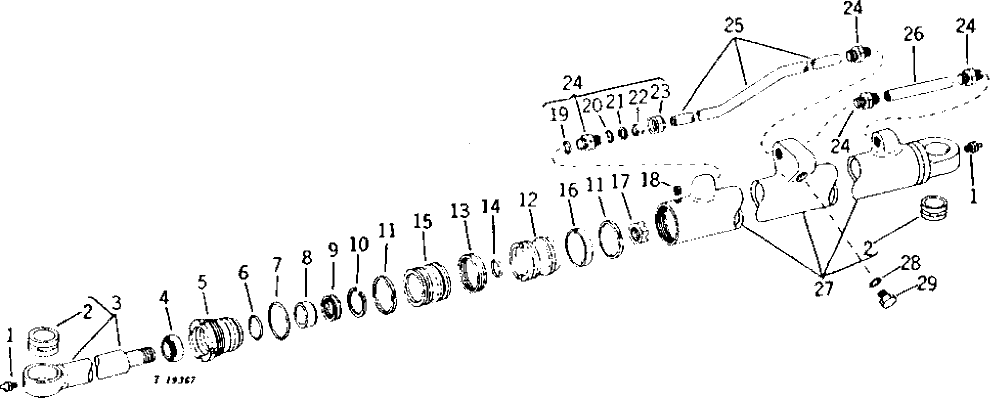

Запчасти John Deere 90 2 - BOOM CYLINDER 65 - BOOM, DIPPERSTICK, BUCKETS AND CYLINDERS

1

JD7759

LUBRICATION FITTING

STRAIGHT, 1/8"

2шт.

2

U43784

BUSHING

2шт.

3

ROD

( AU43252 NO LONGER AVAILABLE)

1шт.

4

U45230

SEAL

(A)

1шт.

5

T42551

GUIDE

(SUB FOR U45228)

1шт.

6

R79001

BACK-UP RING

(A) (SUB FOR T42552, THIS APPLICATION)

1шт.

7

P46765

O-RING

(A) (SUB FOR U10746, THIS APPLICATION)

1шт.

8

U43999

WEAR RING

(A)

1шт.

9

R73998

SEAL

(A) (SUB FOR T36187)

1шт.

10

U44000

SNAP RING

1шт.

11

U45231

PISTON RING

1шт.

12

PISTON

(SUB FOR U45226) ( T38292 NO LONGER AVAILABLE)

1шт.

13

T37379

PACKING

(A) (SUB FOR R72828)

1шт.

14

U10289

O-RING

(A)

1шт.

15

T55570

PISTON

(SUB FOR U45227 AND T38293)

1шт.

16

U17225

WEAR RING

(A)

1шт.

17

U10750

LOCK NUT

1шт.

18

22H842

SET SCREW

1/4" X 5/16", SOCKET-HEAD

1шт.

19

R29936

O-RING

1шт.

20

T13119

O-RING

1шт.

21

U46226

SHIM

1шт.

22

U46225

SLEEVE FITTING

1шт.

23

NUT

(SUB AU43257)

1шт.

24

AU43257

FITTING

4шт.

25

U45232

LINE

1шт.

26

U45236

BUSHING

1шт.

27

HYDRAULIC CYLINDER BARREL

( AT37004 NO LONGER AVAILABLE) (SUB RE21394)

1шт.

28

R26448

O-RING

2шт.

29

R27218

FITTING PLUG

2шт.

CYLINDER

( AT37003 NO LONGER AVAILABLE) (SUB RE21394)

1шт.

AR105442

KIT

CYLINDER REPAIR, (SUB FOR AT32943, AT36451 AND AR96583)

1шт.
