Запчасти John Deere 90 19 - FLOW CONTROL CABLE AND CONTROL PANEL 60 - HYDRAULIC SYSTEM

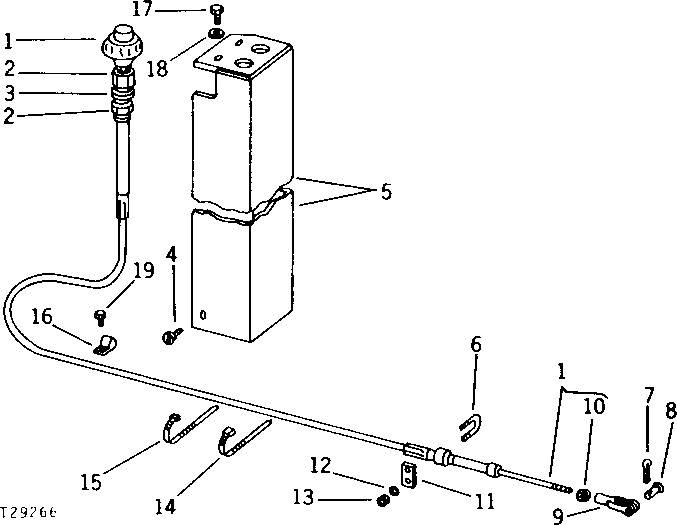

Схема запчастей John Deere 90 - 19 - FLOW CONTROL CABLE AND CONTROL PANEL 60 - HYDRAULIC SYSTEM

Артикул

Название

Примечание

Количество

1

AT41410

PUSH PULL CABLE

1шт.

2

14H904

NUT

3/4"

2шт.

3

12H327

LOCK WASHER

INTERNAL TOOTH 3/4"

1шт.

4

37H20

SCREW

NO. 8 X 3/8"

3шт.

5

AT34529

PANEL

1шт.

6

T13988

U-BOLT

1шт.

7

11M7077

COTTER PIN

1.600 X 25 MM, (USE WITH L4667T)

1шт.

11M7082

COTTER PIN

2.500 X 25 MM, (USE WITH R662R)

1шт.

8

L4667T

PIN FASTENER

(SUB R662R AND 11H234)

1шт.

R662R

PIN FASTENER

1шт.

9

M3742T

YOKE

1шт.

10

14H649

NUT

1/4"

1шт.

11

T15021

STRAP

1шт.

12

12H302

LOCK WASHER

1/4"

2шт.

13

14H786

NUT

1/4"

2шт.

14

H77698

TIE BAND

(SUB FOR AT30417 AND T44946)

1шт.

15

R44302

TIE BAND

2шт.

16

T21101

CLAMP

1шт.

17

37H95

SCREW

(SUB FOR 37H47) NO. 8 X 1/2"

2шт.

18

24H1283

WASHER

7/32" X 1/2" X 0.049"

2шт.

19

19H2127

CAP SCREW

5/16" X 7/8"

1шт.

Выбрано товаров: 21
