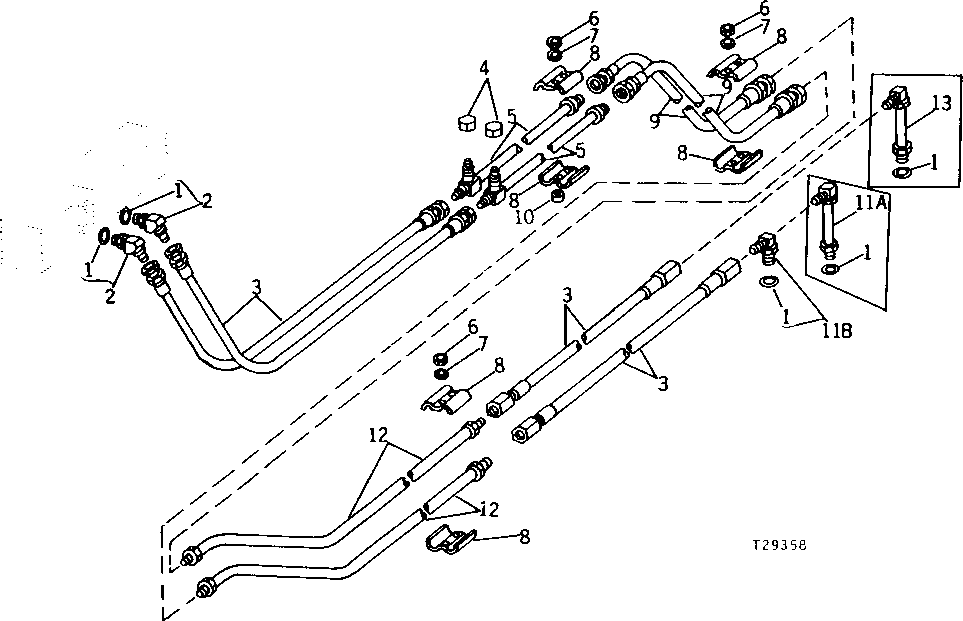

Запчасти John Deere 90 16 - OIL LINES, VALVE TO BUCKET CYLINDER 60 - HYDRAULIC SYSTEM

1

R29936

O-RING

3шт.

2

AU43288

ELBOW FITTING

45°

2шт.

3

AT34207

HYDRAULIC HOSE - FABRICATE

1 117 MM (1" X 44") LONG

4шт.

4

U45826

FITTING

2шт.

5

AU43581

LINE

2шт.

6

H32811

LOCK NUT

(SUB FOR U14502)

8шт.

7

12H301

LOCK WASHER

1/2"

8шт.

8

T35868

CLAMP

8шт.

9

AU43293

HYDRAULIC HOSE - FABRICATE

1 448 MM (1" X 57") LONG

2шт.

10

Z24862

SPACER

(SUB FOR L1730N)

2шт.

28H1016

SPACER

3/4" X 1", (SUB FOR P20720)

2шт.

11A

AU43453

ELBOW FITTING

90°

1шт.

11B

X2503-16-16

ELBOW FITTING

(SUB FOR AU42832) ADJUSTABLE, 90°

1шт.

12

AT34358

OIL LINE

2шт.

13

AU43453

ELBOW FITTING

90°

1шт.
