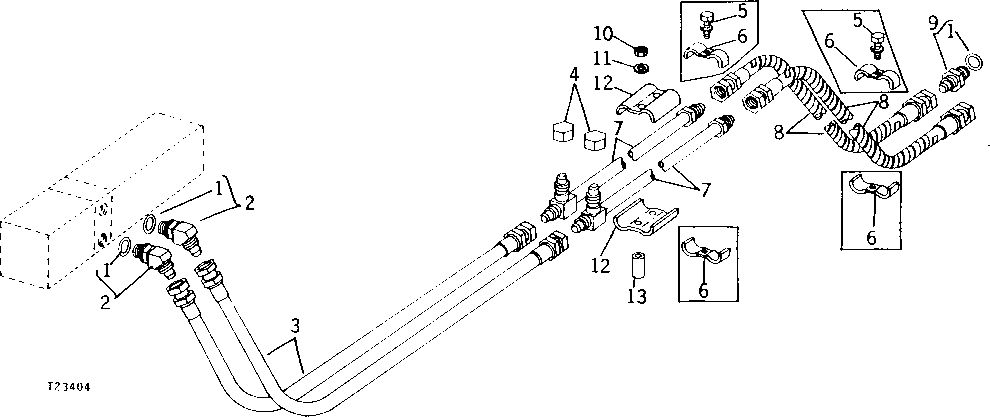

Запчасти John Deere 90 14 - OIL LINES, VALVE TO CROWD CYLINDER 60 - HYDRAULIC SYSTEM

1

R29936

O-RING

3шт.

2

AU43288

ELBOW FITTING

45°

2шт.

3

AT34207

HYDRAULIC HOSE - FABRICATE

1 117 MM (1" X 44") LONG, (SUB FOR AU43294)

2шт.

4

U45826

FITTING

2шт.

5

19H2735

CAP SCREW

1/2" X 2"

3шт.

12H301

LOCK WASHER

1/2"

3шт.

6

T35459

CLAMP

(SUB FOR U45827) (ALSO ORDER 19H1805)

6шт.

7

AU43581

LINE

2шт.

8

AU43293

HYDRAULIC HOSE - FABRICATE

2шт.

AT35140

HYDRAULIC HOSE - FABRICATE

WITH SPRING GUARD

2шт.

9

AU43250

FITTING

1шт.

10

H32811

LOCK NUT

(SUB FOR U14502)

4шт.

11

12H301

LOCK WASHER

1/2"

4шт.

12

T35868

CLAMP

4шт.

13

Z24862

SPACER

(SUB FOR L1730N)

4шт.
