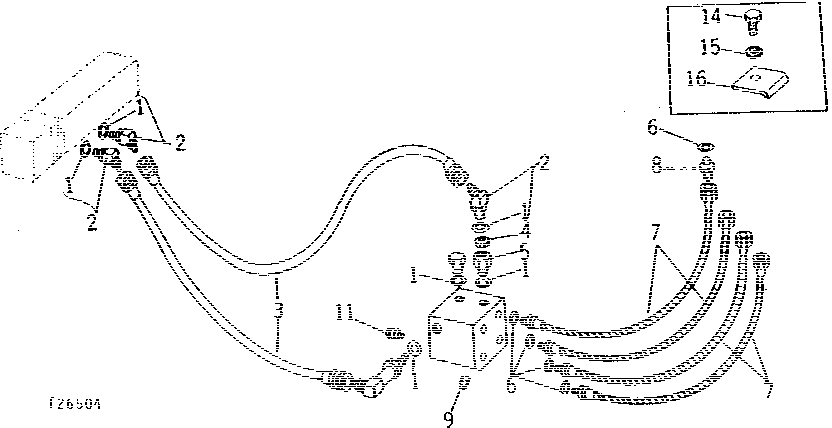

Запчасти John Deere 90 13 - VALVE TO BOOM CYLINDER OIL LINES AND FITTINGS 60 - HYDRAULIC SYSTEM

1

R29936

O-RING

6шт.

2

AU43288

ELBOW FITTING

45°

3шт.

3

AT34207

HYDRAULIC HOSE - FABRICATE

1 117 MM (1" X 44") LONG, (SUB FOR AU43294 AND AT35845)

2шт.

4

T34502

ORIFICE

(SUB FOR U46413)

1шт.

5

U46412

FITTING

STRAIGHT

1шт.

6

U12547

O-RING

(SUB FOR (8) F3171R)

8шт.

7

AU43300

HOSE

845 MM (3/4" X 33-1/4") (SUB AT36256)

4шт.

AT36256

HYDRAULIC HOSE - FABRICATE

845 MM (3/4" X 33-1/4") (SUB FOR AT34783)

4шт.

8

R27267

FITTING

4шт.

9

U44036

PIPE PLUG

1шт.

10

AU43453

ELBOW FITTING

90°

1шт.

11

19H2472

CAP SCREW

1/2" X 1"

2шт.

12H301

LOCK WASHER

1/2"

2шт.

12

R36636

FITTING PLUG

1шт.

13

AU43299

MANIFOLD

INCLUDES PLUGS

1шт.

14

T45564

SCREW

3/4" X 2-1/2", (SUB FOR T33477)

1шт.

15

12H236

LOCK WASHER

3/4"

1шт.

16

T35809

PLATE

1шт.
