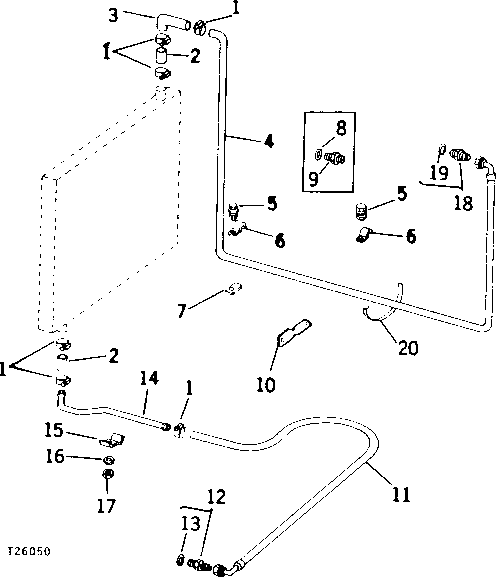

Запчасти John Deere 90 7 - OIL COOLER OIL LINES 60 - HYDRAULIC SYSTEM

1

AR21839

CLAMP

6шт.

2

HOSE

25 MM X 64 MM (1" X 2-1/2") (MAKE FROM U11186) (SUB FOR T35828 AND T37798)

2шт.

3

LINE

UPPER ( T35827 NO LONGER AVAILABLE)

1шт.

4

HYDRAULIC HOSE

(MANIFOLD BLOCK TO OIL COOLER) ( AT34801 NO LONGER AVAILABLE)

1шт.

HYDRAULIC HOSE

(MANIFOLD BLOCK TO OIL COOLER) ( AT37482 NO LONGER AVAILABLE)

1шт.

5

19H2676

CAP SCREW

3/8" X 1"

3шт.

12H304

LOCK WASHER

3/8"

3шт.

14H812

NUT

3/8"

3шт.

6

T35829

CLAMP

4шт.

7

U46356

STRAP

2шт.

8

U13639

O-RING

1шт.

9

T46529

ADAPTER FITTING

(SUB FOR T35875)

1шт.

10

U46355

BRACKET

1шт.

11

HYDRAULIC HOSE

(RESERVOIR TO OIL COOLER) ( AT34802 NO LONGER AVAILABLE)

1шт.

12

AU43250

FITTING

1шт.

13

R29936

O-RING

1шт.

14

T35940

LINE

LOWER

1шт.

15

U43641

CLAMP

1шт.

16

12H304

LOCK WASHER

3/8"

1шт.

17

14H812

NUT

3/8"

1шт.

18

AU43250

FITTING

(A)

1шт.

19

R29936

O-RING

(A)

1шт.

20

R44302

TIE BAND

1шт.

AT37445

FILTER

(NO LONGER AVAILABLE)

1шт.
