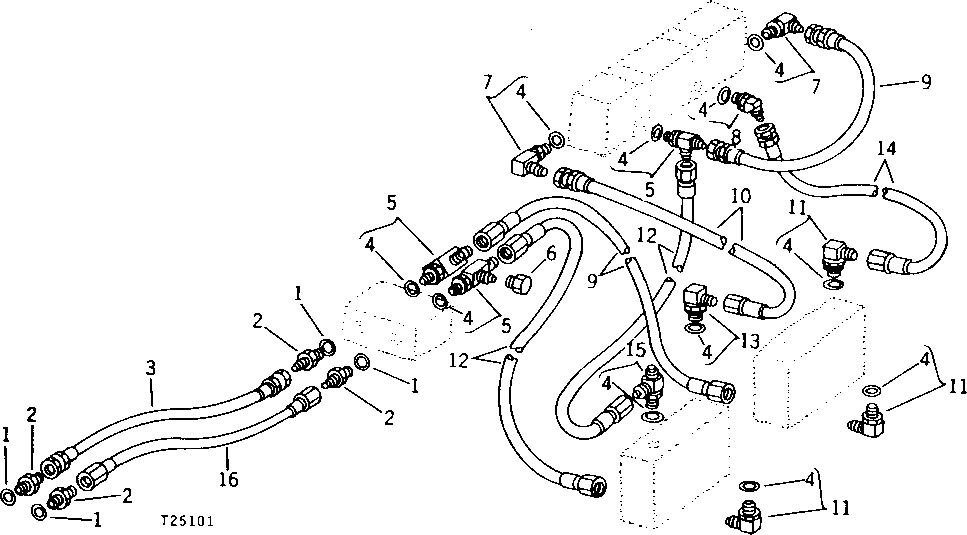

Запчасти John Deere 90 4 - HYDRAULIC PUMP OIL LINES 60 - HYDRAULIC SYSTEM

1

U13639

O-RING

4шт.

2

T35268

ADAPTER FITTING

4шт.

3

AT36104

HYDRAULIC HOSE

762 MM (1-1/2" X 30") LONG, (SUB FOR AT34193)

1шт.

4

R29936

O-RING

11шт.

5

X20R5OX-S

TEE FITTING

(SUB FOR AT31891)

2шт.

6

U45826

FITTING

37° FLARE

2шт.

7

X2503-16-16

ELBOW FITTING

(SUB FOR AU42832) 90°

2шт.

8

AU43288

ELBOW FITTING

45°

1шт.

9

AT34207

HYDRAULIC HOSE - FABRICATE

1 117 MM (1" X 44") LONG

1шт.

10

AU43293

HYDRAULIC HOSE - FABRICATE

1 448 MM(1" X 57") LONG

1шт.

11

X2503-16-16

ELBOW FITTING

(SUB FOR AU42832) ADJUSTABLE, 90°

1шт.

12

AU43765

HYDRAULIC HOSE - FABRICATE

927 MM (1" X 36-1/2") LONG

2шт.

13

AT33917

ELBOW FITTING

(SUB FOR AR29422) SWIVEL, 90°

1шт.

14

AT34207

HYDRAULIC HOSE - FABRICATE

1 117 MM (1" X 44") LONG

1шт.

15

X20R5OX-S

TEE FITTING

(SUB FOR AT31891)

2шт.

16

AT34193

HOSE

(SUB AT36104) 711 MM (1-1/2" X 28") LONG

1шт.

AT36104

HYDRAULIC HOSE

762 MM (1-1/2" X 30") LONG

1шт.
