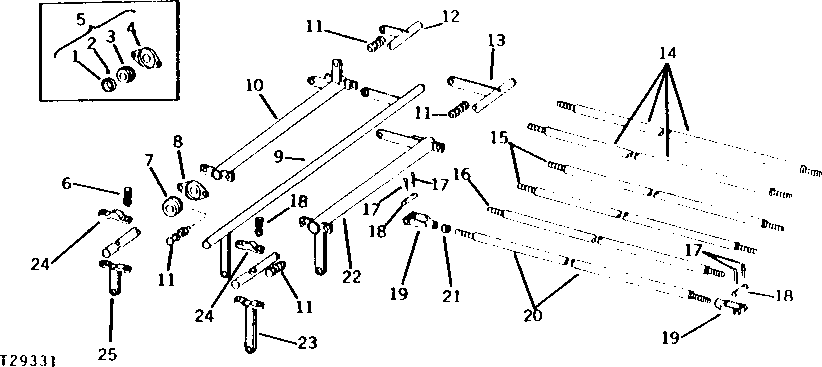

Запчасти John Deere 90 4 - CONTROL VALVE LINKAGE 55 - OPERATING CONTROL LEVERS AND LINKAGE

1

JD8554

ECCENTRIC LOCKING COLLAR

8шт.

2

E18630

SET SCREW

8шт.

3

JD8555

BALL BEARING

8шт.

4

L2287C

PRESSED FLANGED HOUSING

8шт.

5

AB15195

BEARING

(SUB JD9453)

8шт.

6

19H2633

CAP SCREW

3/8" X 1-1/2"

2шт.

12H304

LOCK WASHER

3/8"

2шт.

14H812

NUT

3/8"

2шт.

7

JD9453

BEARING

8шт.

8

L2287C

PRESSED FLANGED HOUSING

16шт.

9

AT54702

ROD

(BUCKET) (SUB FOR AU43626) (ALSO ORDER (2) U45935, (2) U45928, (4) 12H304, (4) 14H812 AND (4) 19H2633)

1шт.

10

AU43621

PIPE

PIVOT, L.H. TRAVEL

1шт.

11

03H1790

BOLT

5/16" X 1-1/2"

8шт.

28H1514

SPACER

1/4" X 9/16"

8шт.

12H303

LOCK WASHER

5/16"

8шт.

14H785

NUT

5/16"

8шт.

12

AU43622

ROD

1шт.

13

AT54698

ROD

(CROWD) (SUB FOR AU43625 AND AT35058)

1шт.

14

T33862

PUSH ROD

(SUB FOR AU43629) (SWING AND L.H. TRAVEL)

1шт.

15

T66608

PUSH ROD

(CROWD AND BOOM) (SUB FOR AU43630) (SUB FOR T33863, THIS APPLICATION)

1шт.

16

T33864

ROD

(BUCKET) (SUB FOR AU43631)

1шт.

17

11M7015

COTTER PIN

3.200 X 25 MM

24шт.

18

U46245

PIN FASTENER

12шт.

19

U16202

YOKE

12шт.

20

T33861

PUSH ROD

(R.H. TRAVEL) (SUB FOR AU43628)

1шт.

21

14H826

NUT

1/2"

12шт.

22

AU43624

PIPE

(BOOM)

1шт.

23

U45935

BELLCRANK

1шт.

24

U45928

BELLCRANK

1шт.

25

U45929

CRANK

1шт.
