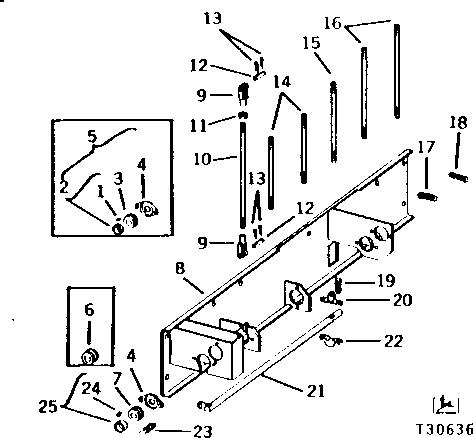

Запчасти John Deere 90 3 - BEARING BRACKET AND CONTROL VALVE LINKAGE 55 - OPERATING CONTROL LEVERS AND LINKAGE

1

JD8554

ECCENTRIC LOCKING COLLAR

4шт.

2

E18630

SET SCREW

4шт.

3

JD8555

BALL BEARING

4шт.

4

L2287C

PRESSED FLANGED HOUSING

8шт.

5

AB15195

BEARING

(SUB JD8554, JD8555 AND (2) L2287C)

4шт.

6

JD9453

BEARING

(SUB JD8554 AND JD8555, THIS APPLICATION)

4шт.

7

JD8555

BALL BEARING

1шт.

8

AT54694

BRACKET

(SUB FOR AU43619) (ALSO ORDER AT54702, (2) U45935, (2) U45928, (4) 12H304, (4) 14H812 AND (4) 19H2633)

1шт.

9

U16202

YOKE

12шт.

10

U45944

STUD

(R.H. TRAVEL)

1шт.

11

14H826

NUT

1/2"

12шт.

12

U46245

PIN FASTENER

12шт.

13

11M7015

COTTER PIN

3.200 X 25 MM

24шт.

14

U45945

STUD

(CROWD AND BOOM)

2шт.

15

U45947

STUD

(BUCKET)

1шт.

16

U45946

STUD

(SWING AND L.H. TRAVEL)

2шт.

17

19H2993

CAP SCREW

1/2" X 1-1/2"

9шт.

24H1254

WASHER

17/32" X 1-1/8" X 0.105"

18шт.

12H301

LOCK WASHER

1/2"

9шт.

14H1040

NUT

1/2", (SUB FOR 14H809)

9шт.

18

19H2469

CAP SCREW

1/2" X 2-1/4"

1шт.

24H1254

WASHER

17/32" X 1-1/8" X 0.105"

2шт.

12H301

LOCK WASHER

1/2"

1шт.

14H1040

NUT

1/2", (SUB FOR 14H809)

1шт.

19

19H2633

CAP SCREW

3/8" X 1-1/2"

4шт.

12H304

LOCK WASHER

3/8"

4шт.

14H812

NUT

3/8"

4шт.

20

U45943

BELLCRANK

1шт.

21

AT54705

ROD

R.H. TRAVEL PIVOT (SUB FOR AU43627)

1шт.

22

U45928

BELLCRANK

2шт.

23

03H1540

BOLT

5/16" X 3/4"

16шт.

12H303

LOCK WASHER

5/16"

16шт.

14H785

NUT

5/16"

16шт.

24

E18630

SET SCREW

1шт.

25

JD8554

ECCENTRIC LOCKING COLLAR

1шт.
