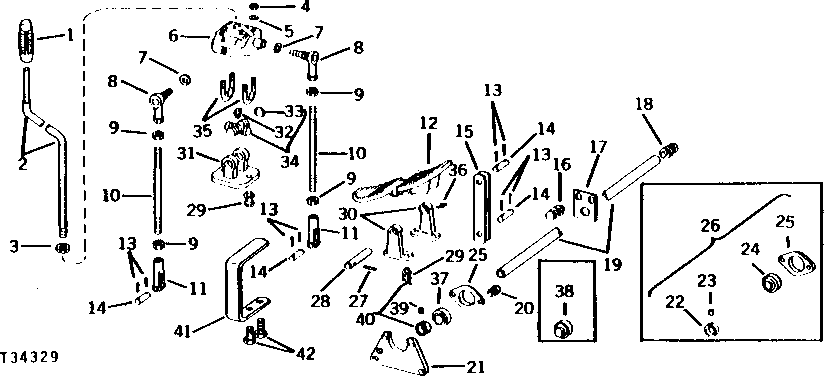

Запчасти John Deere 90 2 - OPERATING CONTROL LEVERS AND PEDALS 55 - OPERATING CONTROL LEVERS AND LINKAGE

1

U43703

GRIP

2шт.

2

U45618

LEVER

2шт.

3

14H794

NUT

3/4"

2шт.

4

14H860

NUT

1/4"

8шт.

5

12H302

LOCK WASHER

1/4"

8шт.

6

U46256

PIVOT

2шт.

7

12H301

LOCK WASHER

1/2"

4шт.

8

AU43742

END

ROD AND SPHERICAL BEARING

4шт.

9

14H856

NUT

1/2"

8шт.

10

U46251

STUD

4шт.

11

U16202

YOKE

4шт.

12

U45632

PEDAL

(SUB T35284 AND JD7806)

1шт.

T35284

PEDAL

2шт.

13

11M7082

COTTER PIN

2.500 X 25 MM, (SUB FOR 11M7081)

16шт.

14

U46245

PIN FASTENER

8шт.

15

AU43739

LINK

(SUB (2) T61265)

2шт.

T61265

LINK

4шт.

16

19H2898

CAP SCREW

1/2" X 1-1/4"

2шт.

12H301

LOCK WASHER

1/2"

2шт.

24H1788

WASHER

17/32" X 1-1/8" X 0.060"

2шт.

17

U46379

SUPPORT

1шт.

18

19H2880

CAP SCREW

1/2" X 1-3/4"

2шт.

12H301

LOCK WASHER

1/2"

2шт.

24H1788

WASHER

17/32" X 1-1/8" X 0.060"

2шт.

19

U45628

PIN

1шт.

20

03H1709

BOLT

5/16" X 1"

12шт.

12H303

LOCK WASHER

5/16"

12шт.

14H785

NUT

5/16"

12шт.

21

U46252

LINK

6шт.

22

JD8554

ECCENTRIC LOCKING COLLAR

6шт.

23

E18630

SET SCREW

6шт.

24

JD8555

BALL BEARING

6шт.

25

L2287C

PRESSED FLANGED HOUSING

12шт.

26

AB15195

BEARING

(SUB JD8554, JD8555 AND (2) L2287C)

6шт.

27

34H284

SPRING PIN

3/16" X 1-1/4"

2шт.

28

U45633

PIN FASTENER

2шт.

29

19H1648

CAP SCREW

3/8" X 3/4"

12шт.

12H304

LOCK WASHER

3/8"

12шт.

30

U45634

SUPPORT

4шт.

31

U46255

BASE

2шт.

32

JD7763

LUBRICATION FITTING

45°, 1/8"

2шт.

33

BP13669

SNAP RING

(SUB FOR U46279)

8шт.

34

AE23716

CROSS AND BEARING ASSEMBLY

(SUB FOR AU43743)

2шт.

35

T66665

U-BOLT

(SUB FOR AU43783)

4шт.

36

JD7806

LUBRICATION FITTING

2шт.

37

JD8555

BALL BEARING

1шт.

38

JD9453

BEARING

(SUB JD8554 AND JD8555, THIS APPLICATION)

6шт.

39

E18630

SET SCREW

1шт.

40

JD8554

ECCENTRIC LOCKING COLLAR

1шт.

41

T45159

BRACKET

2шт.

42

19H1815

CAP SCREW

1/2" X 1-1/4"

4шт.
