Запчасти John Deere 90 15 - CONTROL VALVE 50 - HYDRAULIC PUMP AND CONTROL VALVE

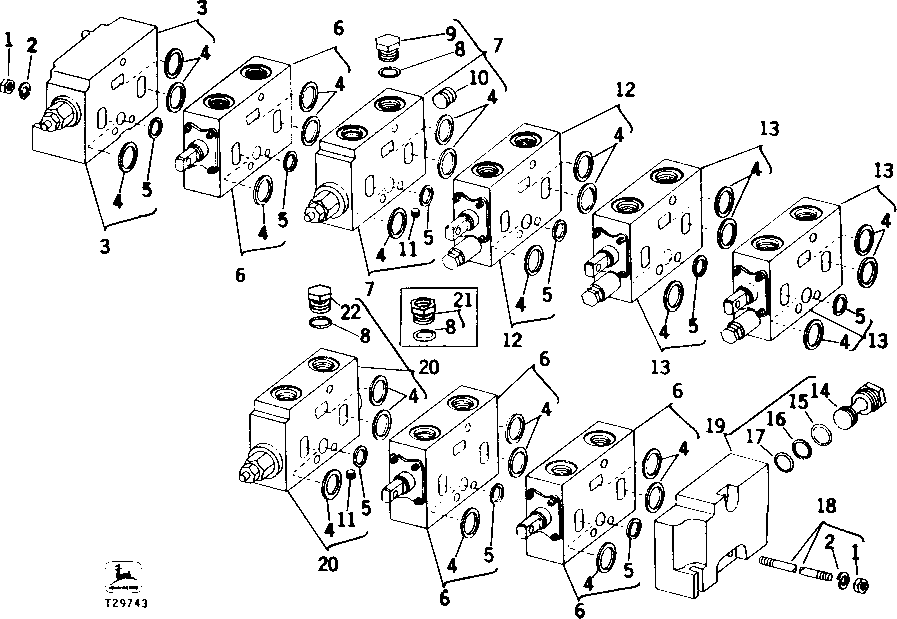

Схема запчастей John Deere 90 - 15 - CONTROL VALVE 50 - HYDRAULIC PUMP AND CONTROL VALVE

Артикул

Название

Примечание

Количество

1

NUT

(SUB AT32219)

1шт.

2

LOCK WASHER

(SUB AT32219)

1шт.

3

AU43590

PORT PLATE

INLET, WITH RELIEF VALVE

1шт.

4

U45843

WASHER

27шт.

5

U45844

WASHER

9шт.

6

AU43592

SPOOL VALVE

DOUBLE-ACTING PROPELLING (USE IF AVAILABLE)

3шт.

7

AT34525

HYD ACTUATED CONTROL VALVE

COMBINED FLOW, MID-SECTION INLET (USE IF AVAILABLE)

1шт.

8

R29936

O-RING

2шт.

9

R36636

FITTING PLUG

1шт.

10

15H562

PIPE PLUG

1", SQ. CTSK, 1"

1шт.

11

15H561

PIPE PLUG

1/2"

2шт.

12

AU43896

VALVE

DOUBLE-ACTING, BOOM

1шт.

13

AU43595

SPOOL VALVE

DOUBLE-ACTING, BUCKET AND CROWD

2шт.

14

U45859

PLUG

1шт.

15

RING

( H35256 NO LONGER AVAILABLE)

1шт.

16

U45861

BACK-UP RING

1шт.

17

T122075

O-RING

(SUB FOR U45860)

1шт.

18

AT32219

STUD

WITH WASHERS AND NUTS

3шт.

19

AU43597

END PLATE

OUTLET, PRESSURE BEYOND

1шт.

20

AU43593

VALVE

SPLIT FLOW, MID-SECTION INLET

1шт.

21

AT32534

ADAPTER FITTING

1шт.

22

R36636

FITTING PLUG

1шт.

CONTROL VALVE

( AT34523 NO LONGER AVAILABLE) (SUB AT41533 IF AVAILABLE)

1шт.

AU44008

KIT

SEAL REPAIR, (SUB U45844 AND (3) U45843)

1шт.

Выбрано товаров: 24
