Запчасти John Deere 90 14 - CONTROL VALVE 50 - HYDRAULIC PUMP AND CONTROL VALVE

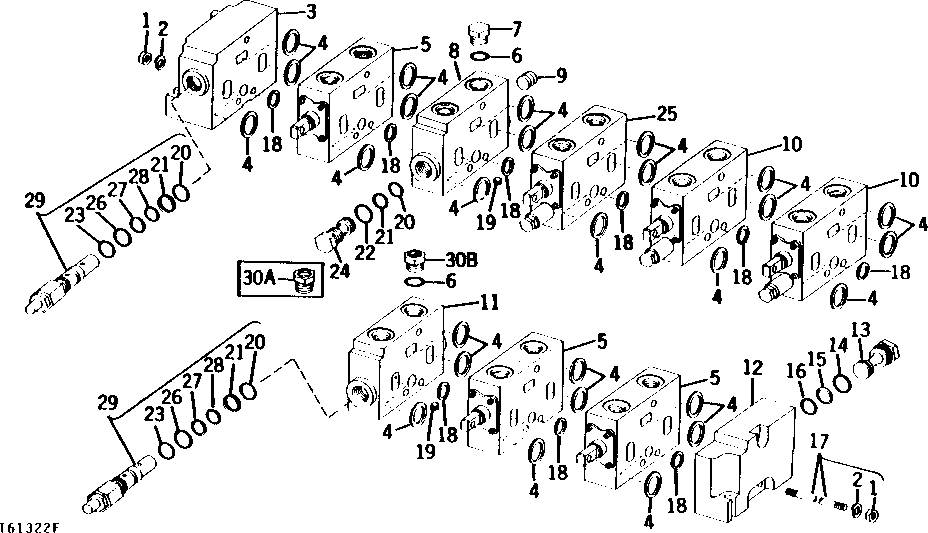

Схема запчастей John Deere 90 - 14 - CONTROL VALVE 50 - HYDRAULIC PUMP AND CONTROL VALVE

Артикул

Название

Примечание

Количество

1

NUT

(SUB AT32219)

1шт.

2

LOCK WASHER

(SUB AT32219)

1шт.

3

AU43590

PORT PLATE

INLET WITH RELIEF VALVE

1шт.

4

U45843

WASHER

27шт.

5

AU43592

SPOOL VALVE

PROPELLING (USE IF AVAILABLE)

3шт.

6

R29936

O-RING

2шт.

7

R36636

FITTING PLUG

1шт.

8

VALVE

COMBINED FLOW MID-SECTION INLET ( AU43594 NO LONGER AVAILABLE)

1шт.

9

15H562

PIPE PLUG

SQ. CTSK., 1"

1шт.

10

AU43595

SPOOL VALVE

BUCKET AND CROWD

2шт.

11

AU43593

VALVE

SPLIT FLOW, MID-SECTION RELIEF

1шт.

12

AU43597

END PLATE

OUTLET, PRESSURE-BEYOND

1шт.

13

U45859

PLUG

1шт.

14

RING

( H35256 NO LONGER AVAILABLE)

1шт.

15

U45861

BACK-UP RING

1шт.

16

T122075

O-RING

(SUB FOR U45860)

1шт.

17

AT32219

STUD

WITH WASHER AND NUTS, (SUB FOR U45862)

3шт.

18

U45844

WASHER

9шт.

19

15H561

PIPE PLUG

1/2"

2шт.

20

U45845

O-RING

3шт.

21

U45847

BACK-UP RING

3шт.

22

U45846

O-RING

1шт.

23

R495R

O-RING

2шт.

24

PLUG

( U46581 NO LONGER AVAILABLE)

1шт.

25

AU43896

VALVE

1шт.

26

R29936

O-RING

2шт.

27

T27963

BACK-UP RING

2шт.

28

T59052

O-RING

2шт.

29

AU43591

PRESSURE RELIEF VALVE

2шт.

30A

AT32534

ADAPTER FITTING

(SUB U41508) (ALSO ORDER R29936)

1шт.

30B

U41508

ADAPTER FITTING

1шт.

AU43287

SOLENOID VALVE

1шт.

AU44008

KIT

SEAL REPAIR, (SUB U45844 AND (3) U45843)

1шт.

Выбрано товаров: 33
