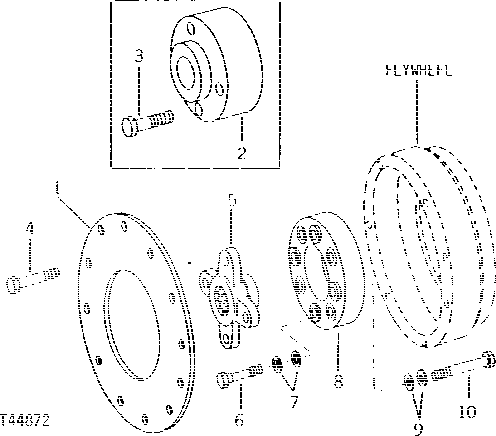

Запчасти John Deere 90 13 - HYDRAULIC PUMP DRIVE MOUNTING PLATE 50 - HYDRAULIC PUMP AND CONTROL VALVE

1

T39215

PLATE

1шт.

2

R55076

HUB

(SUB AT50733 COUPLING, T52434 HUB, (4) 19H3033 CAP SCREWS, (8) T23891 WASHERS, (4) R44888 CAP SCREWS, AND (8) U41514 WASHERS)

1шт.

3

R44724

CAP SCREW

4шт.

4

19H3239

CAP SCREW

3/8" X 1-1/4"

12шт.

5

T52434

HUB

1шт.

6

R44888

CAP SCREW

4шт.

7

U41514

WASHER

8шт.

8

AT50733

COUPLING

BONDED

1шт.

9

T23891

WASHER

8шт.

10

19H3033

SCREW

1/2" X 2"

4шт.
