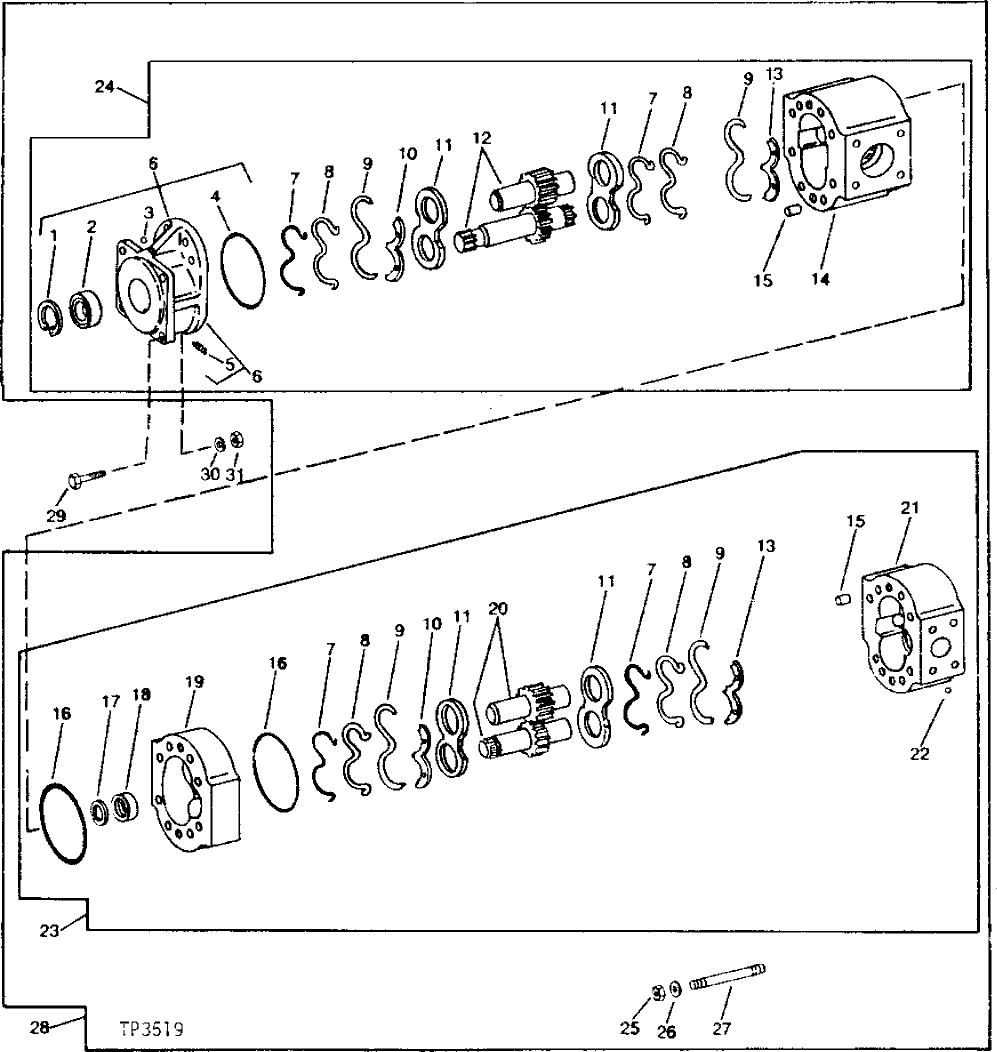

Запчасти John Deere 90 8 - REPLACEMENT HYDRAULIC PUMP 50 - HYDRAULIC PUMP AND CONTROL VALVE

1

N51168

SNAP RING

1шт.

2

T74339

SEAL

(A) (B) (SUB FOR U44858)

1шт.

3

400R

BALL

6.35 MM (1/4")

1шт.

4

T41418

RING

(A) (B)

1шт.

5

15H558

PIPE PLUG

1/8", HEX, CTSK, 1/8"

1шт.

6

PUMP

FLANGE, (SUB AT68548)

1шт.

7

O-RING

(A) (B) ( U44856 USE IF AVAILABLE)

4шт.

8

BACK-UP RING

(A) ( T61673 USE IF AVAILABLE)

4шт.

9

RETAINER

(A) ( U44851 USE IF AVAILABLE)

4шт.

10

PLATE

(A) ( U44848 USE IF AVAILABLE)

2шт.

11

U44846

PLATE

(A)

4шт.

12

KIT

GEAR, (SUB AT68548)

1шт.

13

PLATE

(A) ( U44849 USE IF AVAILABLE)

2шт.

14

HOUSING

(SUB AT68548)

1шт.

15

T64787

DOWEL PIN

6шт.

16

T41419

RING

(A) (B)

2шт.

17

T23694

SNAP RING

1шт.

18

T35445

COUPLING

1шт.

19

PLATE

BEARING, (SUB AT68547)

1шт.

20

KIT

GEAR, (SUB AT68547)

1шт.

21

HOUSING

(SUB AT68547)

1шт.

22

400R

BALL

1шт.

23

AT68547

KIT

PUMP, REAR SECTION

1шт.

24

AT68548

KIT

PUMP, FRONT SECTION

1шт.

25

U44860

NUT

8шт.

26

U44865

WASHER

8шт.

27

T64788

STUD

8шт.

28

AT63058

PUMP

1шт.

29

19H2880

CAP SCREW

1/2" X 1-3/4"

4шт.

30

T20168

WASHER

4шт.

31

14H1040

NUT

1/2", (SUB FOR 14H809)

4шт.

AT72247

KIT

MAJOR REPAIR (SUB FOR AT61568)

1шт.

AT40398

KIT

MINOR REPAIR

1шт.
