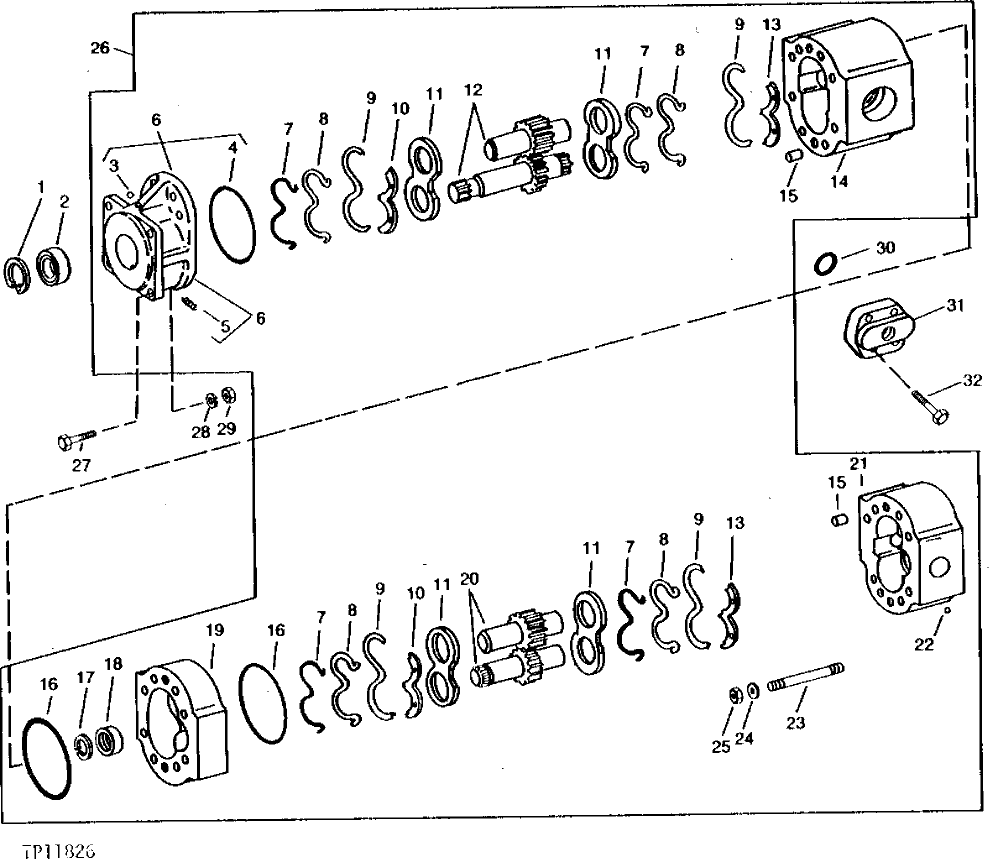

Запчасти John Deere 90 6 - REPLACEMENT HYDRAULIC PUMP 50 - HYDRAULIC PUMP AND CONTROL VALVE

1

N51168

SNAP RING

1шт.

2

T74339

SEAL

(A) (B) (SUB FOR U44858)

1шт.

3

U44850

BALL

2шт.

4

T41418

RING

(A) (B)

1шт.

5

15H558

PIPE PLUG

HEX, CTSK, 1/8"

1шт.

6

AT61565

FLANGE

FLANGE, (SUB AT68548, T60983, U12037 AND (4) 19H3093)

1шт.

7

O-RING

(A) (B) ( U44856 USE IF AVAILABLE)

4шт.

8

BACK-UP RING

(A) ( T61673 USE IF AVAILABLE)

4шт.

9

RETAINER

(A) ( U44851 USE IF AVAILABLE)

4шт.

10

PLATE

(A) ( U44848 USE IF AVAILABLE)

2шт.

11

U44846

PLATE

(A) PRESSURE

4шт.

12

AT61566

KIT

(SUB AT68548, T60983, U12037 AND (4) 19H3093) GEAR

1шт.

13

PLATE

(A) ( U44849 USE IF AVAILABLE)

2шт.

14

AT61562

HOUSING

(SUB AT68548, T60983, U12037 AND (4) 19H3093)

1шт.

15

T64787

DOWEL PIN

6шт.

16

T41419

RING

(A) (B)

2шт.

17

T23694

SNAP RING

(SUB FOR U46421)

1шт.

18

T35445

COUPLING

SPLINE

1шт.

19

AT61564

BEARING

(SUB AT68547, T60983, U12037 AND (4) 19H3093)

1шт.

20

AT61567

KIT

(SUB AT68547, T60983, U12037 AND (4) 19H3093)

1шт.

21

AT61563

HOUSING

(SUB AT68547, T60983, U12037 AND (4) 19H3093)

1шт.

22

H871R

BALL

(SUB FOR U44847 AND T33997)

1шт.

23

T64788

STUD

8шт.

24

U44865

WASHER

8шт.

25

U44860

NUT

8шт.

26

AT60395

PUMP

(SUB AT63058 OR AT63054, (2) T60983, (2) U12037 AND (8) 19H3093)

1шт.

27

19H2880

CAP SCREW

1/2" X 1-3/4"

4шт.

28

12H301

LOCK WASHER

1/2"

4шт.

29

14H1040

NUT

1/2", (SUB FOR 14H809)

4шт.

30

U12037

O-RING

4шт.

31

T60983

FLANGE FITTING

4шт.

32

19H3093

SCREW

3/8" X 1-3/4"

16шт.

AT72247

KIT

MAJOR REPAIR (SUB FOR AT61568)

1шт.

AT40398

KIT

MINOR REPAIR

1шт.
