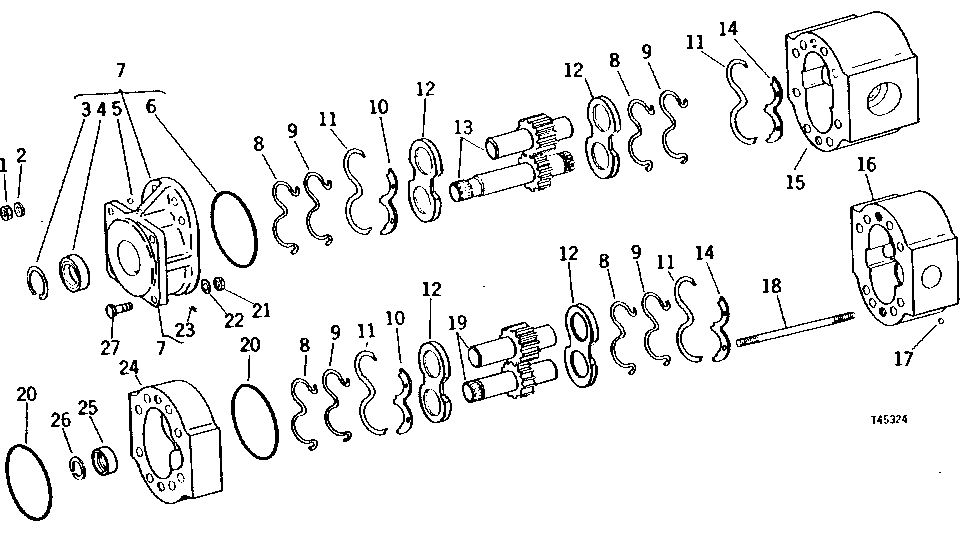

Запчасти John Deere 90 5 - HYDRAULIC PUMP 50 - HYDRAULIC PUMP AND CONTROL VALVE

1

U44860

NUT

8шт.

2

U44865

WASHER

8шт.

3

N51168

SNAP RING

1шт.

4

T74339

SEAL

(A) (B) (SUB FOR U44858)

1шт.

5

U44850

BALL

1/4" DIA

1шт.

6

T41418

RING

(A) (B)

1шт.

7

KIT

FLANGE ( AT40390 NO LONGER AVAILABLE)

1шт.

8

O-RING

(A) (B) ( U44856 USE IF AVAILABLE)

4шт.

9

U44857

BACK-UP RING

(A)

4шт.

10

PLATE

(A) ( U44848 USE IF AVAILABLE)

2шт.

11

RETAINER

(A) ( U44851 USE IF AVAILABLE)

4шт.

12

U44846

PLATE

(A)

4шт.

13

KIT

GEAR IDLER AND DRIVE ( AT40388 USE IF AVAILABLE)

1шт.

14

PLATE

(A) ( U44849 USE IF AVAILABLE)

2шт.

15

HOUSING

( AT36815 USE IF AVAILABLE)

1шт.

16

HOUSING

( AT36813 NO LONGER AVAILABLE)

1шт.

17

H871R

BALL

(SUB FOR U44847 AND T33997)

1шт.

18

T76119

STUD

(SUB FOR T38184)

8шт.

19

KIT

GEAR IDLER AND DRIVE ( AT40389 USE IF AVAILABLE)

1шт.

20

T41419

RING

(A) (B)

2шт.

21

14H1040

NUT

1/2", (SUB FOR 14H809)

4шт.

22

12H301

LOCK WASHER

1/2"

4шт.

23

15H558

PIPE PLUG

HEX. CTSK, 1/8"

1шт.

24

PLATE

( AT40387 USE IF AVAILABLE)

1шт.

25

T35445

COUPLING

SPINE

1шт.

26

U46421

SNAP RING

1шт.

27

19H2880

CAP SCREW

1/2" X 1-3/4"

4шт.

AT36103

HYDRAULIC PUMP

(C) (SUB AT63058 OR AT63054, (2) T60983, (2) U12037 AND (8) 19H3093)

1шт.

AT40397

KIT

MAJOR REPAIR

1шт.

AT40398

KIT

MINOR REPAIR

1шт.
