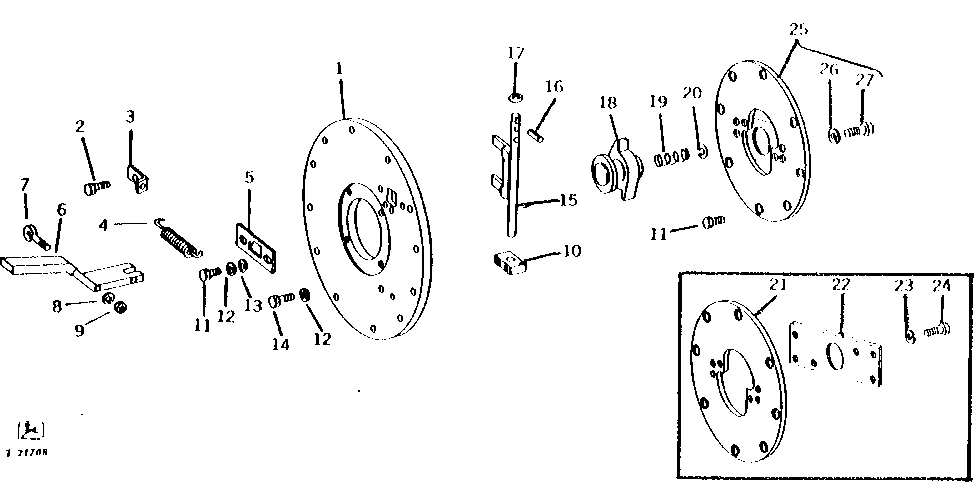

Запчасти John Deere 90 4 - HYDRAULIC PUMP DISCONNECT 50 - HYDRAULIC PUMP AND CONTROL VALVE

1

U45904

SUPPORT

1шт.

2

19H3239

CAP SCREW

3/8" X 1-1/4"

11шт.

19H1765

CAP SCREW

3/8" X 1-3/4"

11шт.

3

U45912

ANGLE

1шт.

4

E10073

SPRING

1шт.

5

HANDLE

(NO LONGER AVAILABLE)

1шт.

6

GUIDE

(NO LONGER AVAILABLE)

1шт.

7

EYEBOLT

( U11216 NO LONGER AVAILABLE)

1шт.

8

24H1284

WASHER

7/32" X 7/8" X 0.065"

1шт.

9

U45916

LOCK NUT

1шт.

10

U45911

GUIDE

2шт.

11

19H1648

CAP SCREW

3/8" X 3/4"

10шт.

12

12H304

LOCK WASHER

3/8"

6шт.

13

24H1307

WASHER

13/32" X 1" X 1/16"

ARшт.

14

19H1732

CAP SCREW

3/8" X 1-1/4"

4шт.

15

AU43601

SUPPORT

1шт.

16

25H72

GROOVE PIN

3/16" X 1"

3шт.

17

24H1341

WASHER

17/32" X 15/16" X 0.060"

2шт.

18

AT50733

COUPLING

(SUB FOR U45908, THIS APPLICATION) (ALSO ORDER (4) 19H3033, (8) T23891, (4) R44888, (8) U41514, AT50733 AND T52434)

1шт.

19

R1614R

SPRING

1шт.

20

T23694

SNAP RING

(SUB FOR U45915)

1шт.

21

U45907

PLATE

(SUB AT33384)

1шт.

22

U46498

PLATE

(SUB AT33384)

1шт.

23

12H304

LOCK WASHER

3/8"

6шт.

24

19H2021

CAP SCREW

3/8" X 5/8"

6шт.

25

T52434

HUB

(SUB FOR AT33384, THIS APPLICATION) (ALSO ORDER AT50733, (4) 19H3033, (8) T23891, (4) R44888, (8) U41514 AND T52434)

1шт.

26

12H304

LOCK WASHER

3/8"

6шт.

27

19H2021

CAP SCREW

3/8" X 5/8"

6шт.
