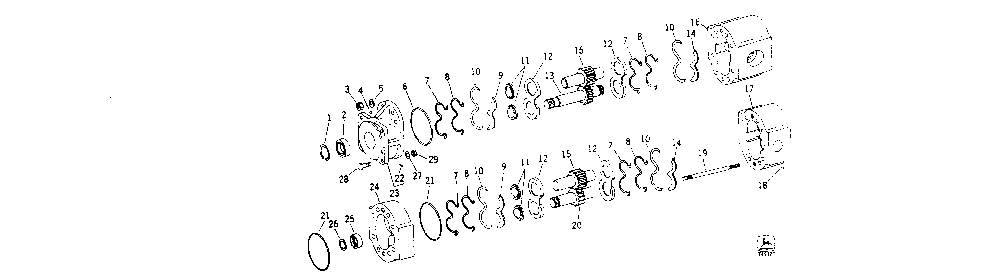

Запчасти John Deere 90 3 - HYDRAULIC PUMP 50 - HYDRAULIC PUMP AND CONTROL VALVE

1

N51168

SNAP RING

1шт.

2

T74339

SEAL

(C) (SUB FOR U44858)

1шт.

3

U44860

NUT

8шт.

4

U44850

BALL

1/4" DIA

1шт.

5

U44865

WASHER

8шт.

6

U44861

O-RING

(C)

1шт.

7

O-RING

(C) ( U44856 USE IF AVAILABLE)

4шт.

8

U44857

BACK-UP RING

(A)

4шт.

9

PLATE

(A) ( U44848 USE IF AVAILABLE)

2шт.

10

RETAINER

(A) ( U44851 USE IF AVAILABLE)

4шт.

11

U44852

WASHER

4шт.

12

U44846

PLATE

(A) DRIVE

4шт.

13

T38183

GEAR

(SUB AT40388 IF AVAILABLE)

1шт.

14

PLATE

(A) ( U44849 USE IF AVAILABLE)

2шт.

15

T38185

GEAR

IDLER, (SUB AT40388 AND AT40389 IF AVAILABLE)

2шт.

16

HOUSING

( AT36815 NO LONGER AVAILABLE)

1шт.

17

HOUSING

( AT36813 NO LONGER AVAILABLE)

1шт.

18

H871R

BALL

(SUB FOR U44847 AND T33997)

1шт.

19

T76119

STUD

(SUB FOR T38184)

8шт.

20

T38186

GEAR

(GEAR KIT) (SUB AT40389 IF AVAILABLE)

1шт.

21

U44863

O-RING

(C)

2шт.

22

15H558

PIPE PLUG

1/8"

1шт.

23

KIT

FLANGE, INCLUDES PIPE PLUG, ( AU43198 ANDAT40390 NO LONGER AVAILABLE)

1шт.

24

AT36814

PLATE

(SUB AT40387 IF AVAILABLE)

1шт.

25

T35445

COUPLING

SPLINE

1шт.

26

U46421

SNAP RING

1шт.

27

12H301

LOCK WASHER

1/2"

4шт.

28

19H2880

CAP SCREW

1/2" X 1-3/4"

4шт.

29

14H1040

NUT

1/2", (SUB FOR 14H809)

4шт.

AT36103

HYDRAULIC PUMP

(B) (SUB AT63058 OR AT63054, (2) T60983, (2) U12037 AND (8) 19H3093)

1шт.

AU43052

KIT

MAJOR REPAIR KIT, (SUB AT40397)

1шт.

AU43054

KIT

MINOR REPAIR KIT, (SUB AT40398)

1шт.
