Запчасти John Deere 90 2 - HYDRAULIC PUMP 50 - HYDRAULIC PUMP AND CONTROL VALVE

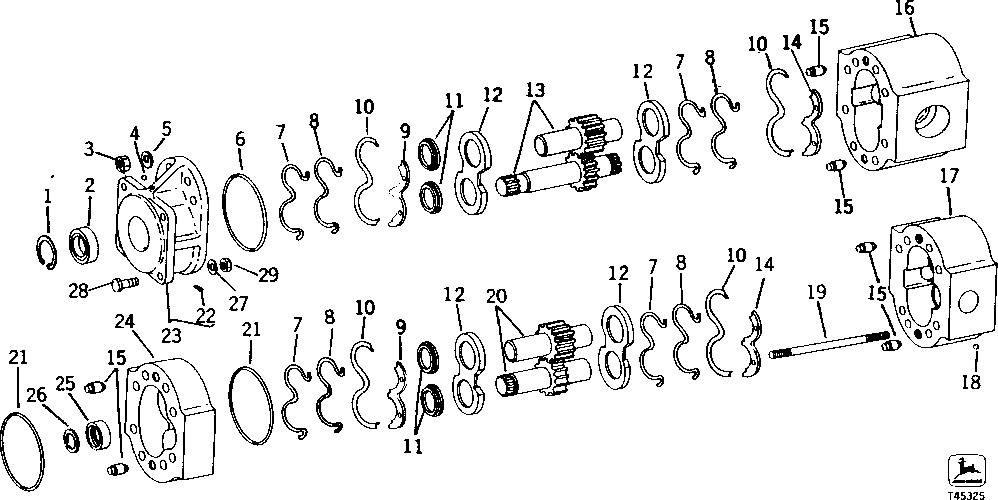

Схема запчастей John Deere 90 - 2 - HYDRAULIC PUMP 50 - HYDRAULIC PUMP AND CONTROL VALVE

Артикул

Название

Примечание

Количество

1

N51168

SNAP RING

1шт.

2

T74339

SEAL

(C) (SUB FOR U44858)

1шт.

3

U44860

NUT

8шт.

4

U44850

BALL

1/4" DIA

1шт.

5

U44865

WASHER

8шт.

6

U44861

O-RING

(C)

1шт.

7

O-RING

(C) ( U44856 USE IF AVAILABLE)

4шт.

8

U44857

BACK-UP RING

(A)

4шт.

9

PLATE

(A) ( U44848 USE IF AVAILABLE)

2шт.

10

RETAINER

(A) ( U44851 USE IF AVAILABLE)

4шт.

11

U44852

WASHER

4шт.

12

U44846

PLATE

(A) PRESSURE

4шт.

13

GEAR

DRIVE AND IDLER ( AU43197 NO LONGER AVAILABLE)

1шт.

14

PLATE

(A) ( U44849 USE IF AVAILABLE)

2шт.

15

U44854

DOWEL PIN

(A)

6шт.

16

HOUSING

( AU43199 NO LONGER AVAILABLE)

1шт.

17

HOUSING

( AU43200 NO LONGER AVAILABLE)

1шт.

18

H871R

BALL

(SUB FOR U44847 AND T33997)

1шт.

19

STUD

( U45128 NO LONGER AVAILABLE)

8шт.

20

AU43056

GEAR

DRIVE AND IDLER

1шт.

21

U44863

O-RING

(C)

2шт.

22

15H558

PIPE PLUG

1/8"

1шт.

23

KIT

FLANGE, INCLUDES PIPE PLUG FLANGE KIT ( AU43198 AND AT40390 NO LONGER AVAILABLE) (FURNISH COMPONENTS FOR REPAIR)

1шт.

24

AU43059

PLATE

BEARING

1шт.

25

T35445

COUPLING

SPLINE

1шт.

26

U46421

SNAP RING

1шт.

27

12H301

LOCK WASHER

1/2"

4шт.

28

19H2880

CAP SCREW

1/2" X 1-3/4"

4шт.

29

14H1040

NUT

1/2", (SUB FOR 14H809)

4шт.

AT34194

HYDRAULIC PUMP

(B) (SUB AT63058 OR AT63054, AT36104, (2) T60983, (2) U12037, (8) 19H3093)

1шт.

AU43052

KIT

MAJOR REPAIR

1шт.

AU43054

KIT

MINOR REPAIR

1шт.

Выбрано товаров: 32
