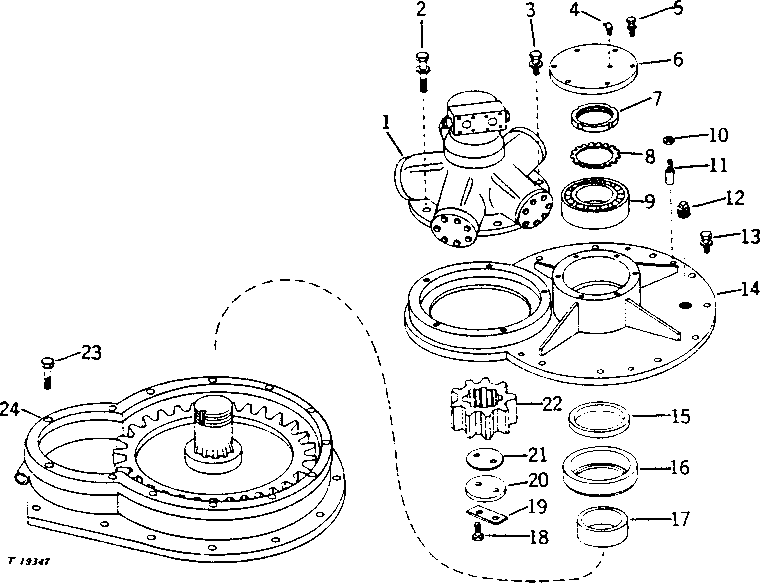

Запчасти John Deere 90 7 - PROPELLING MACHINERY 45 - TRACK AND PLANETARY DRIVE

1

MOTOR

PROPELLING WITH BRAKE VALVE

1шт.

2

19H2655

CAP SCREW

HS, SAE 8, 5/8" X 3-3/4"

4шт.

12H294

LOCK WASHER

5/8"

4шт.

3

19H2672

CAP SCREW

HS, SAE 8, 5/8" X 2"

1шт.

12H294

LOCK WASHER

5/8"

1шт.

4

JD7799

LUBRICATION FITTING

65°, 1/8", (SUB FOR JD7807)

1шт.

5

19H1894

CAP SCREW

3/8" X 3/4"

6шт.

12H304

LOCK WASHER

3/8"

6шт.

6

COVER

( U46129 NO LONGER AVAILABLE)

1шт.

7

U46137

NUT

1шт.

8

U46136

BEARING

1шт.

9

U46135

SPHERICAL ROLLER BEARING

1шт.

10

14H865

NUT

1/2"

2шт.

11

BOLT

( U46148 USE IF AVAILABLE)

2шт.

12

15H562

PIPE PLUG

1", SQ. CTSK, 1"

1шт.

13

19H3135

CAP SCREW

HS, SAE 8, 5/8" X 1-3/8"

9шт.

12H294

LOCK WASHER

5/8"

9шт.

14

COVER

( U46128 NO LONGER AVAILABLE)

1шт.

15

U46134

SEAL

1шт.

16

U46133

RETAINER

1шт.

17

U46132

BUSHING

1шт.

18

CAP SCREW

( 19H3146 NO LONGER AVAILABLE)

2шт.

19

STRAP

( U46127 USE IF AVAILABLE)

1шт.

20

PLATE

( U46126 NO LONGER AVAILABLE)

1шт.

21

U46125

SHIM

2шт.

22

U46124

GEAR

1шт.

23

U45635

BOLT

5шт.

24

CRANKCASE

( U46362 NO LONGER AVAILABLE)

1шт.
