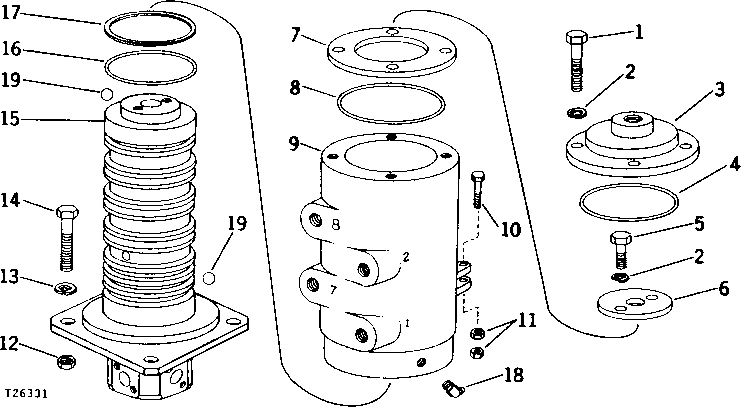

Запчасти John Deere 90 9 - ROTARY MANIFOLD 40 - MAIN FRAME AND UNDERCARRIAGE

1

19H3239

CAP SCREW

3/8" X 1-1/4"

4шт.

2

12H304

LOCK WASHER

3/8"

6шт.

3

U46162

COVER

1шт.

4

A810105

O-RING

(SUB FOR U46158)

1шт.

5

19H3146

CAP SCREW

HS, SAE 8, 3/4" X 7/8"

2шт.

6

U46160

WASHER

1шт.

7

U46159

COVER

1шт.

8

A810105

O-RING

(SUB FOR U46158)

1шт.

9

HOUSING

( U46157, NO LONGER AVAILABLE)

1шт.

T38787

HOUSING

1шт.

10

19H2963

CAP SCREW

9/16" X 3-1/2"

1шт.

11

14H886

NUT

9/16"

2шт.

12

14H865

NUT

1/2"

4шт.

13

12H301

LOCK WASHER

1/2"

4шт.

14

19H2509

CAP SCREW

1/2" X 1-1/2"

4шт.

15

SPINDLE

( U46154 NO LONGER AVAILABLE)

1шт.

T38786

SPINDLE

1шт.

16

AT264418

O-RING

(SUB FOR 4367664, U46155)

6шт.

17

452534

BACK-UP RING

(SUB FOR U46156)

8шт.

18

JD7799

LUBRICATION FITTING

(SUB FOR JD7781, THIS APPLICATION)

1шт.

19

972658

BALL

(SUB FOR T38788)

38шт.

AU43711

UNIVERSAL JOINT

90° (SUB AT37632 IF AVAILABLE)

1шт.

MANIFOLD

( AT37632 USE IF AVAILABLE)

1шт.
