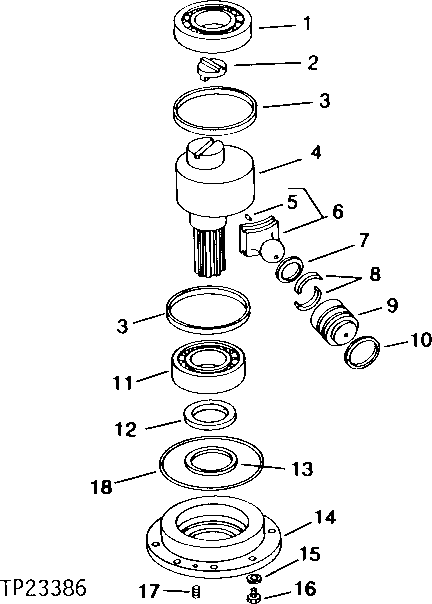

Запчасти John Deere 90 6 - PISTON, CRANKSHAFT AND LOWER COVER 40 - MAIN FRAME AND UNDERCARRIAGE

1

BEARING

( AU43833 USE IF AVAILABLE)

1шт.

2

COUPLING

( U46450 USE IF AVAILABLE)

1шт.

3

U46448

RING

2шт.

4

CRANKSHAFT

( U46444 NO LONGER AVAILABLE)

1шт.

5

ORIFICE

(SUB AT90504 IF AVAILABLE, THIS APPLICATION)

5шт.

6

ROD

( AT90504 USE IF AVAILABLE)

5шт.

7

U46453

RING

5шт.

8

SNAP RING

(5 SETS USED) ( U46447 NO LONGER AVAILABLE)

1шт.

9

PISTON

( U46445 NO LONGER AVAILABLE)

5шт.

10

U46451

PISTON RING

10шт.

11

AU43834

TAPERED ROLLER BEARING

1шт.

12

U46459

SEAL

1шт.

13

PACKING

(NO LONGER AVAILABLE)

1шт.

14

COVER

FRONT ( U46441 USE IF AVAILABLE)

1шт.

15

24H1340

WASHER

33/64" X 7/8" X 0.075"

10шт.

16

19H3127

SCREW

SOCKET-HEAD, 1/2" X 1-1/4"

10шт.

17

SET SCREW

( U46462 NO LONGER AVAILABLE)

4шт.

18

AU43827

SHIM

(ONE SET)

1шт.

MOTOR

HIGH-STRENGTH, 3/8" X 1-1/4" ( AU43825 USE IF AVAILABLE)

1шт.

MOTOR

( AU43831 NO LONGER AVAILABLE)

1шт.
