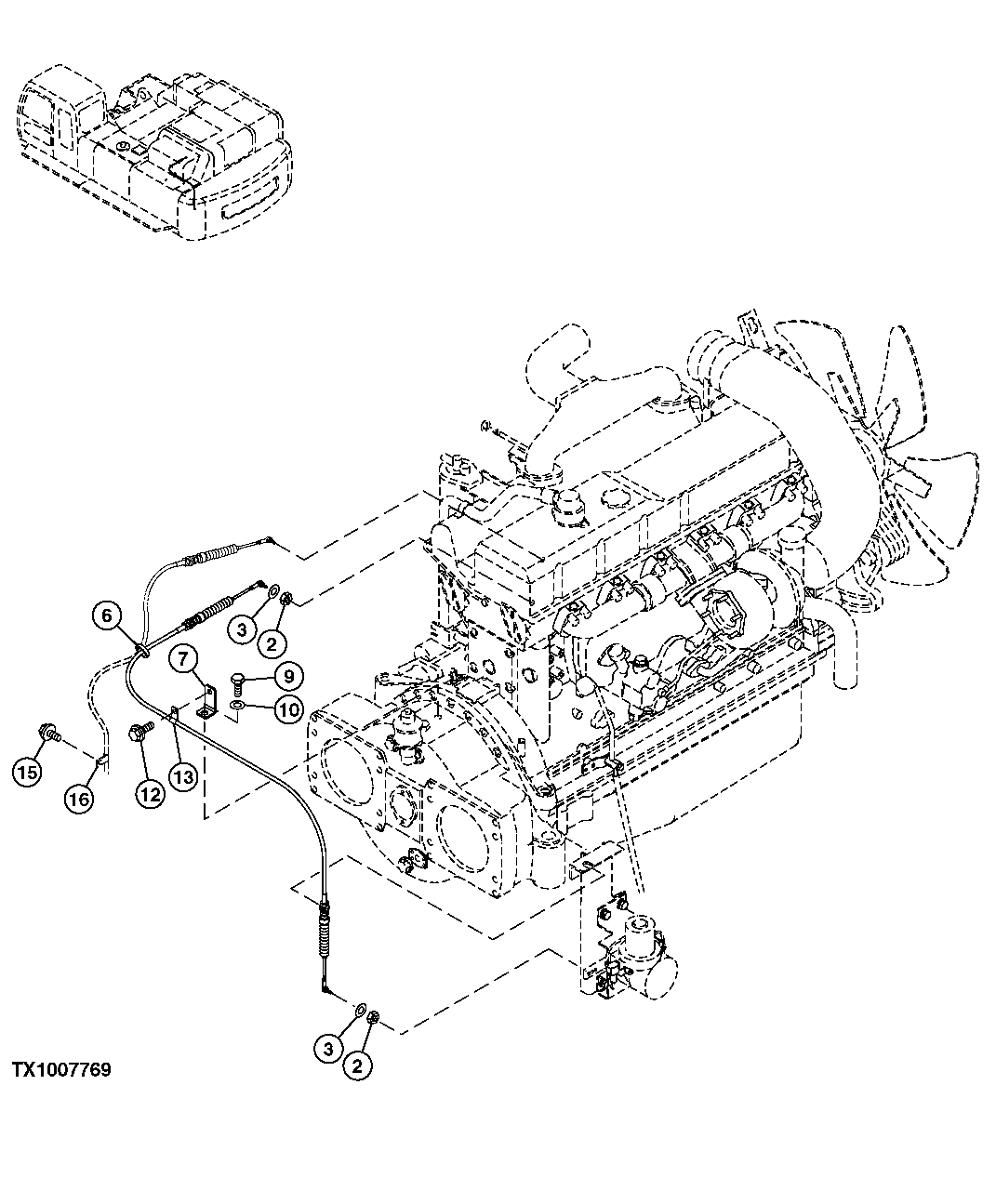

Запчасти John Deere 00C LC 56 - ENGINE CONTROL CABLE 0515 ENGINE SPEED CONTROLS

0

4455115

Cable

1шт.

2

14M7272

Nut

M6

2шт.

3

12M7006

Lock Washer

6 mm

2шт.

6

4146559

Grommet

(SUB FOR TH108788)

1шт.

19M7938

Cap Screw

M10 X 20 Not Illustrated

1шт.

12M7066

Lock Washer

10 mm Not Illustrated

1шт.

7

9758117

Bracket

1шт.

9

19M7394

Cap Screw

M16 X 25 (SUB FOR AT202272 AND J901625)

1шт.

10

24M7053

Washer

17 X 30 X 3 mm

1шт.

12

19M7402

Cap Screw

M10 X 25

1шт.

12M7066

Lock Washer

10 mm

1шт.

13

4190261

Clip

(SUB FOR TH109649)

1шт.

4190261

Clip

2шт.

14

H77698

Tie Band

Not Illustrated

2шт.

15

T30367

Clamp

1шт.

16

19M7402

Cap Screw

M10 X 25

1шт.

12M7066

Lock Washer

10 mm

1шт.

24M7096

Washer

10.500 X 18 X 1.600 mm

1шт.
