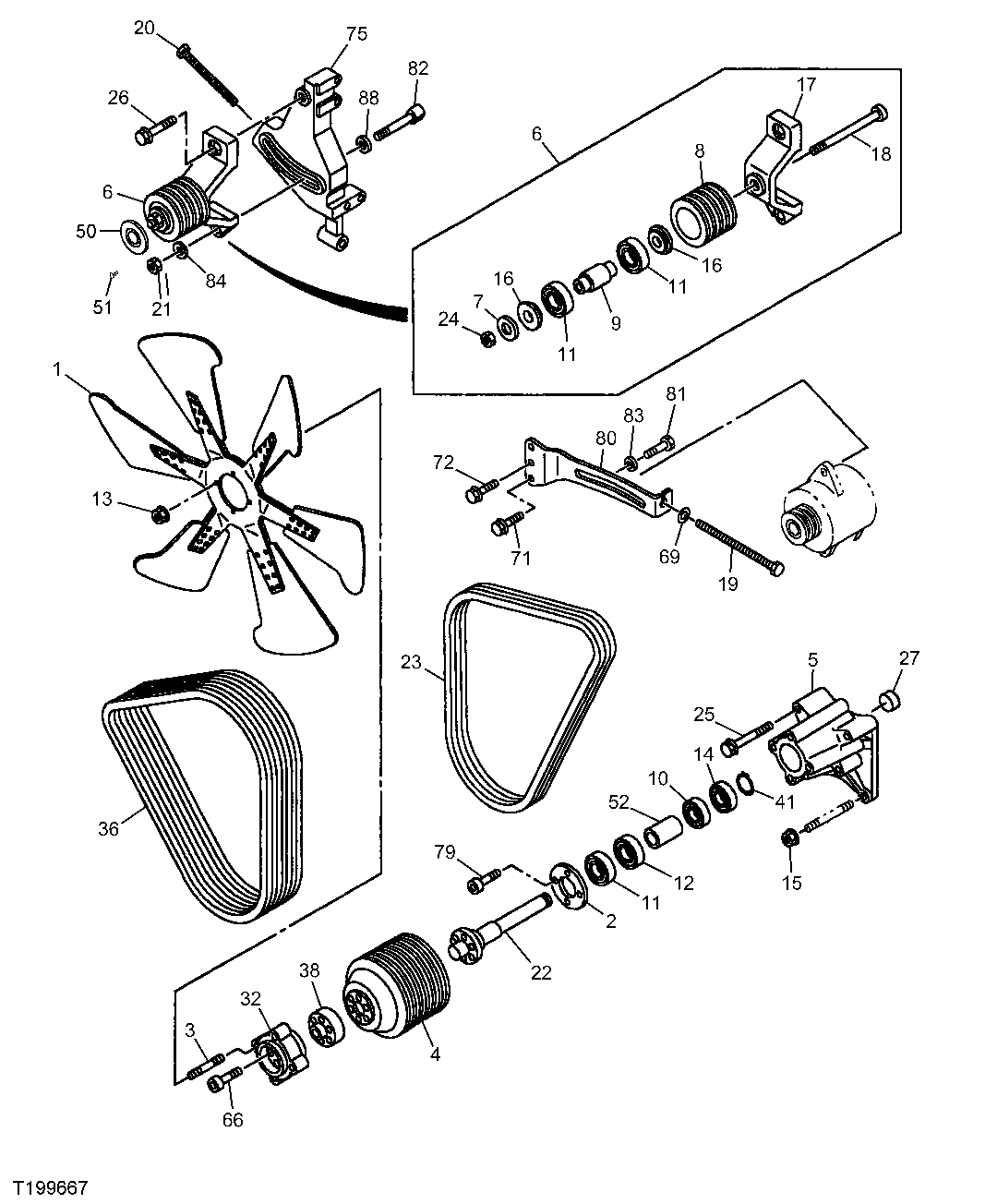

Запчасти John Deere 00C LC 47 - Fan and Belt 0429 FAN DRIVE

1

1136603311

Fan

SUB FOR (1) AT263725, (1) 1136603310 4 Mounting Holes

1шт.

8980622920

Fan

6 Mounting Holes

1шт.

2

8980303470

Plate

SUB FOR AT264056 OR 1136640240

1шт.

3

9098311240

Stud

M10 X 25, LGTH = 45, SUB FOR (1) AT264128

4шт.

9098311240

Stud

M10 X 25, LGTH = 45, SUB FOR (1) AT264128

6шт.

4

1136412020

Pulley

SUB FOR AT263820

1шт.

5

1136610530

Housing

SUB FOR AT264055

1шт.

6

1136603390

Pulley

1шт.

7

9091647240

Washer

1шт.

8

1136631220

Pulley

SUB FOR AT263821

1шт.

9

1136660500

Spacer

SUB FOR AT264062

1шт.

10

1098002920

Bearing

SUB FOR AT263699

2шт.

11

1098002930

Bearing

SUB FOR AT263700

1шт.

12

1098002940

Bearing

SUB FOR AT263701

1шт.

13

0911802100

Nut

SUB FOR 0911501100

4шт.

0911802100

Nut

SUB FOR 0911501100

6шт.

14

1098002950

Bearing

SUB FOR AT263702

1шт.

15

0911802100

Nut

SUB FOR TH4447336, 4447336

2шт.

16

1136640270

Cover

SUB FOR AT264057

1шт.

17

1136680480

Bracket

SUB FOR AT264063

1шт.

18

1136650540

Spindle

SUB FOR AT264059

1шт.

19

1090091131

Bolt

M10 x 135, 1090004800 NLA, SUB FOR AT263893

1шт.

20

1090091830

Bolt

SUB FOR AT263894

1шт.

21

14M7209

Nut

M18 , SUB FOR (1) AT26 4167 AND (1) 9991115180

4шт.

22

8980303450

Shaft

SUB FOR AT264051, 1136310920 OR 1136603400

1шт.

23

1136714890

V-Belt

SUB FOR AT263704

2шт.

24

0911115240

Nut

M24, SUB FOR AT264168 OR 9991115240

1шт.

25

0281560120

Bolt

M10 x 120, SUB FOR (1) AT263870

6шт.

26

1090004800

Bolt

M10 x 50, Flange

2шт.

27

1096000122

Plug

OD = 32, SUB FOR (1) 1096000121SUB FOR (1) AT263792 AND (1) 1096000160 THIS APPLICATION

1шт.

32

1136420770

Adapter Fitting

SUB FOR (1) AT264053 4 Mounting Holes

1шт.

8980302231

Adapter

SUB FOR (1) 8980302230 6 Mounting Holes

1шт.

36

4640542

Flat Belt

SUB FOR 4474619 4 Piece Set

1шт.

38

8980352350

Spacer

SUB FOR AT264054, 113642079 1, 1136420792 OR 1136420793

1шт.

41

9091800320

Snap Ring

ID = 29.6, SUB FOR AT264149

1шт.

50

Isolator

1112911030 NLA

1шт.

51

4488765

Clip

4шт.

52

1136660490

Spacer

SUB FOR AT264061

4шт.

66

Bolt

M10 x 110, Flange

6шт.

69

0916105100

Washer

ID = 10.5, SUB FOR 9091605100 AND AT264142

1шт.

9091607120

Washer

ID = 12, SUB FOR (1) AT264144

1шт.

71

0281810250

Bolt

SUB FOR AT259936

1шт.

72

0281860110

Bolt

SUB FOR AT263869

1шт.

75

8980027990

Bracket

SUB FOR AT264066 OR 11 36743010 OR 1136743011

1шт.

79

0583306140

Bolt

SUB FOR AT263890, 0583106140

1шт.

80

1136742950

Bracket

SUB FOR AT264065

1шт.

81

1136741600

Adjuster

M12 x 45, SUB FOR AT264064

1шт.

82

1136650262

Bolt

SUB FOR AT264058

1шт.

83

9091646160

Washer

OD = 17, OD = 32, SUB FOR (1) AT264146

4шт.

84

0916146200

Washer

ID = 18, SUB FOR (1) AT 264147 OR (1) 9091646200

1шт.

88

1136660211

Washer

SUB FOR AT264060

1шт.
