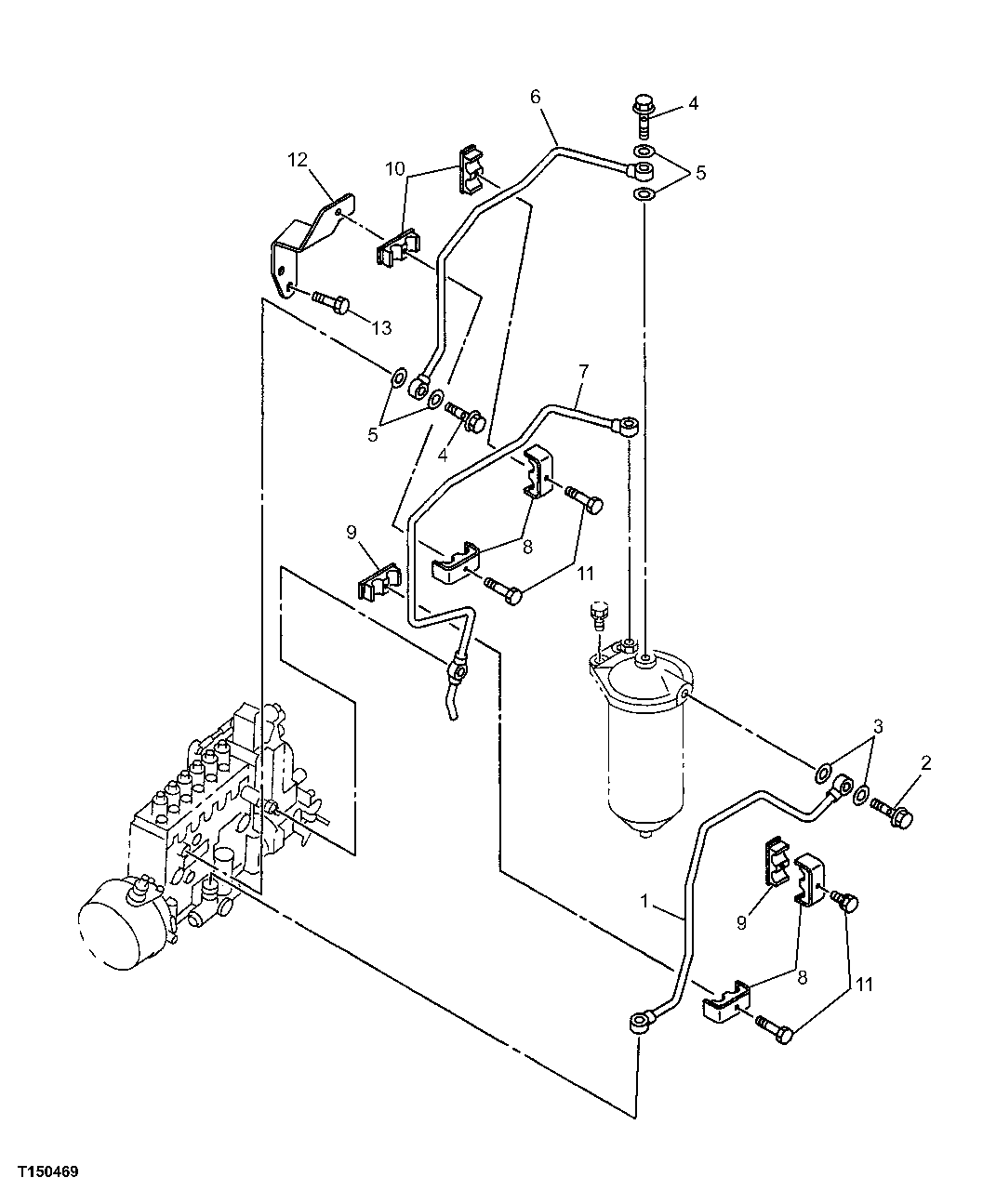

Запчасти John Deere 00C LC 44 - FUEL PUMP AND LINES 0421 FUEL TRANSFER PUMP

1

1154166400

Oil Line

SUB FOR AT263839

1шт.

2

1096750860

Bolt

M14 X 27 Flange SUB FOR AT263712

1шт.

3

8982513450

Packing

(A) SUB FOR AT263852, 44521 65, (B) ID = 14.2, OD = 19.2

2шт.

4

1096750860

Bolt

SUB FOR AT263712, M14 X 27 FLANGE

1шт.

5

Packing

(A) SUB FOR AT263852, 44521 65, (B) ID = 14.2, OD = 19.2

1шт.

6

1154166390

Fuel Line

SUB FOR AT263840

5шт.

7

1154166380

Fuel Line

SUB FOR AT263841

1шт.

8

8943932803

Clip

SUB FOR AT264118, 8943932801 O R 8943932802, ID= 10, LGTH = 25

1шт.

9

8943930391

Clamp

SUB FOR AT264117, ID = 10, LGTH = 25

3шт.

10

1097011800

Clamp

SUB FOR AT263954

1шт.

11

0282806300

Bolt

SUB FOR AT191642 AND A T259921, M6 X 30 FLANGE

5шт.

12

1154196810

Bracket

SUB FOR AT264092

1шт.

13

0280508160

Bolt

SUB FOR AT259924 OR 028 0808160, M8 X 16 FLANGE

2шт.
