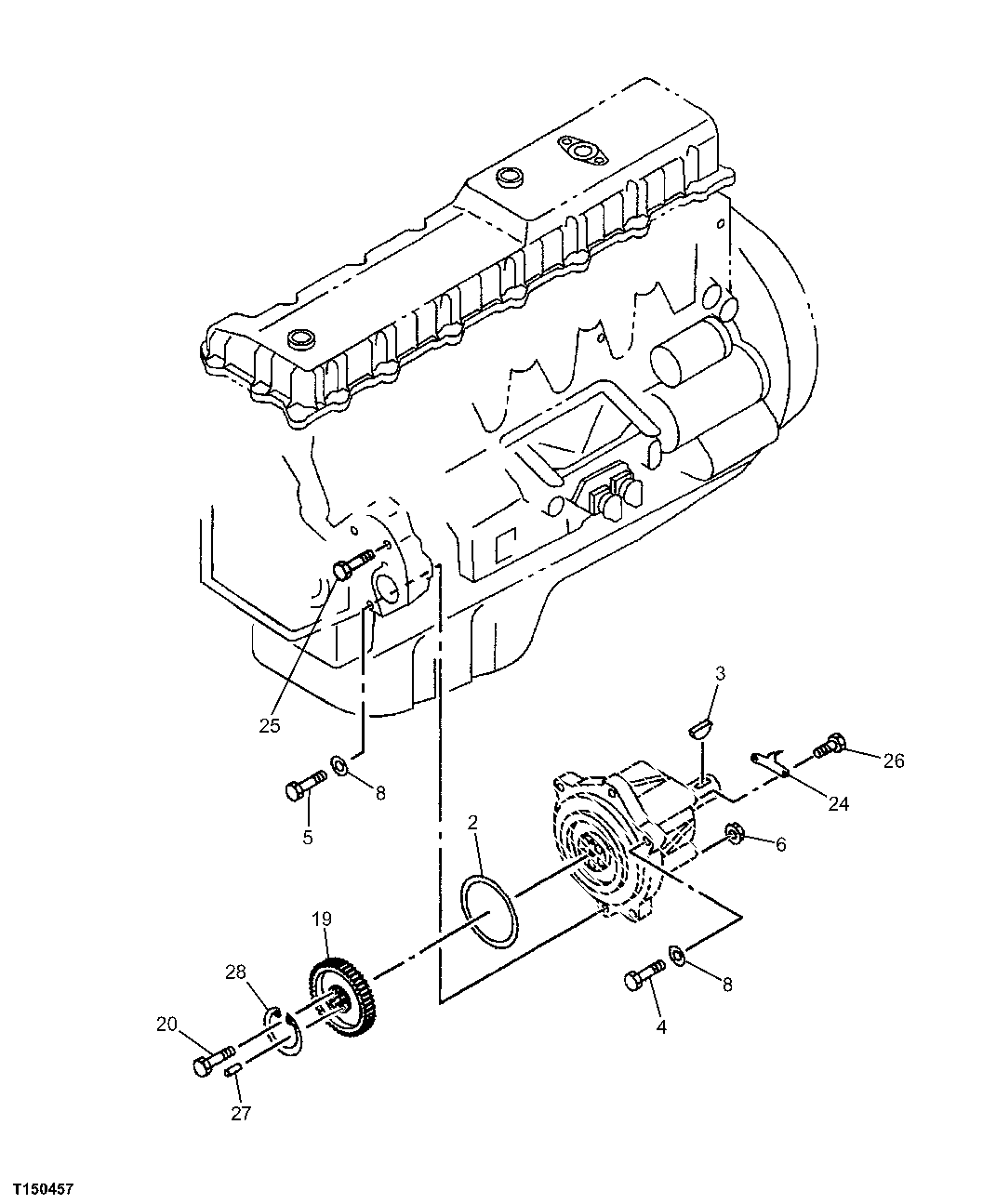

Запчасти John Deere 00C LC 34 - Fuel Injection System Drive Gear 0413 FUEL INJECTION SYSTEM

2

1096234760

O-Ring

(A) SUB FOR AT263784

1шт.

3

9080556220

Shaft Key

SUB FOR AT264135

1шт.

4

8943992531

Bolt

M14 X 128, SUB FOR (1) AT264123

5шт.

5

0169564900

Bolt

M14 X 90, SUB FOR 9916 664900 AND (1) AT264163

1шт.

6

0911801140

Nut

M14, SUB FOR AT263892 OR 0911501140

1шт.

8

9091645140

Washer

ID = 14, SUB FOR (1) AT264145

3шт.

19

1125241641

Gear

Z = 54, SUB FOR (1) AT263997, 1125241640 OR (1) 1125241111

2шт.

20

1090701160

Bolt

M12 X 39 FLANGE, SUB FOR (1) AT263901

1шт.

24

1113270401

Pointer

SUB FOR AT263969

1шт.

25

8943971391

Bolt

M10 X 135, SUB FOR (1) AT264120

1шт.

26

0281510160

Bolt

M10 X 16 FLANGE, SUB FOR (1 ) AT263862 OR (1) 0281810160

1шт.

27

9081505100

Pin

SUB FOR AT264137

2шт.

28

1125290030

Snap Ring

SUB FOR AT263998

1шт.
