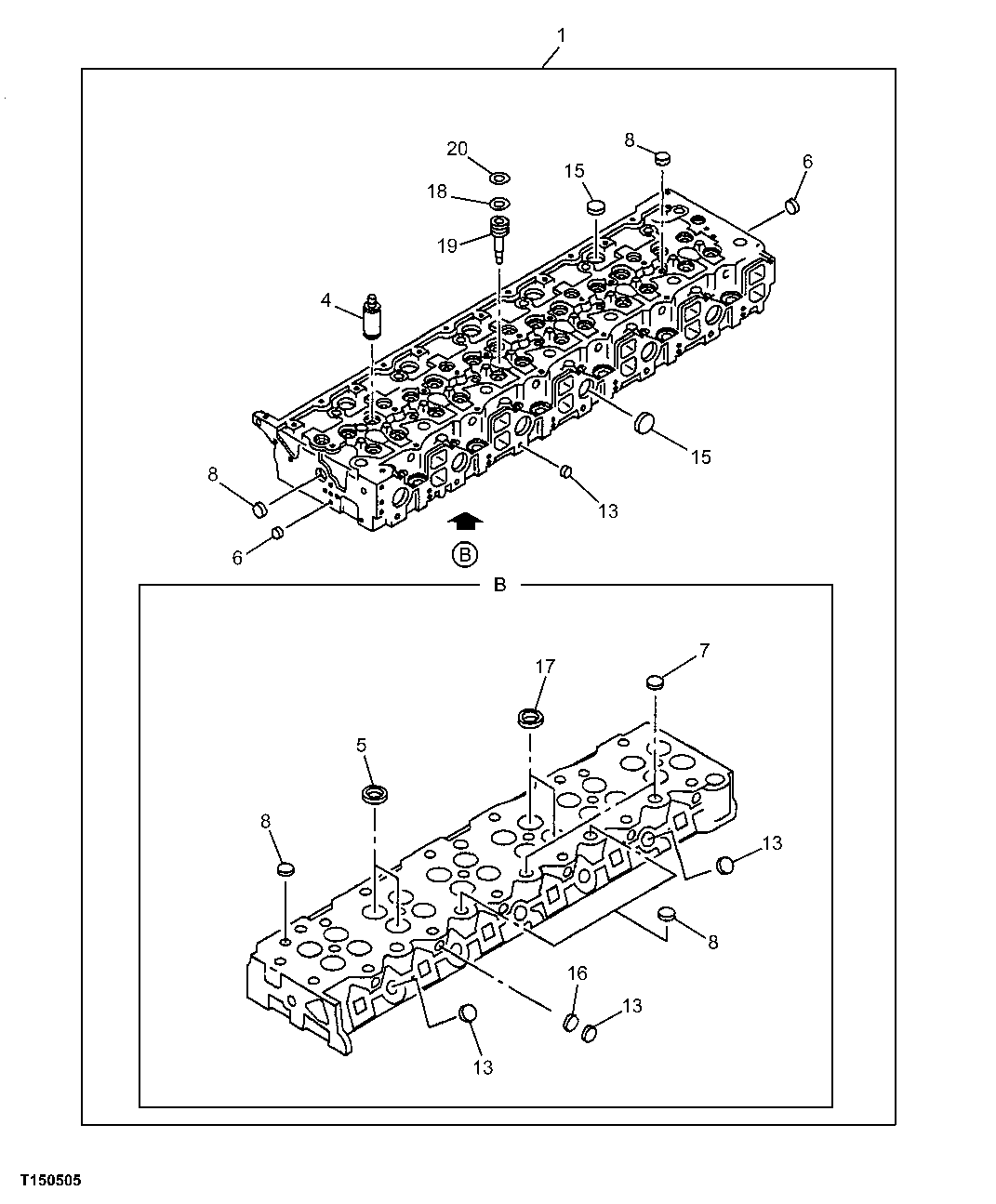

Запчасти John Deere 00C LC 28 - CYLINDER HEAD 0409 CYLINDER HEAD AND VALVES

1

1111109465

Cylinder Head

SUB FOR 1111109464, 1111108619, AT26373 8, 1111109461, 1111109462 OR 1111109463

1шт.

4

1117210120

Guide

SUB FOR AT263737 OR 1117210121

24шт.

5

1117110820

Seat

(SUB FOR AT263847)EXHAUST SUB FOR AT263847

12шт.

6

1111290670

Holder

(SUB FOR AT263741 AND 1111290580)OD = 12.3 SUB FOR AT263741 OR 1111290580

2шт.

7

1096000122

Plug

(SUB FOR AT254809 OR 1096000121)OD = 32 SUB FOR AT254809 OR 1096000121

2шт.

8

1096000160

Plug

(SUB FOR AT263792)OD = 25 SUB FOR AT263792

10шт.

13

5112190080

Plug

(SUB FOR AT263794)OD = 18 SUB FOR AT263794

12шт.

15

8942416370

Plug

(SUB FOR AT259971)OD = 40 SUB FOR AT259971

18шт.

16

5111290060

Seal

(SUB FOR AT254831)OD = 16 SUB FOR AT254831

6шт.

17

1117151121

Seat

(SUB FOR AT263848)INTAKE SU B FOR AT263848 OR 1117151120

12шт.

18

8972331260

O-Ring

SUB FOR AT263768

6шт.

19

1111290670

Holder

SUB FOR AT263741 AND 1111290580

6шт.

20

8980415850

O-Ring

SUB FOR AT263769 OR 8972331270

6шт.
