Запчасти John Deere 00C LC 27 - CYLINDER HEAD 0409 CYLINDER HEAD AND VALVES

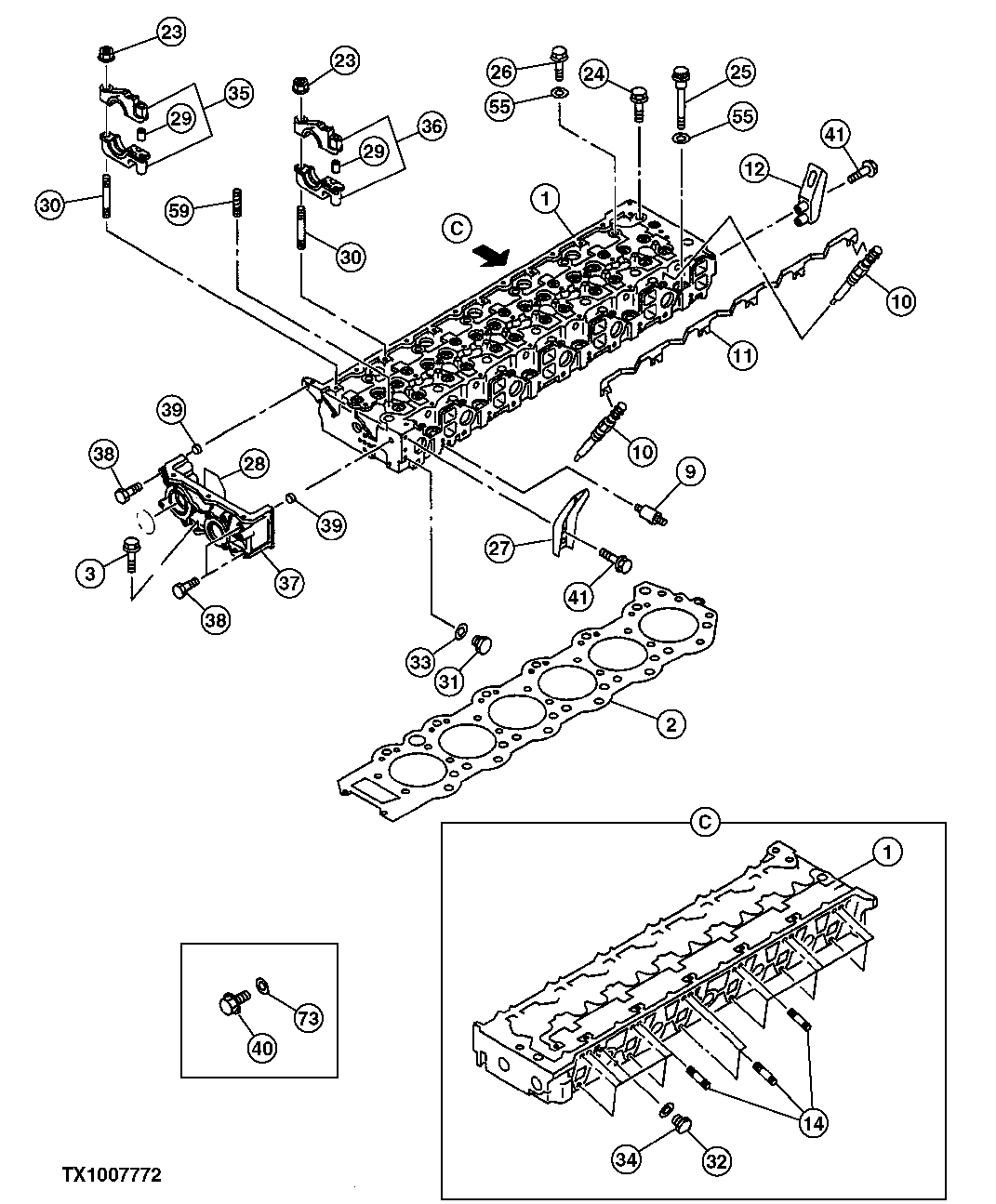

Схема запчастей John Deere 00C LC - 27 - CYLINDER HEAD 0409 CYLINDER HEAD AND VALVES

Артикул

Название

Примечание

Количество

1

1111109465

Cylinder Head

SUB FOR 1111109464, 1111108619, AT26373 8, 1111109461, 1111109462 OR 1111109463

1шт.

2

1111412653

Engine Cylinder Head Gasket

SUB FOR AT263664, 1111412651 OR 1111412652 A lso Included in Gasket Set (Engine and Head)

1шт.

3

0281510350

Bolt

M10 X 35 FLANGE, SUB FOR (1 ) AT263705 OR (1) 0281210350

2шт.

9

1093090080

Stud

M10 X 13, M10 X 17, L = 6 5, SUB FOR (1) AT263823

12шт.

10

1825130452

Glow Plug

SUB FOR AT263675 OR 1825130451

6шт.

11

1197320302

Glow Plug

SUB FOR AT263798 OR 1197320301

1шт.

12

1117771493

Bracket

SUB FOR AT263986 OR 1117771492

2шт.

14

1093020630

Stud

M10 X 95, L = 110, SUB FOR (1) AT263824

18шт.

23

1094400040

Nut

M4 FLANGE, SUB FOR (1) AT263756

14шт.

24

0281562120

Bolt

M12 X 120 FLANGE, SUB FOR 0281862120 OR (1) AT263706

1шт.

25

1090701410

Bolt

M18 X 115 FLANGE, SUB FOR (1) AT263707

6шт.

26

8982455410

Bolt

M18 X 159, SUB FOR (1) AT263708 OR 1090701420

20шт.

27

1117772162

Hanger

SUB FOR 1117772161 OR AT263987

1шт.

28

1096234030

Gasket

SUB FOR AT263767 Also Included in Gasket Set (Engine and Head)

1шт.

29

1131190050

Dowel Pin

OD = 16, SUB FOR (1) AT264019

28шт.

30

8943973220

Stud

M12 X 100, L = 120, SUB FOR (1) AT264121

14шт.

31

1096040940

Plug

M10 X 7, SUB FOR (1) AT263919

1шт.

32

8980034160

Plug

M8 X 6, SUB FOR AT264124 OR 8943994210

1шт.

33

1096300830

Gasket

ID = 10.2, SUB FOR (1) AT263939

1шт.

34

1096300830

Gasket

ID = 14.2, OD = 19.2, SUB FOR (1) AT263939

1шт.

35

1125161481

Bracket

SUB FOR AT263994

1шт.

36

1125161521

Bracket

SUB FOR AT263995

6шт.

37

1113100551

Case

SUB FOR AT263966 AND 1113100550

1шт.

38

9059210800

Bolt

M10 X 80, SUB FOR (1) AT264134

7шт.

39

1131190040

Dowel Pin

SUB FOR AT264018

2шт.

40

1096040940

Plug

M14 X 9, SUB FOR (1) AT263919

1шт.

41

0281612500

Bolt

M12 X 50 FLANGE, SUB FOR 0281912500 OR (1) AT263873

4шт.

55

1095030320

Washer

SUB FOR AT263910

26шт.

59

1117290050

Guide

SUB FOR AT263981 OR 8973780210

12шт.

73

1096301410

Gasket

ID = 14.2, OD = 25, SUB FOR (1) AT263946 Al so Included in Gasket Set (Engine and Head)

2шт.

Выбрано товаров: 30
