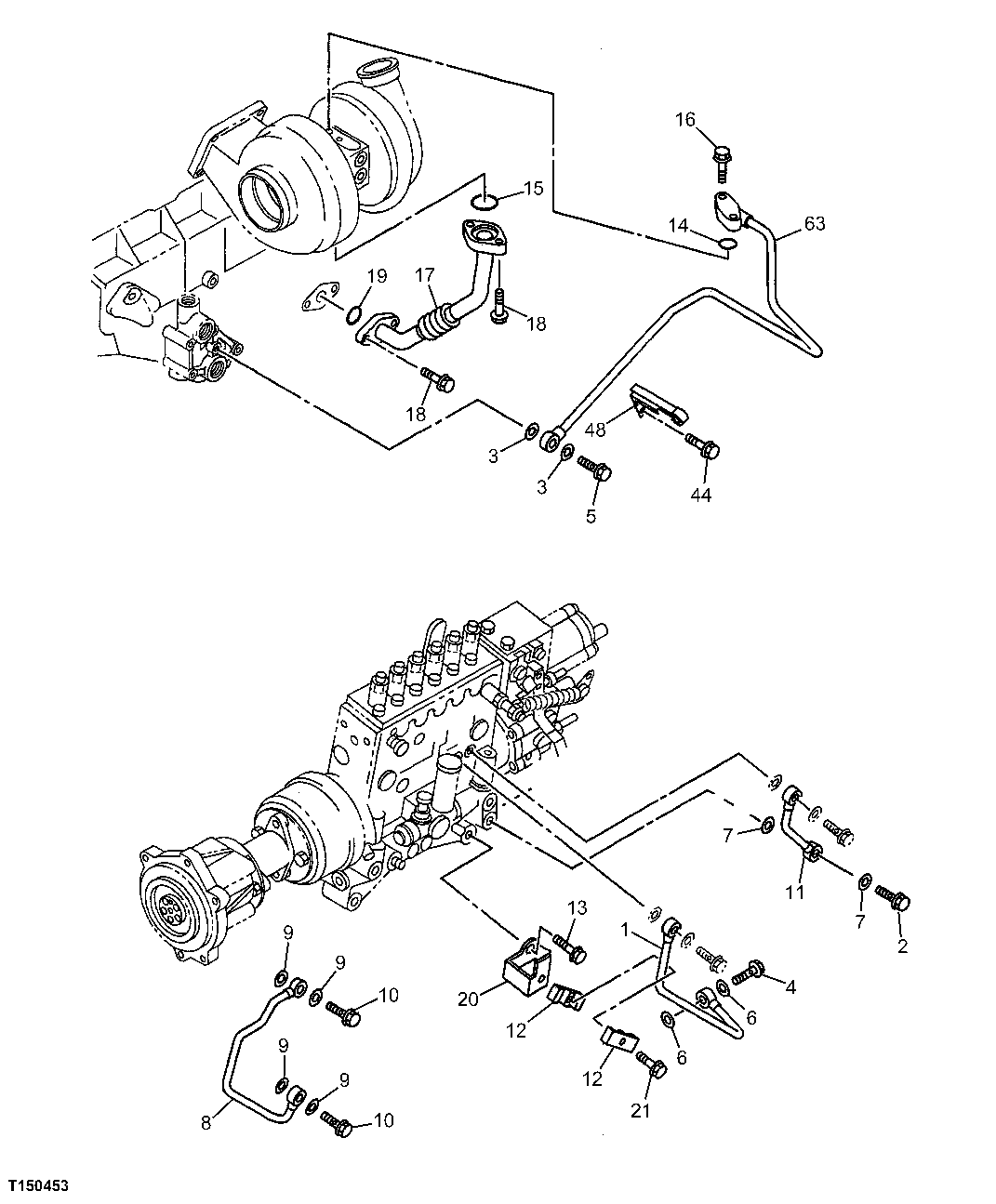

Запчасти John Deere 00C LC 23 - ENGINE OIL AND VACUUM LINES 0407 ENGINE OILING SYSTEM

1

1133136650

Oil Tube

SUB FOR AT264041

1шт.

2

1096750860

Bolt

M14 X 27 FLANGE, SUB FOR AT263712

1шт.

3

1096300840

Gasket

(A) SUB FOR AT263940(B) ID = 12.2

2шт.

4

1096751200

Eyebolt

M18 X 26, SUB FOR AT263950

1шт.

5

1096751600

Bolt

M12 X 27 FLANGE, SUB FOR AT263951

1шт.

6

1096300870

Gasket

(A) SUB FOR AT263942( B) ID = 18.2, OD = 24.4

2шт.

7

8982513450

Packing

(A) SUB FOR AT263852 OR 4452 165, (B) ID = 14.2, OD = 19.2

2шт.

8

1133136420

Oil Tube

SUB FOR AT264040

1шт.

9

1096300830

Gasket

(A) SUB FOR AT263939(B) ID = 10.2

2шт.

10

1096750770

Bolt

M10 X 21 FLANGE, SUB FOR AT263949

2шт.

11

1133134490

Oil Tube

SUB FOR AT264039

1шт.

12

1097011321

Clip

SUB FOR AT263953 OR 109 7011320 ID = 15, L = 30

2шт.

13

0281510160

Bolt

MX10 X 16 FLANGE, SUB FO R AT263862 OR 0281810160

1шт.

14

1096232740

Packing

(A) SUB FOR AT263924 ID = 1038

1шт.

15

1096234500

Packing

(A) SUB FOR AT263928 ID = 2737

1шт.

16

0281510350

Bolt

M10 X 35 FLANGE, SUB FO R AT263705 OR 0281210350

2шт.

17

1133133190

Oil Tube

SUB FOR AT264038

1шт.

18

0281810300

Bolt

M10 X 30 FLANGE, SUB FOR AT263863

4шт.

19

1096234500

Packing

(A) SUB FOR AT263928(B) ID = 27.7

1шт.

20

1133451880

Bracket

SUB FOR AT264046

1шт.

21

0286506350

Bolt

M6 X 35 FLANGE, SUB FOR AT263 874, 0286806350 OR 8940121210

1шт.

44

0287810200

Bolt

M10 X 20 FLANGE, SUB FOR AT263877

1шт.

48

8943188001

Clip

SUB FOR AT264113

1шт.

63

1133138890

Oil Tube

SUB FOR AT264043

1шт.
