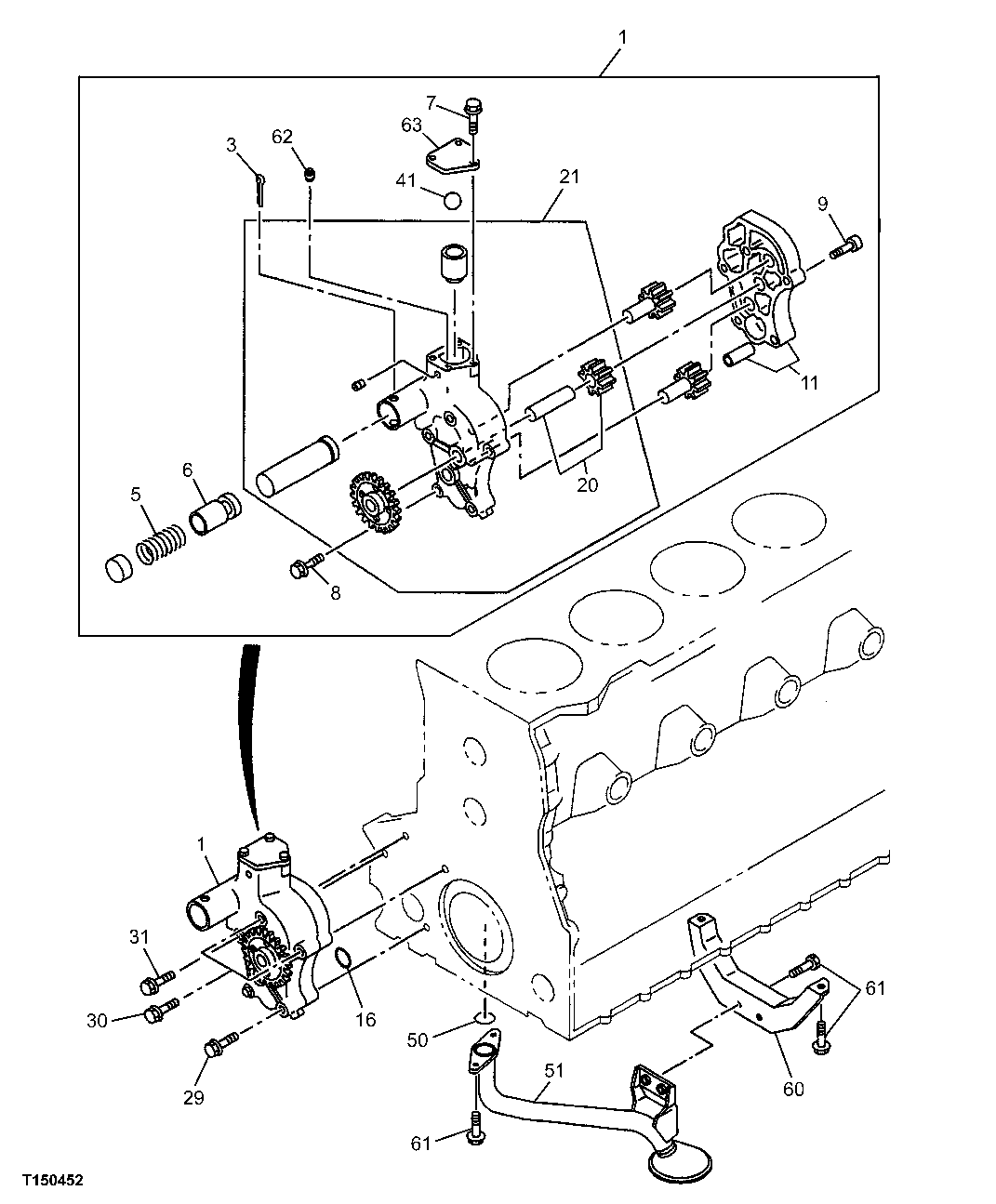

Запчасти John Deere 00C LC 22 - OIL PUMP AND OIL STRAINER 0407 ENGINE OILING SYSTEM

1

8982769880

Pump

ALSO ORDER (2) 8943973591 (2) 028 1510600 AND 8982602600, SUB FOR 11 31002751, 1131003121 AND 113100312 2

1шт.

8943973591

Bolt

2шт.

0281510600

Bolt

2шт.

8982602600

Strainer

1шт.

3

Cotter Pin

L = 60 NLA AT264136

1шт.

5

1095805340

Spring

SUB FOR AT263914

1шт.

6

Relief Valve

NLA AT264023

1шт.

7

0280808180

Bolt

M8 X 18 Flange SUB FOR AT263856

3шт.

8

19M7742

Cap Screw

M10 X 65 M10 X 60 FLANGE SU B FOR 0168060650 OR AT263711

1шт.

9

AT264133

Bolt

M8 X 35 SOCKET HEAD

2шт.

11

AT264017

Cover

1шт.

16

1096235290

Seal

SUB FOR AT263934

1шт.

20

Gear

1131200800 USE UNTIL EX HAUSTED SUB FOR AT264020

1шт.

21

1131200891

Gear

SUB FOR 1131200880, 1131200 890, AT264021 OR 11310200821

1шт.

29

8943973591

Bolt

M10 X 85 FLANGE SUB FOR AT264122

1шт.

30

8943994881

Bolt

M10 X 107 FLANGE SUB FOR AT264125

2шт.

31

9059210800

Bolt

M10 X 80 SUB FOR AT264134

1шт.

41

AT264022

Ball

1шт.

50

1096235290

Seal

SUB FOR AT263934

1шт.

51

1133138853

Strainer

SUB FOR AT264042 OR 1133138852

1шт.

60

1133451801

Bracket

SUB FOR AT264045

1шт.

61

4447337

Bolt

M10 X 20 FLANGE SUB FOR AT259935 OR 0281810200

6шт.

62

AT264024

Plug

1шт.

63

AT264025

Cover

1шт.
