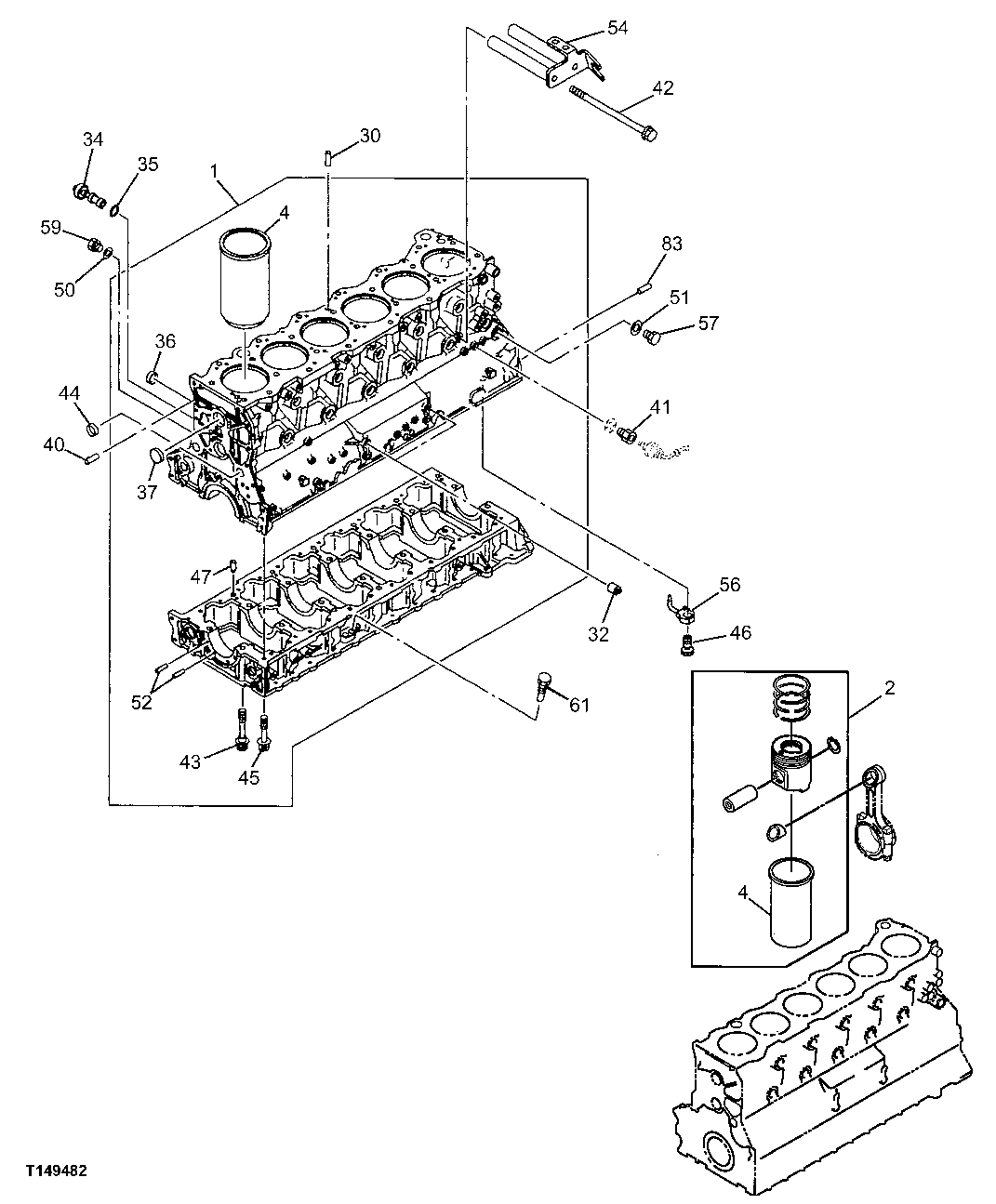

Запчасти John Deere 00C LC 20 - CYLINDER BLOCK 0404 CYLINDER BLOCK

1

Cylinder Block

1шт.

2

1878137120

Piston-Liner Kit

SUB FOR 1878120711, AT263686, AT 263686, 1878120712 OR 1878127731

6шт.

1878137130

Piston-Liner Kit

SUB FOR AT263687, 1878120720, 187 8120721, 1878120722 OR 1878127741

6шт.

4

Cylinder Liner

OD GRADE = 1X, ID GRADE = NON

6шт.

Cylinder Liner

OD GRADE = 3X, ID GRADE = NON

6шт.

30

9081510180

Dowel Pin

(SUB FOR AT264138)OD = 10, L = 18 SUB FOR (1) AT264138

3шт.

32

8943255061

Dowel Pin

SUB FOR AT264114

2шт.

34

1131600303

Pressure Relief Valve

SUB FOR AT263845 OR 1131600302

1шт.

35

1096232970

Gasket

SUB FOR AT263770

1шт.

36

1096000651

Plug

(SUB FOR AT263797, 1096000650)OD = 40 SUB FOR (1) AT263797 AND (1) 1096000650

2шт.

40

Dowel Pin

OD=10, L=18

2шт.

41

8943998582

Adapter Fitting

SUB FOR AT263688

1шт.

42

0281560150

Bolt

(SUB FOR AT263871)M10 X 150 FLAN GE SUB FOR AT263871 OR 0281860150

2шт.

43

1090701510

Bolt

(SUB FOR AT263903)M18 X 150 SUB FOR (1) AT263903

14шт.

45

1090700873

Bolt

(SUB FOR AT263709)M12 X 114 SU B FOR (1) AT263709OR 1090700872

28шт.

46

1133490140

Bolt

SUB FOR AT264047

6шт.

47

1097400681

Dowel Pin

SUB FOR AT263957

2шт.

50

1096300840

Gasket

(SUB FOR AT263940)ID = 1 2.2 SUB FOR (1) AT263940

1шт.

51

1096300890

Gasket

(SUB FOR AT263944)ID = 22 SUB FOR (1) AT263944

1шт.

52

1097490251

Dowel Pin

(SUB FOR AT263958)L = 25 SUB FOR (1) AT263958

2шт.

54

1233355320

Bracket

SUB FOR AT264107

1шт.

56

1133421392

Orifice

SUB FOR 1133421391, 1133421390 OR AT263754

6шт.

57

1096040350

Plug

(SUB FOR AT263916)M22 X 12 SUB FOR (1) AT263916

1шт.

59

1096040950

Plug

(SUB FOR AT263920)M12 X 9 SUB FOR (1) AT263920

1шт.

61

1096040980

Plug

SUB FOR AT263921

1шт.

83

9081514280

Pin Fastener

SUB FOR AT264139

2шт.
