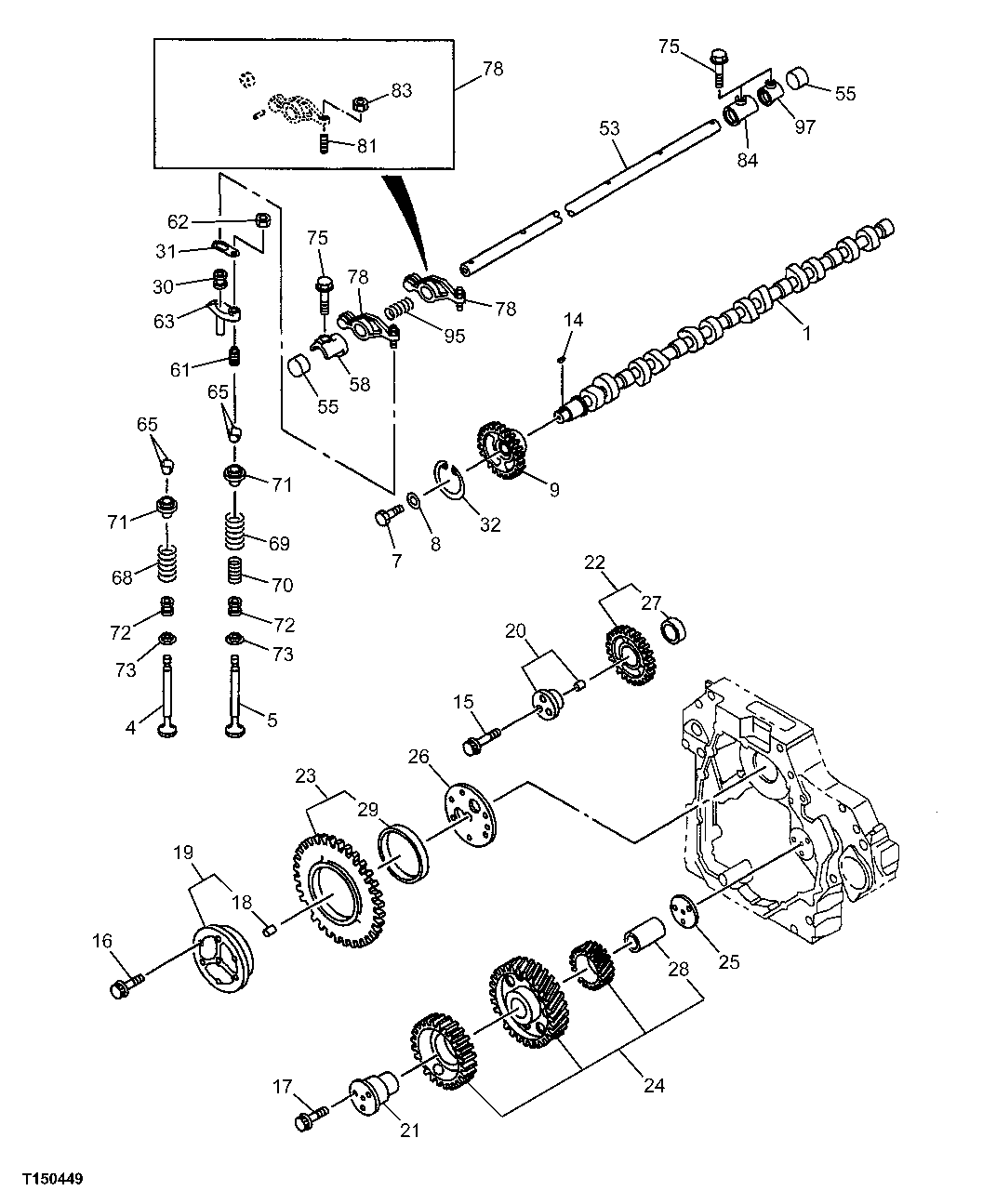

Запчасти John Deere 00C LC 19 - CAMSHAFT AND VALVE 0402 CAMSHAFT AND VALVE ACTUATING MEANS

1

1125112552

Camshaft

SUB FOR AT263817

1шт.

4

1125511516

Valve

SUB FOR AT263850, 1125511510, 1125511511, 1125511512, 1125511 513, 1125511514, OR 1125511515

1шт.

5

1125521092

Valve

SUB FOR 1125521091, AT263849 OR 1125521090

1шт.

7

9920614280

Bolt

(SUB FOR AT264164)M14 X 28 SUB FOR AT264164

1шт.

8

9098518503

Washer

(SUB FOR AT264152)ID = 14.5 SUB FOR AT264152

2шт.

9

1125220601

Gear

(SUB FOR AT263731 OR 1125220552)Z = 54 S UB FOR 1125220600, AT263731 OR 1125220552

1шт.

14

9080555160

Key

SUB FOR AT263746

12шт.

15

0281810400

Bolt

(SUB FOR AT263710)M10 X 4 0 FLANGE SUB FOR AT263710

1шт.

16

19M7742

Cap Screw

M10 X 65 (SUB FOR 0168060650 ) (SUB FOR AT263711)M10 X 60 FLANG E SUB FOR 0168060650 OR AT263711

1шт.

17

Bolt

M12 X 114

1шт.

18

9081612320

Dowel Pin

SUB FOR AT264140

1шт.

19

1125310762

Shaft

SUB FOR AT263813 OR 1125301761

1шт.

20

1125310922

Shaft

SUB FOR 1125310921 OR AT263814

1шт.

21

1125310931

Shaft

SUB FOR AT263815

1шт.

22

1125232153

Gear

SUB FOR AT263733

1шт.

23

1125233130

Gear

SUB FOR AT263734

1шт.

24

1125233340

Idler Gear

SUB FOR AT263735

1шт.

25

1125350081

Bushing

SUB FOR AT263999

1шт.

26

1125350190

Bushing

SUB FOR AT264000

12шт.

27

8980811680

Bushing

SUB FOR 1093301080 OR AT263718

1шт.

28

8980811670

Bushing

SUB FOR 1093301130 OR AT263719

1шт.

29

1093301241

Bushing

SUB FOR AT263906 OR 1093301240

12шт.

30

1126160400

Cap

SUB FOR AT264011

1шт.

31

1126190112

Plate

SUB FOR AT264012

1шт.

32

1125290030

Snap Ring

SUB FOR AT263998

1шт.

53

1126210900

Shaft

SUB FOR AT264013

12шт.

55

5112190080

Plug

SUB FOR AT264155 OR 9111290820

12шт.

58

1126280703

Bracket

SUB FOR AT264015, 1126280701 OR 1126280702

48шт.

61

1126160420

Screw

SUB FOR AT264157 OR 9126160530

12шт.

62

14M7500

Nut

M10 (SUB FOR AT264151 AND 909840310 0)M10 SUB FOR AT264151 OR 9098403100

12шт.

63

1126112773

Drawer Slide

SUB FOR AT264009, 1126112771 OR 1126112772

12шт.

65

1125650070

Bushing

SUB FOR AT264006

24шт.

68

8976033050

Spring

SUB FOR AT264001 OR 1125610920

24шт.

69

1125610930

Spring

SUB FOR AT264002

24шт.

70

1125620600

Spring

SUB FOR AT264003

7шт.

71

1125630550

Plate

SUB FOR AT264004

12шт.

72

1125690200

Seal

SUB FOR AT264007

12шт.

73

1125630562

Plate

SUB FOR AT264005

12шт.

75

1090440871

Bolt

(SUB FOR AT263899)M12 X 97 W/FLANGE SUB FOR AT263899

5шт.

78

1126100611

Rocker Arm

SUB FOR AT264008

6шт.

81

1126160341

Screw

SUB FOR AT264010

1шт.

83

9991105120

Nut

SUB FOR AT264166

3шт.

84

1126280682

Bracket

(SUB FOR AT264014 OR 1126280681)M 12 SUB FOR AT264014 OR 1126280681

6шт.

95

1095804721

Spring

SUB FOR AT263913

1шт.

97

1126280723

Bracket

SUB FOR AT264016, 1126280721 OR 1126280722

1шт.
