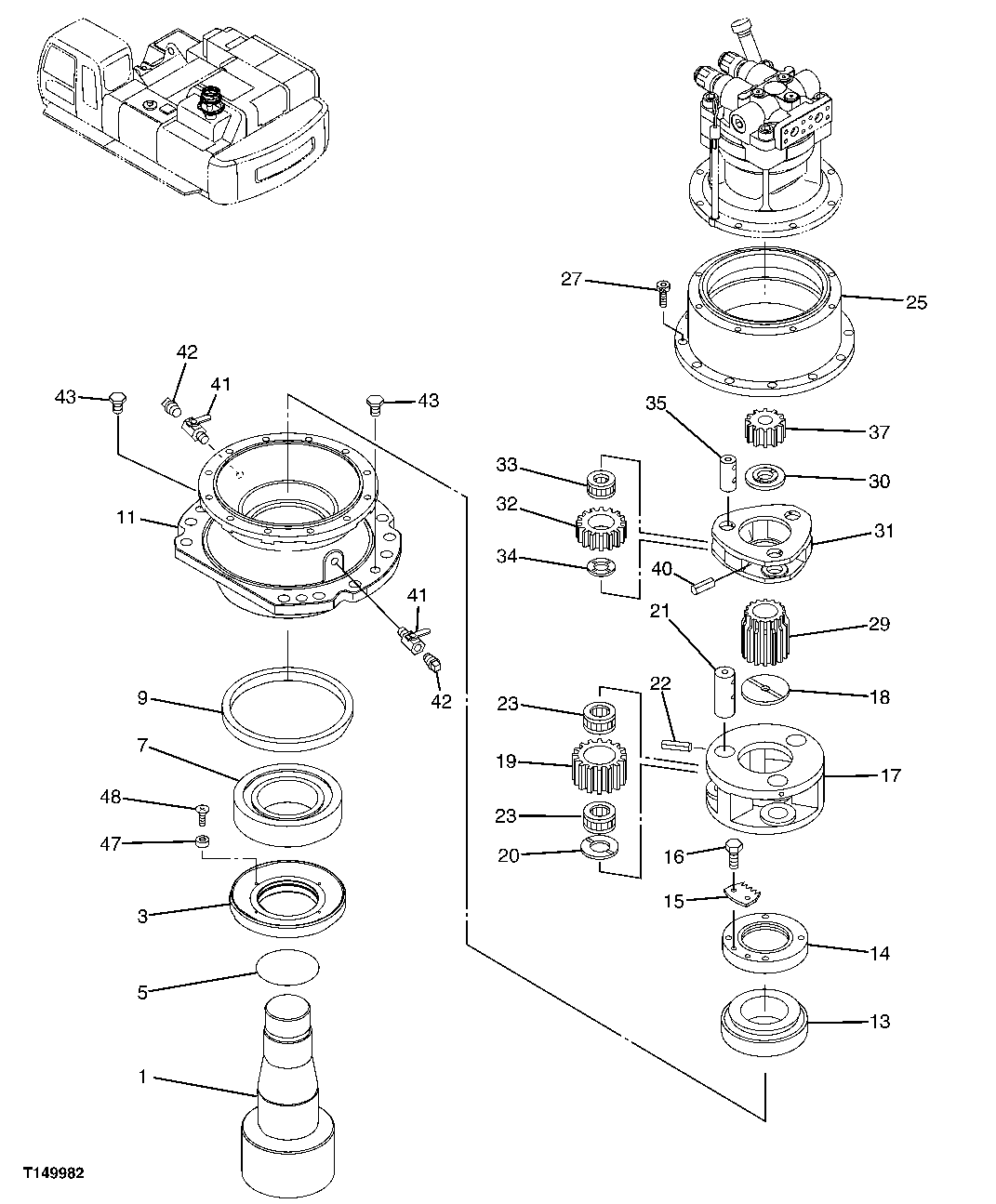

Запчасти John Deere 00C LC 253 - SWING MOTOR AND GEARBOX COMPONENTS 4360 HYDRAULICS

0

9209335

Transmission

LH

1шт.

9191671

Transmission

RH

1шт.

1

2044936

Shaft

1шт.

3

3088671

Sleeve

1шт.

5

A811140

O-Ring

1шт.

7

4438312

Cylindrical Roller Bearing

1шт.

9

4424982

Seal

(WARM AND MILD CLIMATE APPLICATIONS)

1шт.

4604377

Seal

( 4412061 NLA) (COLD CLIMATE APPLICATIONS)

1шт.

11

1028151

Housing

1шт.

13

4402481

Cylindrical Roller Bearing

SUB FOR TH4402481

1шт.

14

FYB00001147

Nut

SUB FOR 3088744

1шт.

15

4415042

Plate

1шт.

16

19M8324

Cap Screw

M10 X 16

2шт.

17

1028147

Planet Pinion Carrier

1шт.

18

4194454

Washer

SUB FOR TH111267

1шт.

19

3088608

Gear

3шт.

20

4452475

Plate

3шт.

21

4488904

Pin

SUB FOR 4336925, AT213868

3шт.

22

3M6402

Spring Pin

3шт.

23

4269454

Needle Bearing

SUB FOR AT202596

6шт.

25

1028141

Ring Gear

1шт.

27

M341840

Bolt

12шт.

29

3084656

Sun Gear

1шт.

30

4434708

Thrust Washer

1шт.

31

1028149

Planet Pinion Carrier

1шт.

32

3088656

Gear

3шт.

33

TH111232

Cylindrical Roller Bearing

3шт.

34

4430667

Washer

SUB FOR TH4430667

3шт.

35

4144558

Bushing

SUB FOR TH102298

3шт.

37

3084649

Sun Gear

1шт.

40

34M7014

Spring Pin

5 X 60 mm

3шт.

41

4194712

Drain Valve

SUB FOR TH108278

2шт.

42

94-2024

Fitting Plug

SUB FOR TH101292

2шт.

43

4445354

Fitting Plug

2шт.

47

4422479

Magnet

SUB FOR TH4422479

4шт.

48

M470513

Cap Screw

SUB FOR TH101156

4шт.
