Запчасти John Deere 00C LC 246 - HYDRAULIC ARM CYLINDER 3365 HYDRAULIC CYLINDERS

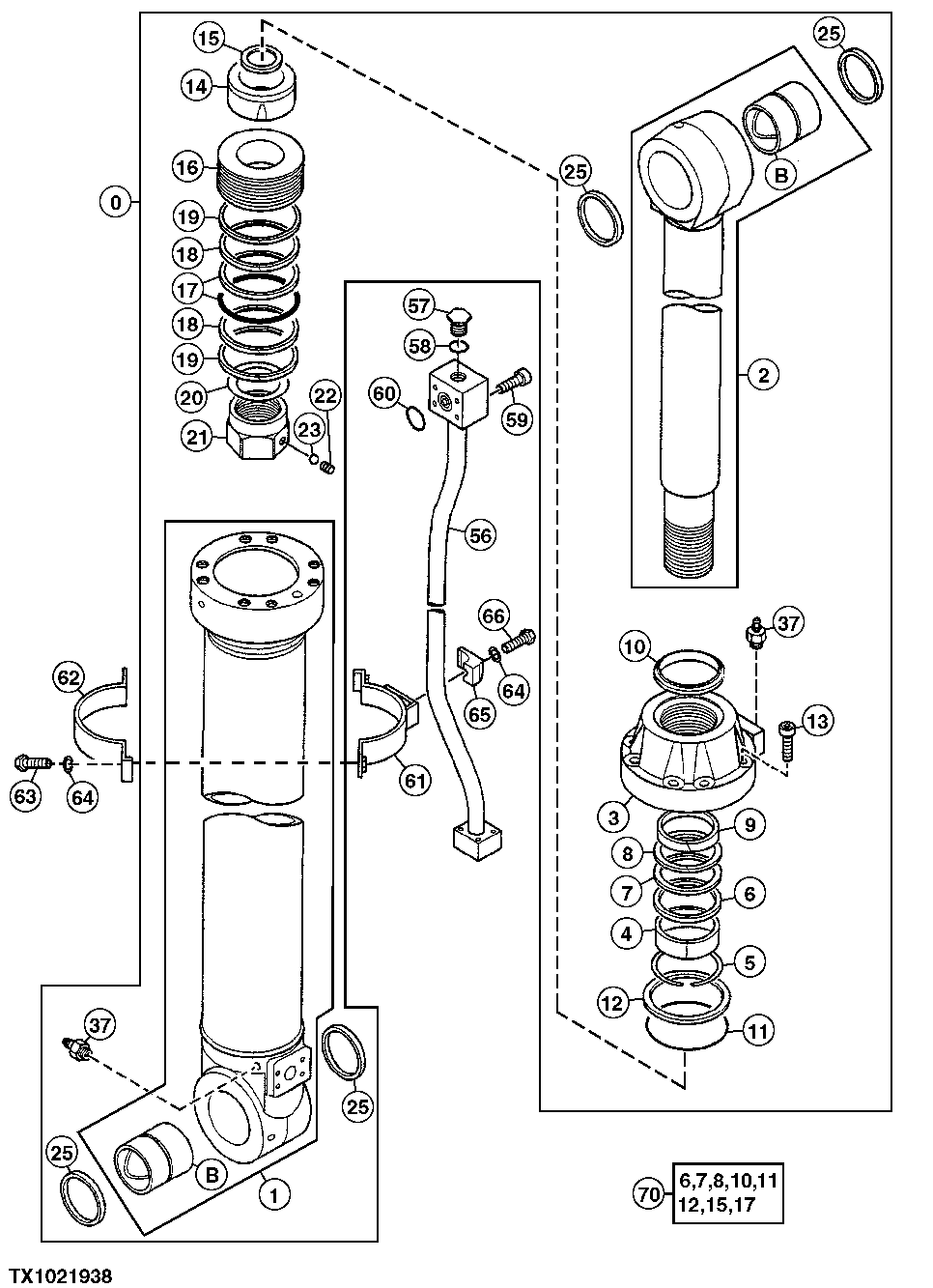

Схема запчастей John Deere 00C LC - 246 - HYDRAULIC ARM CYLINDER 3365 HYDRAULIC CYLINDERS

Артикул

Название

Примечание

Количество

0

4354803JEX

Hydraulic Cylinder Reman

REMANUFACTURED SUB FOR TH4354803

1шт.

1

0645001

Hydraulic Cylinder Barrel

SUB FOR TH0645001

1шт.

1B

4660856

Bushing

SUB FOR TH0645002

1шт.

2

0645003

Rod

SUB FOR TH0645003

1шт.

2B

4660856

Bushing

SUB FOR TH0645002

1шт.

3

0645004

Hydr. Cylinder Rod Guide

SUB FOR TH0645004

1шт.

4

0379806

Bushing

SUB FOR TH0379806

1шт.

5

0191415

Snap Ring

SUB FOR TH0191415

1шт.

6

0417405

Ring

SUB FOR TH0417405

1шт.

7

4091814

Ring

SUB FOR TH4094949

1шт.

8

0242505

Back-Up Ring

SUB FOR TH0242505

1шт.

9

0417406

Ring

SUB FOR TH0417406, 4S01015 OR 4S00759

1шт.

10

0977905

Ring

SUB FOR 0242506 OR 4438196

1шт.

11

AT122160

O-Ring

189.300 X 5.700 mm (7-29/64" X 0.224")

1шт.

12

0257007

Ring

SUB FOR TH0257007 OR 4S00084

1шт.

13

4104472

Bolt

SUB FOR AT132322

8шт.

14

0645005

Bearing

SUB FOR TH0645005

1шт.

15

0645006

Seal

SUB FOR TH0645006 OR 4S01018

1шт.

16

0645007

Piston

SUB FOR TH0645007

1шт.

17

0257010

Ring

SUB FOR TH0257010 OR 4S00085

1шт.

18

0645008

Ring

SUB FOR TH0645008 OR 4S00856

2шт.

19

4199817

Ring

SUB FOR TH4199817 OR 4S00098

2шт.

20

0379813

Shim

SUB FOR TH0379813

1шт.

21

0379814

Nut

SUB FOR TH0379814

1шт.

22

0379815

Set Screw

SUB FOR TH0379815

1шт.

23

0109124

Ball

SUB FOR TH0109124

1шт.

25

0420111

Ring

SUB FOR AT201579 OR 4S00853

4шт.

37

0643016

Bleed Valve

SUB FOR TH0643016

2шт.

56

0902205

Line

ALSO ORDER (4) 19M8734; SUB FOR 0645009

1шт.

57

0379823

Plug

SUB FOR TH0379823

1шт.

58

985098

O-Ring

31.700 X 3.500 mm (1.248" X 0.138") SUB FOR TH102528

1шт.

59

19M8803

Screw

M14 X 90 SUB FOR AT132328

4шт.

19M8734

Screw

M14 X 45 USE WITH 0902205

4шт.

60

AT264254

O-Ring

SUB FOR AT132423 OR 955612

1шт.

61

0417413

Clamp

SUB FOR TH0417413

1шт.

62

0417414J

Half Clamp

SUB FOR 0417414 OR TH0417414

1шт.

63

19M9169

Cap Screw

M14 X 50 SUB FOR P61969 OR TH0379919

2шт.

64

12H317

Lock Washer

9/16"

3шт.

65

0972307

Clamp

SUB FOR AT132325, 0353016 OR 0353016J

1шт.

66

19M4789

Cap Screw

M14 X 80

1шт.

70

4438684

Seal Kit

SUB FOR 4348854 AND 4402384

1шт.

Выбрано товаров: 41
