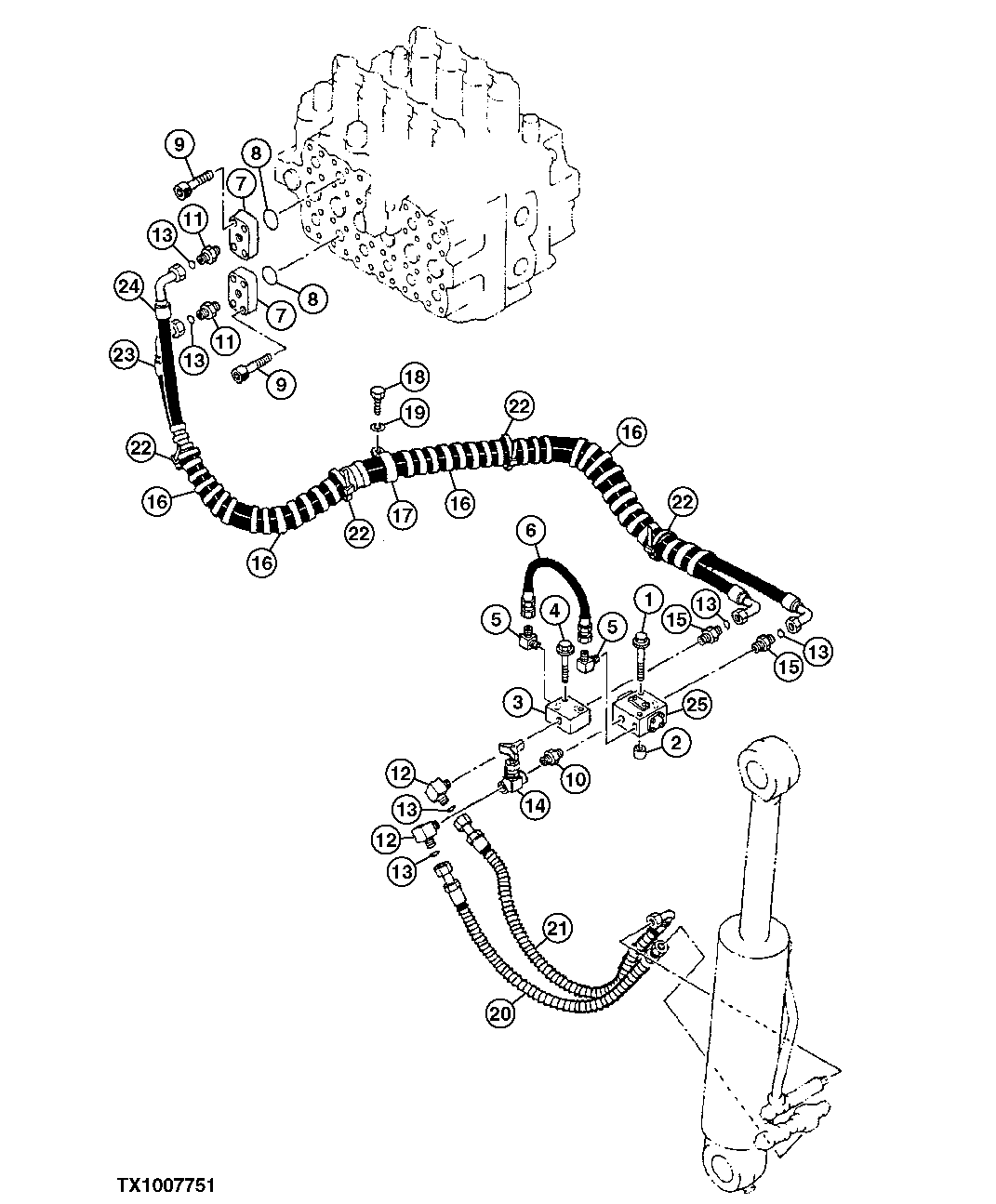

Запчасти John Deere 00C LC 244 - HIGH PRESSURE HOSES (COUNTERWEIGHT REMOVAL DEVICE) 3363 LINES, HOSES AND FITTINGS

1

19M7875

Cap Screw

M10 X 70

2шт.

12M7066

Lock Washer

10 mm

2шт.

2

4131346

Spacer

2шт.

3

4240862

Manifold

1шт.

4

19M8655

Cap Screw

M10 X 55

2шт.

12M7066

Lock Washer

10 mm

2шт.

5

4154656

Elbow Fitting

2шт.

6

4209727

Hydraulic Hose

1шт.

7

4395369

Flange Fitting

1шт.

8

T72216

O-Ring

37.694 X 3.531 mm (1-31/64" X 0.139")

2шт.

9

19M8734

Screw

M14 X 45

8шт.

10

94-1703

Adapter Fitting

1шт.

11

4189602

Fitting

2шт.

4506418

O-Ring

1шт.

12

4274178

Elbow Fitting

1шт.

13

T77857

O-Ring

12.421 X 1.778 mm (0.489" X 0.070")

6шт.

14

4220806

Flow Control Hyd. Valve

1шт.

15

4217265

Adapter Fitting

2шт.

16

Hose Guard

(MAKE FROM XHG-075, CUT TO LENGTH ) (SUB FOR 4044420 ( 4327294 NLA))

5шт.

17

R50454

Clamp

(SUB FOR 4192034)

4шт.

18

19M8324

Cap Screw

M10 X 16

1шт.

19

12M7066

Lock Washer

10 mm

1шт.

20

4357742

Hydraulic Hose

1шт.

21

4357727

Hydraulic Hose

1шт.

22

H77698

Tie Band

4шт.

23

4464143

Hydraulic Hose

1шт.

24

4464147

Hydraulic Hose

1шт.

25

4240863

Flow Control Hyd. Valve

1шт.
