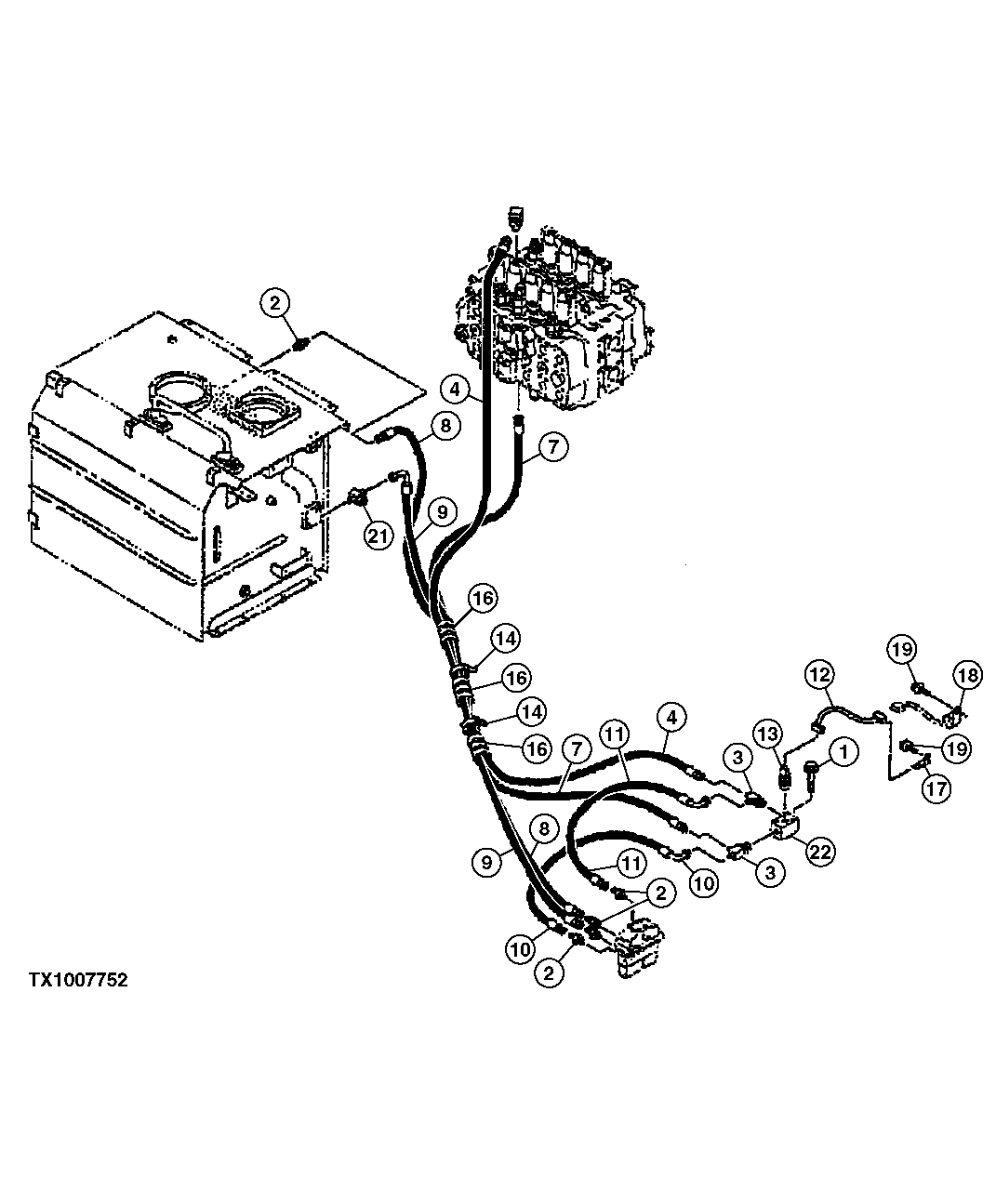

Запчасти John Deere 00C LC 243 - PILOT HOSES COUNTERWEIGHT REMOVAL DEVICE 3363 LINES, HOSES AND FITTINGS

1

19M8655

Cap Screw

M10 X 55

2шт.

12M7066

Lock Washer

10 mm

2шт.

2

A852123

Adapter Fitting

5шт.

M800650

Packing

1шт.

3

A852423

Tee Fitting

2шт.

M800650

Packing

1шт.

4

4436856

Hydraulic Hose

1шт.

7

4436854

Hydraulic Hose

1шт.

8

4409086

Hydraulic Hose

2шт.

9

4375560

Hydraulic Hose

(SUB FOR 4419040)

1шт.

10

4332940

Hydraulic Hose

1шт.

11

4432811

Hydraulic Hose

1шт.

12

4456689

Wiring Harness

1шт.

13

4436535

Sensor

1шт.

14

H77698

Tie Band

2шт.

16

Hose Guard

(MAKE FROM XHG-075, CUT TO LENGTH ) (SUB FOR 4044420 ( 4327294 NLA))

3шт.

17

4257159

Bracket

1шт.

18

4190261

Clip

1шт.

19

19M7938

Cap Screw

M10 X 20

2шт.

12M7066

Lock Washer

10 mm

2шт.

21

A852523

Tee Fitting

1шт.

M800650

Packing

1шт.

22

4195759

Flow Control Hyd. Valve

Shuttle

1шт.
