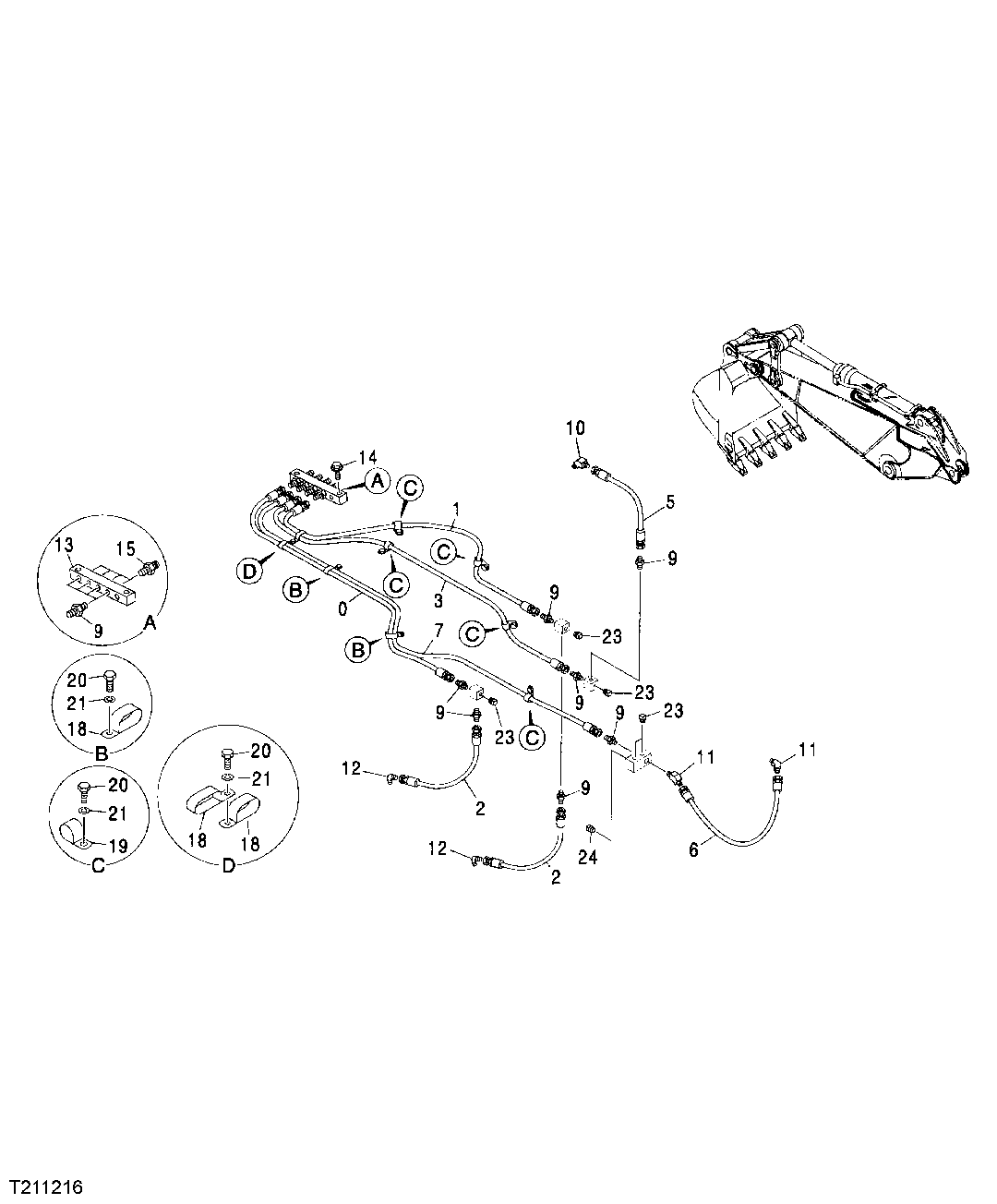

Запчасти John Deere 00C LC 239 - LUBRICATION HOSES (SHORT ARM) 3363 LINES, HOSES AND FITTINGS

0

4266675

Hose

(SUB FOR 4308677)

1шт.

1

4266675

Hose

(SUB FOR 4308677)

1шт.

2

4203161

Hydraulic Hose

(SUB FOR 4214424)

2шт.

3

4262279

Hose

1шт.

5

4442331

Hydraulic Hose

(SUB FOR 4226311)

1шт.

6

4358776

Hydraulic Hose

1шт.

7

4258882

Hose

1шт.

9

4154651

Adapter Fitting

11шт.

10

4154656

Elbow Fitting

1шт.

11

4154655

Elbow Fitting

2шт.

12

4154656

Elbow Fitting

2шт.

13

4274903

Junction Block

1шт.

14

19M7358

Cap Screw

M10 X 40 (SUB FOR J011040)

2шт.

15

JD7769

Lubrication Fitting

(SUB FOR TH100364)

4шт.

18

4192018

Clip

4шт.

19

4190261

Clip

5шт.

20

19M8324

Cap Screw

M10 X 16 (SUB FOR J901016)

8шт.

21

12M7066

Lock Washer

10 mm (SUB FOR A590910)

8шт.

23

T115963

Fitting Plug

(SUB FOR 94-2021)

5шт.

24

M800462

Plug

(SUB FOR 94-2022)

1шт.
